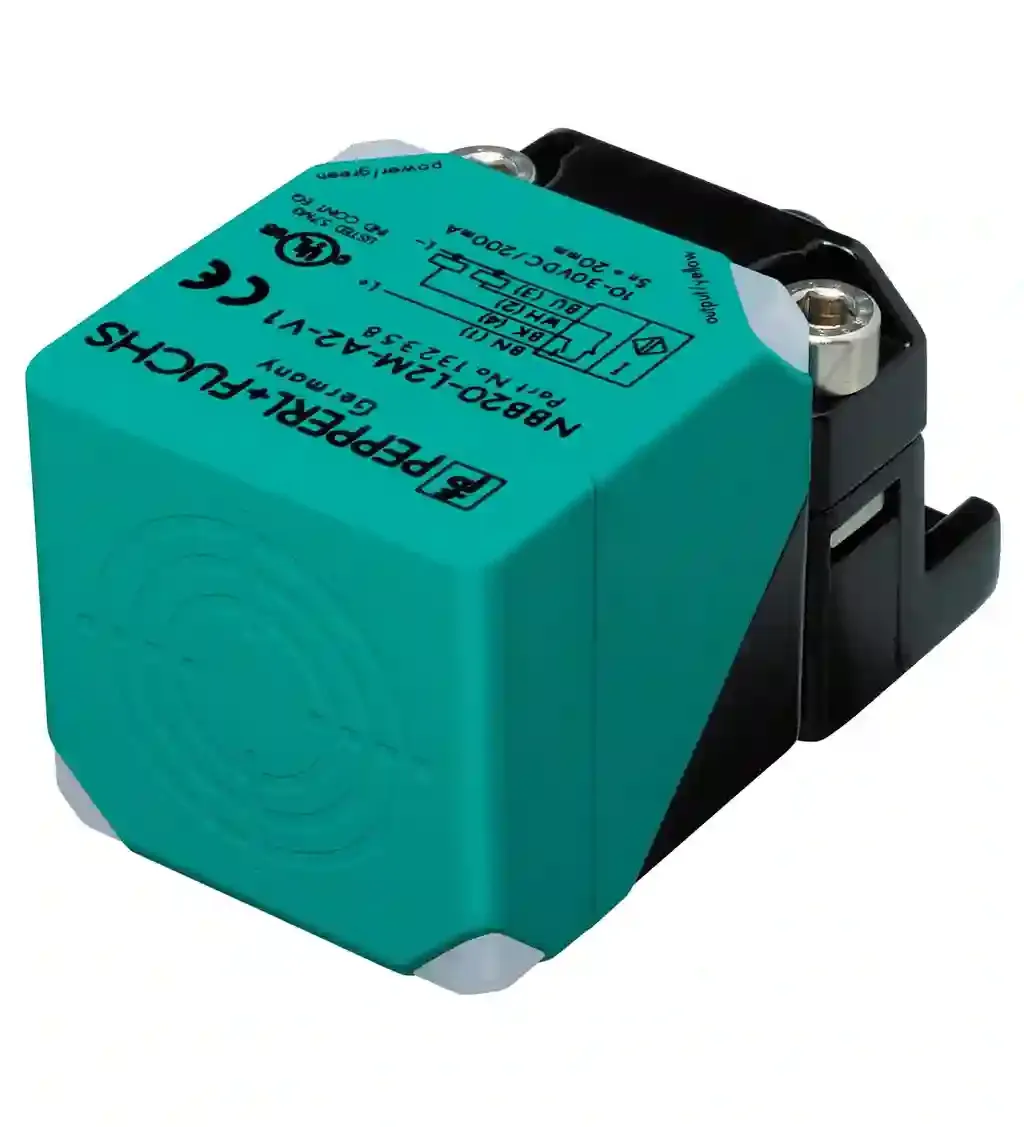

Pepperl Fuchs NBB20-L2M-E2-V1

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: VariKont L ®, Series: VariKont L ®, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: PA-GF35metal base Xylan coatedmetal mounting flange Xylan coated., Degree of protection: IP69K, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 20 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 16.2 mm. Actual operating distance: 18 … 22 mm. Reduction factor rAl: 0.33. Reduction factor rCu: 0.31. Reduction factor r304: 0.74. Reduction factor rBrass: 0.41. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 440 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.5 mA. No-load supply current: ≤ 20 mA. Time delay before availability: 80 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 1289 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Protection class: II. Rated insulation voltageUi253 VRated impulse withstand voltageUimp4000 V: Ui. Rated insulation voltage: 253 V. Rated impulse withstand voltage: 4000 V. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 85 °C (-13 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug. Housing material: PA-GF35metal base Xylan coatedmetal mounting flange Xylan coated.. Sensing face: PA-GF35. Degree of protection: IP69K. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 215 g. Dimensions: . Height40 mmWidth40 mmLength67 mm: . Height: 40 mm. Width: 40 mm. Length: 67 mm
