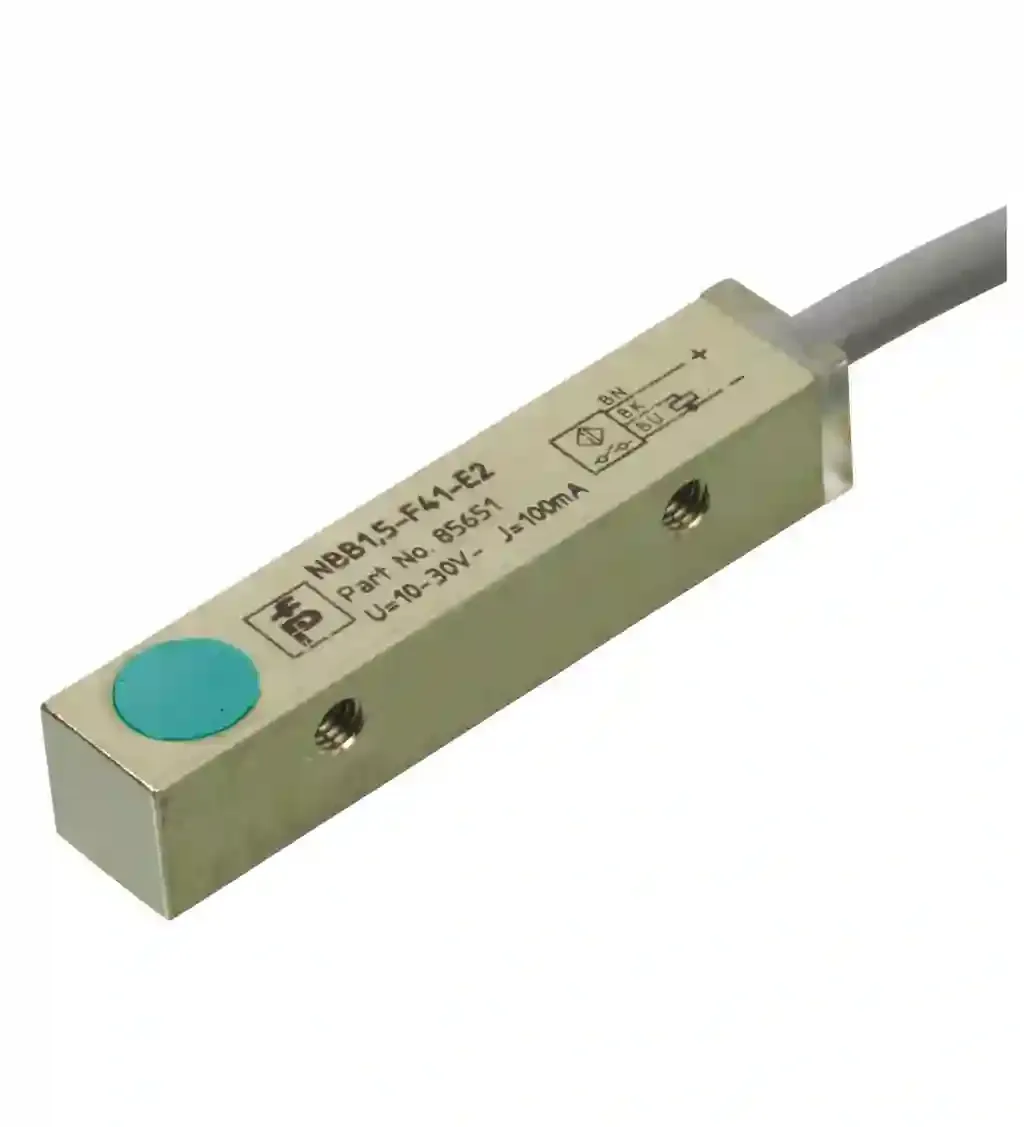

Pepperl Fuchs NBB1,5-F41-E2-5M

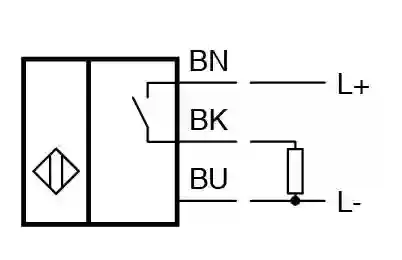

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 1.215 mm. Reduction factor rAl: 0.45. Reduction factor rCu: 0.35. Reduction factor r304: 0.75. Output type: 3-wire. Operating voltage: 10 … 30 V. Switching frequency: 0 … 1500 Hz. Hysteresis: typ. 3 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 … 100 mA. Off-state current: 0 … 0.5 mA typ.. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 20 ms. Switching state indicator: LED, yellow. MTTFd: 1528 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm + 0.3 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.14 mm2LengthL5 m: . Wire end ferrules: yes. Cable diameter: 3 mm + 0.3 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.14 mm2. Length: 5 m. Mass: 13.5 g. Dimensions: . Height8 mmWidth8 mmLength40 mm: . Height: 8 mm. Width: 8 mm. Length: 40 mm
