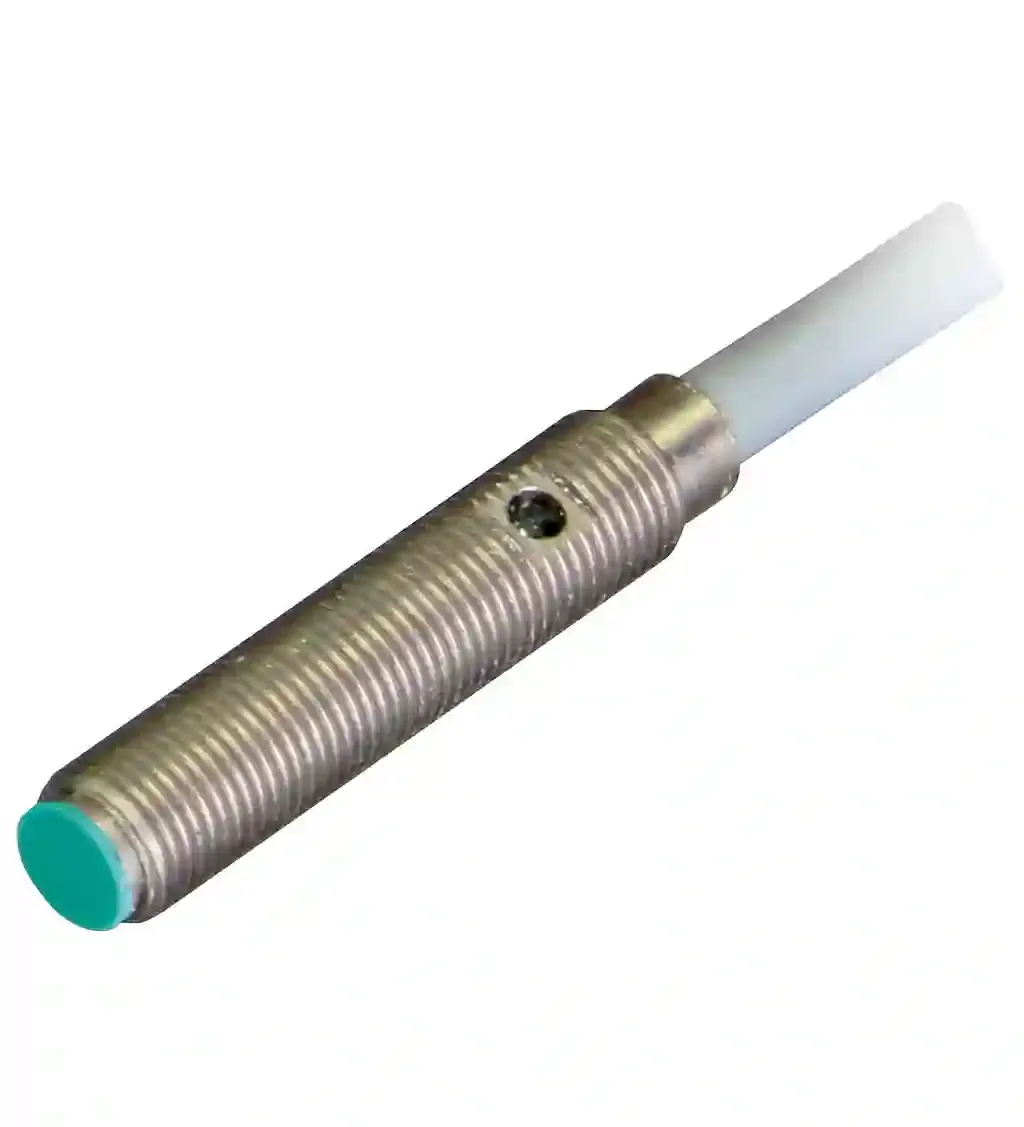

Pepperl Fuchs NBB1,5-5GM25-E2-0,6M-V3

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M5, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M8 x 1, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 1.215 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.34. Reduction factor r304: 0.78. Reduction factor rBrass: 0.51. Output type: 3-wire. Operating voltage: 10 … 30 V. Switching frequency: 0 … 3000 Hz. Hysteresis: 1 … 15 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. Voltage drop: ≤ 3 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.1 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 10 mA. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: fixed cable with plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: POM. Degree of protection: IP67. Connector: . ThreadingM8 x 1Tightening torque≤ 0.4 NmNumber of pins3: . Threading: M8 x 1. Tightening torque: ≤ 0.4 Nm. Number of pins: 3. Cable: . Cable diameter3 mm – 0.2 mmBending radius> 12 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.14 mm2LengthL0.6 m: . Cable diameter: 3 mm – 0.2 mm. Bending radius: > 12 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.14 mm2. Length: 0.6 m. Mass: 15 g. Dimensions: . Length25 mmDiameter5 mm: . Length: 25 mm. Diameter: 5 mm
