Pepperl Fuchs NBB15-30GM50-WS

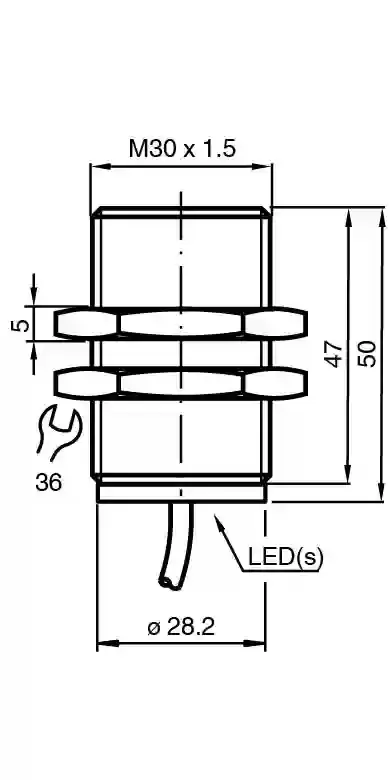

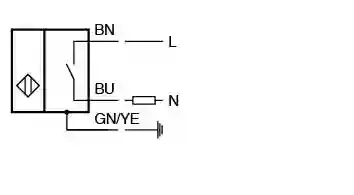

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: quasi flush, Output polarity: AC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: AC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 15 mm. Installation: quasi flush. Output polarity: AC. Assured operating distance: 0 … 12.15 mm. Actual operating distance: 13.5 … 16.5 mm. Reduction factor rAl: 0.33. Reduction factor rCu: 0.28. Reduction factor r304: 0.81. Output type: 2-wire. Operating voltage: 20 … 253 V. Switching frequency: 0 … 20 Hz. Hysteresis: 1 … 10 % typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Voltage drop: 50 mA); < 8 V (IL 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.75 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6.4 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.75 mm2. Length: 2 m. Dimensions: . Length50 mmDiameter30 mm: . Length: 50 mm. Diameter: 30 mm. Note: 1) In the temperature range below 0 °C, permissible operating voltage Ub 80…253 V Safety fuse ≤ 0.3 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.
