Pepperl Fuchs NBB15-30GM50-WO
Inductive sensor. Switching function: Normally closed (NC), Output type: Two-wire, Installation: quasi flush, Output polarity: AC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive sensor. Switching function: Normally closed (NC), Output type: Two-wire, Installation: quasi flush, Output polarity: AC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: AC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: Two-wire. Rated operating distance: 15 mm. Installation: quasi flush. Output polarity: AC. Assured operating distance: 0 … 12.15 mm. Actual operating distance: 13.5 … 16.5 mm. Reduction factor rAl: 0.33. Reduction factor rCu: 0.28. Reduction factor r304: 0.81. Output type: 2-wire. Operating voltage: 20 … 253 V. Switching frequency: 0 … 20 Hz. Hysteresis: 1 … 10 % typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Voltage drop: 50 mA); < 8 V (IL 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.75 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6.4 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.75 mm2. Length: 2 m. Dimensions: . Length50 mmDiameter30 mm: . Length: 50 mm. Diameter: 30 mm. Note: 1) In the temperature range below 0 °C, permissible operating voltage Ub 80…253 V Safety fuse ≤ 0.3 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.
Specification
General specifications
| Switching function | Normally closed (NC) |
|---|---|

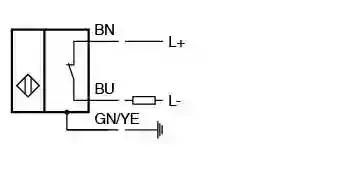

| Output type | Two-wire |
| Rated operating distance | 15 mm |
| Installation | quasi flush |
| Output polarity | AC |
| Assured operating distance | 0 ... 12.15 mm |
| Actual operating distance | 13.5 ... 16.5 mm |
| Reduction factor rAl | 0.33 |
| Reduction factor rCu | 0.28 |
| Reduction factor r304 | 0.81 |
| Output type | 2-wire |
Nominal ratings
| Operating voltage | 20 ... 253 V |
|---|---|
| Switching frequency | 0 ... 20 Hz |
| Hysteresis | 1 ... 10 % typ. 5 % |
| Reverse polarity protection | reverse polarity tolerant |
| Voltage drop | < 5 V (IL > 50 mA); < 8 V (IL < 50 mA) |
| Momentary current(20 ms, 0.1 Hz) | 0 ... 1600 mA |
| Operating current | 5 ... 200 mA |
| Off-state current | 0 ... 1.7 mA |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity | |
|---|---|
| StandardsEN IEC 60947-5-2 | |
| Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Enclosure Type Rating: Type 1 |
|---|---|
| CSA approval | cCSAus Listed, General Purpose |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
|---|
Mechanical specifications
| Connection type | cable |
|---|---|
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable | |
| Wire end ferrulesyesCable diameter6.4 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.75 mm2LengthL2 m | |
| Wire end ferrules | yes |
| Cable diameter | 6.4 mm ± 0.2 mm |
| Bending radius | > 10 x cable diameter |
| Material | PVC |
| Color | grey |
| Number of cores | 3 |
| Core cross section | 0.75 mm2 |
| Length | 2 m |

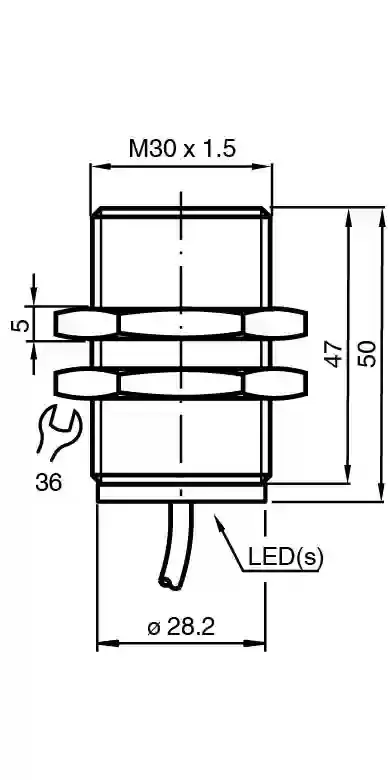

| Dimensions | |
| Length50 mmDiameter30 mm | |
| Length | 50 mm |
| Diameter | 30 mm |
| Note | 1) In the temperature range below 0 °C, permissible operating voltage Ub 80...253 V Safety fuse ≤ 0.3 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. |
