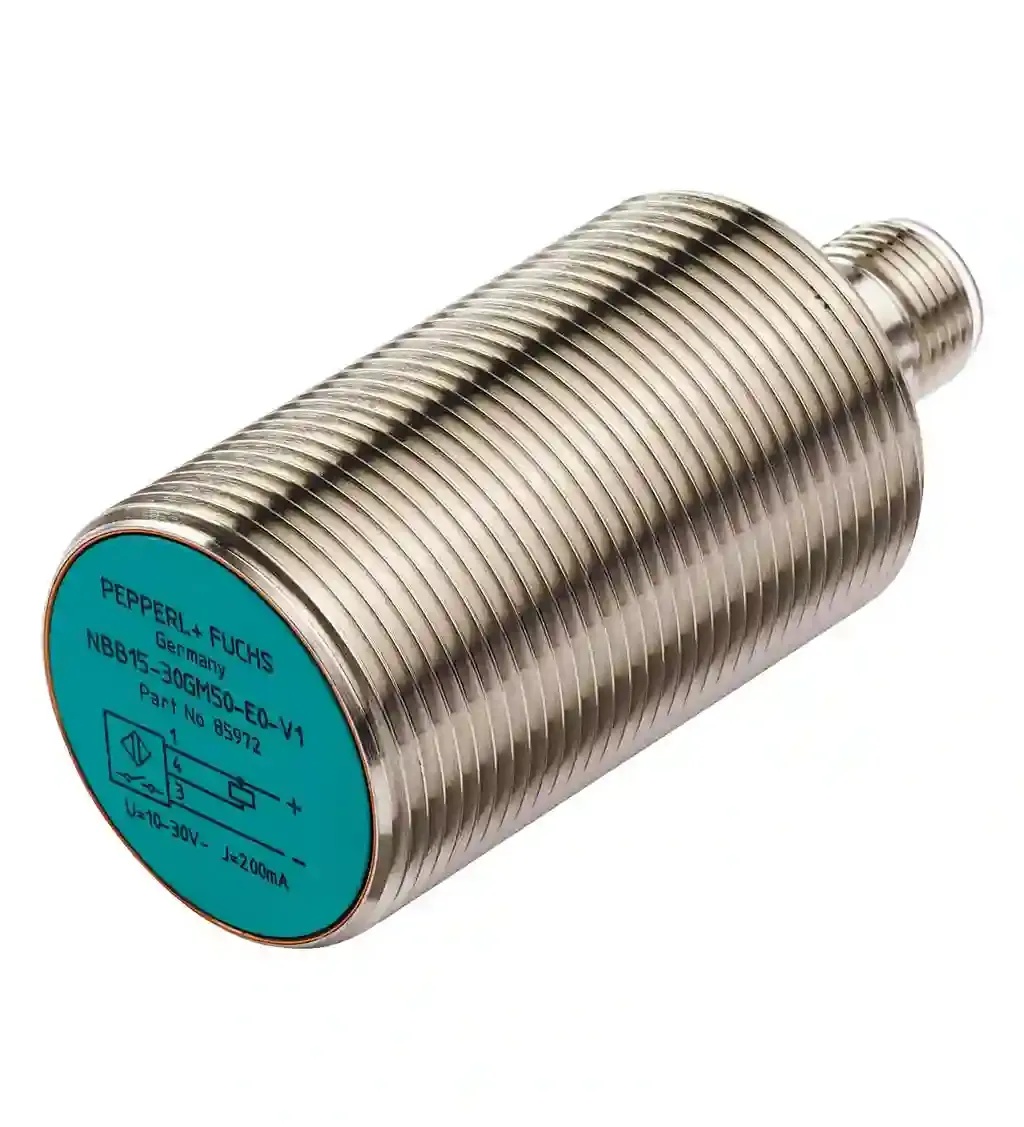

Pepperl Fuchs NBB15-30GM50-EI-V1-M1

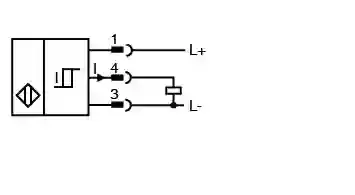

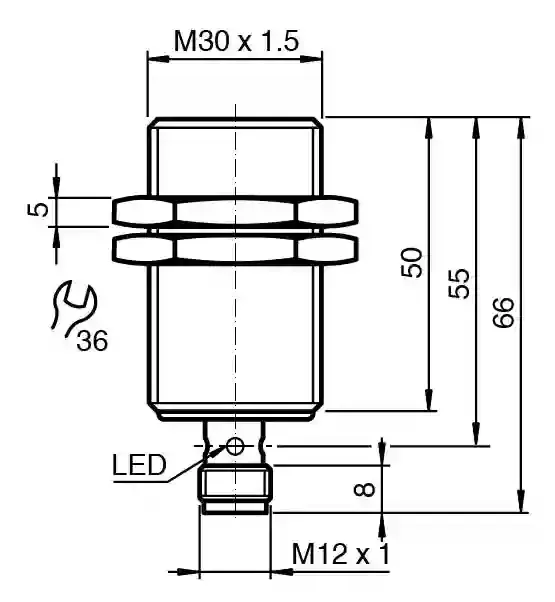

Inductive sensor. Extended temperature range, Output type: Digital current output, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 9 … 30 V DC, Type of voltage: DC, Ambient temperature: -40 … 85 °C (-40 … 185 °F) , Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP68 / IP69K, Threading: M12 x 1. Output type: Digital current output. Rated operating distance: 15 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 12.15 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 45 mm x 45 mm x 1 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.4. Reduction factor r304: 0.7. Reduction factor rBrass: 0.5. Output type: 3-wire. Operating voltage: 9 … 30 V DC. Switching frequency: 0 … 700 Hz. Hysteresis: 2 … 15 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. Temperature drift: ≤ 10 %. Time delay before availability: ≤ 5 ms. Load resistor: 100 … 250 Ohm. Switching state indicator: LED, yellow. MTTFd: 1556 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Output value: object detected: 10 mA ± 1 mA object not detected: 5 mA ± 1 mA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 30 V DC Output Switching Current: 10 mA. E1 Type approval: 10R-04. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP68 / IP69K. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Mass: 140 g. Dimensions: . Length65 mmDiameter30 mm: . Length: 65 mm. Diameter: 30 mm. Scope of delivery: 2 self locking nuts in scope of delivery
