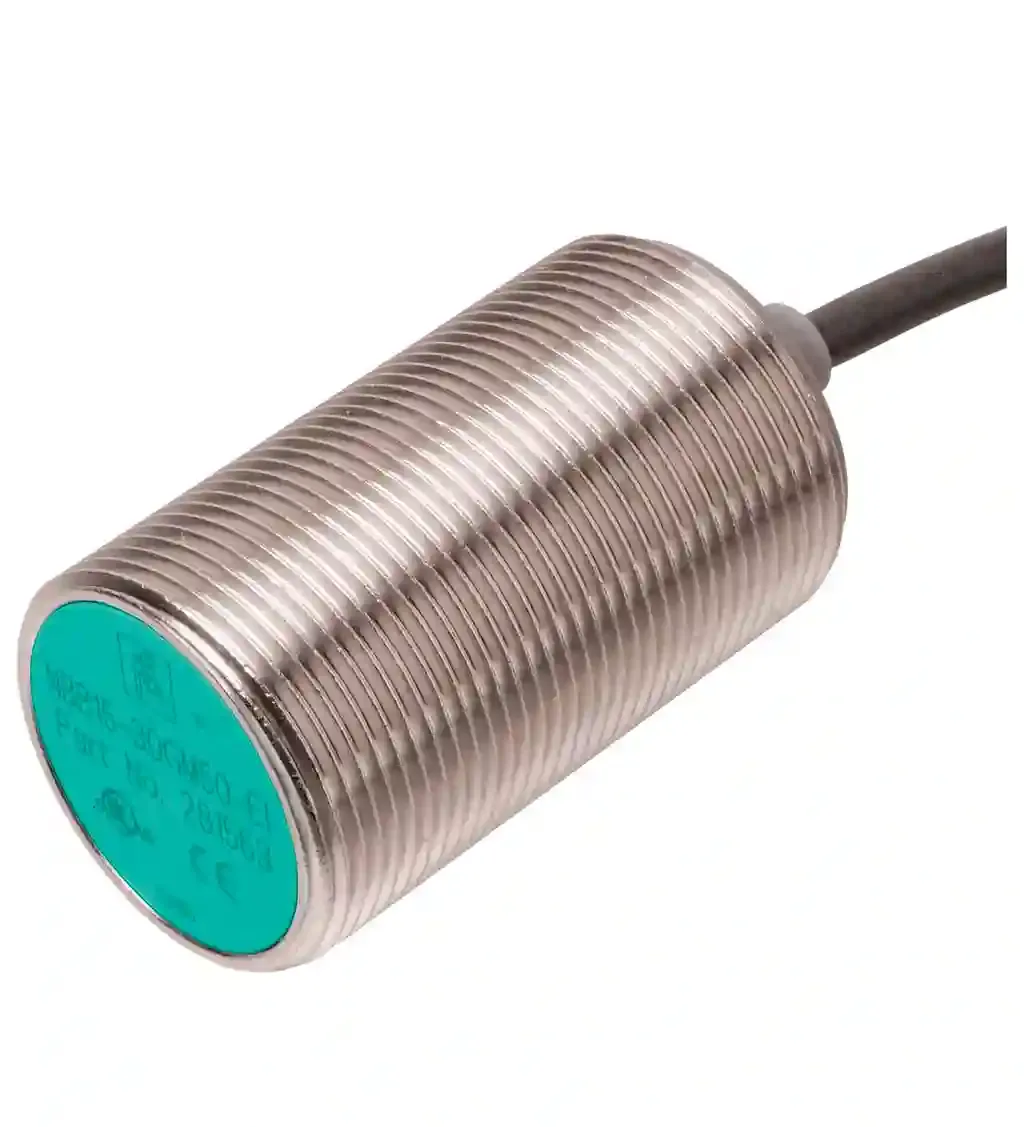

Pepperl Fuchs NBB15-30GM50-EI-M1

Inductive sensor. Extended temperature range, Output type: Digital current output, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 9 … 30 V DC, Type of voltage: DC, Ambient temperature: -40 … 85 °C (-40 … 185 °F) , Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP68 / IP69K, Material: PUR. Output type: Digital current output. Rated operating distance: 15 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 12.15 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 45 mm x 45 mm x 1 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.4. Reduction factor r304: 0.7. Reduction factor rBrass: 0.5. Output type: 3-wire. Operating voltage: 9 … 30 V DC. Switching frequency: 0 … 700 Hz. Hysteresis: 2 … 15 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. Temperature drift: ≤ 10 %. Time delay before availability: ≤ 5 ms. Load resistor: 100 … 250 Ohm. Switching state indicator: LED, yellow. MTTFd: 1556 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Output value: object detected: 10 mA ± 1 mA object not detected: 5 mA ± 1 mA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. E1 Type approval: 10R-04. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP68 / IP69K. Cable: . Wire end ferrulesyesCable diameter4.3 mm ± 0.1 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.3 mm ± 0.1 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Mass: 174 g. Dimensions: . Length50 mmDiameter30 mm: . Length: 50 mm. Diameter: 30 mm. Scope of delivery: 2 self locking nuts in scope of delivery
