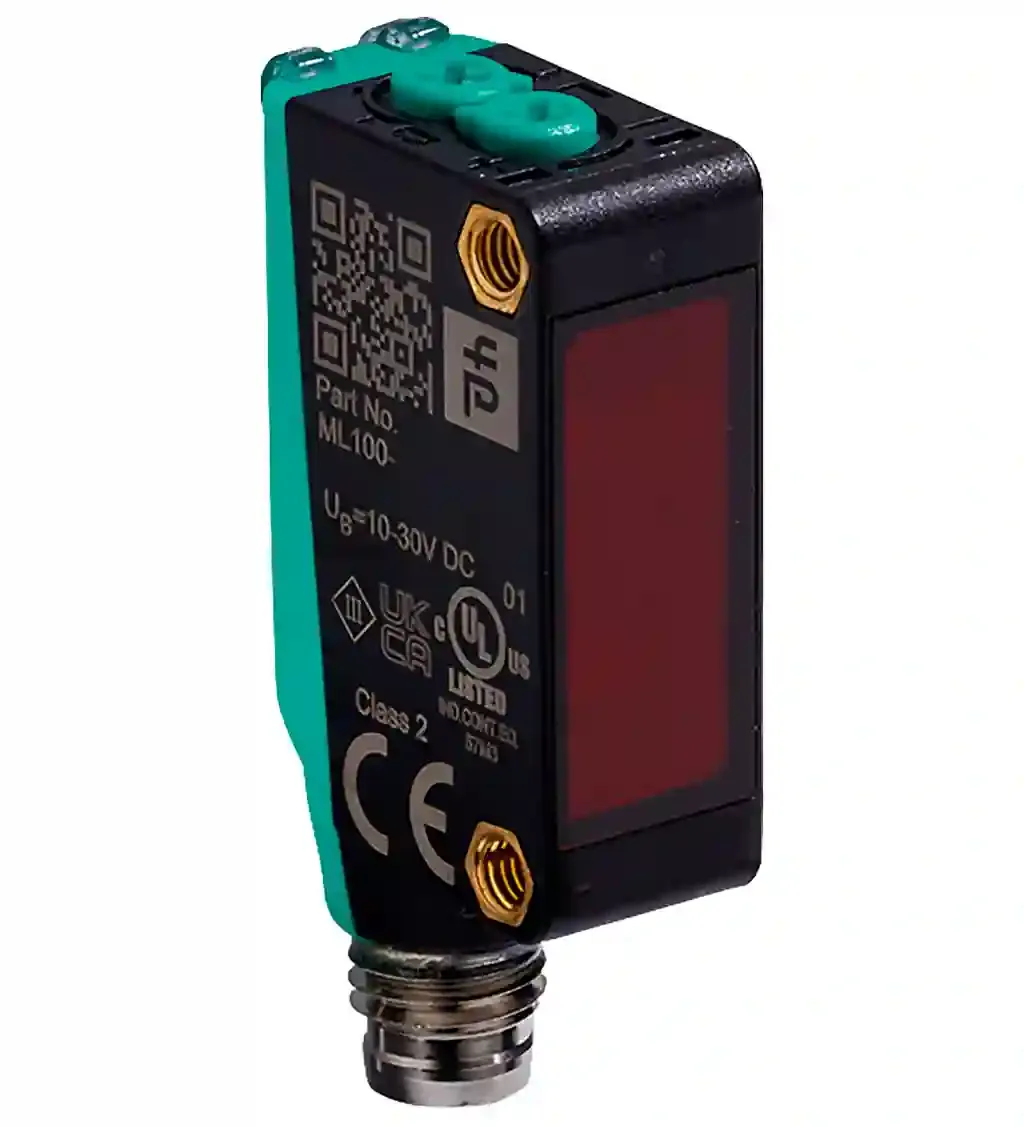

Pepperl Fuchs ML100-8-W-200-RT/95/103

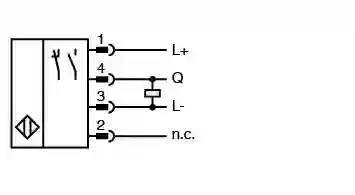

Diffuse mode sensor. Diffuse mode sensor with rectangular light spot for clear object detection, 200 mm detection range, red light, light/dark on, sensitivity adjuster, DC version, PNP output, M8 plug, Miniature design, Easy to use, Very bright, highly visible light spot, Full metal thread mounting, Highly visible LEDs for Power ON and switching state. Detection range: 0 … 200 mm. Adjustment range: 15 … 200 mm. Reference target: standard white , 200 mm x 200 mm. Light source: LED. Light type: modulated visible red light. Polarization filter: no. Diameter of the light spot: approx. 170 mm at a distance of 200 mm. Optical face: frontal. Ambient light limit: EN 60947-5-2:2007+A1:2012. MTTFd: 860 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow, lights up with receiver lit. Control elements: sensitivity adjustment. Control elements: Light-on/dark-on changeover switch. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 20 mA. Switching type: The switching type of the sensor is adjustable. The default setting is: light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 … 60 °C (-22 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: plug M8 x 1 , 4-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 10 g. Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height31 mmWidth11 mmDepth20 mm: . Height: 31 mm. Width: 11 mm. Depth: 20 mm
