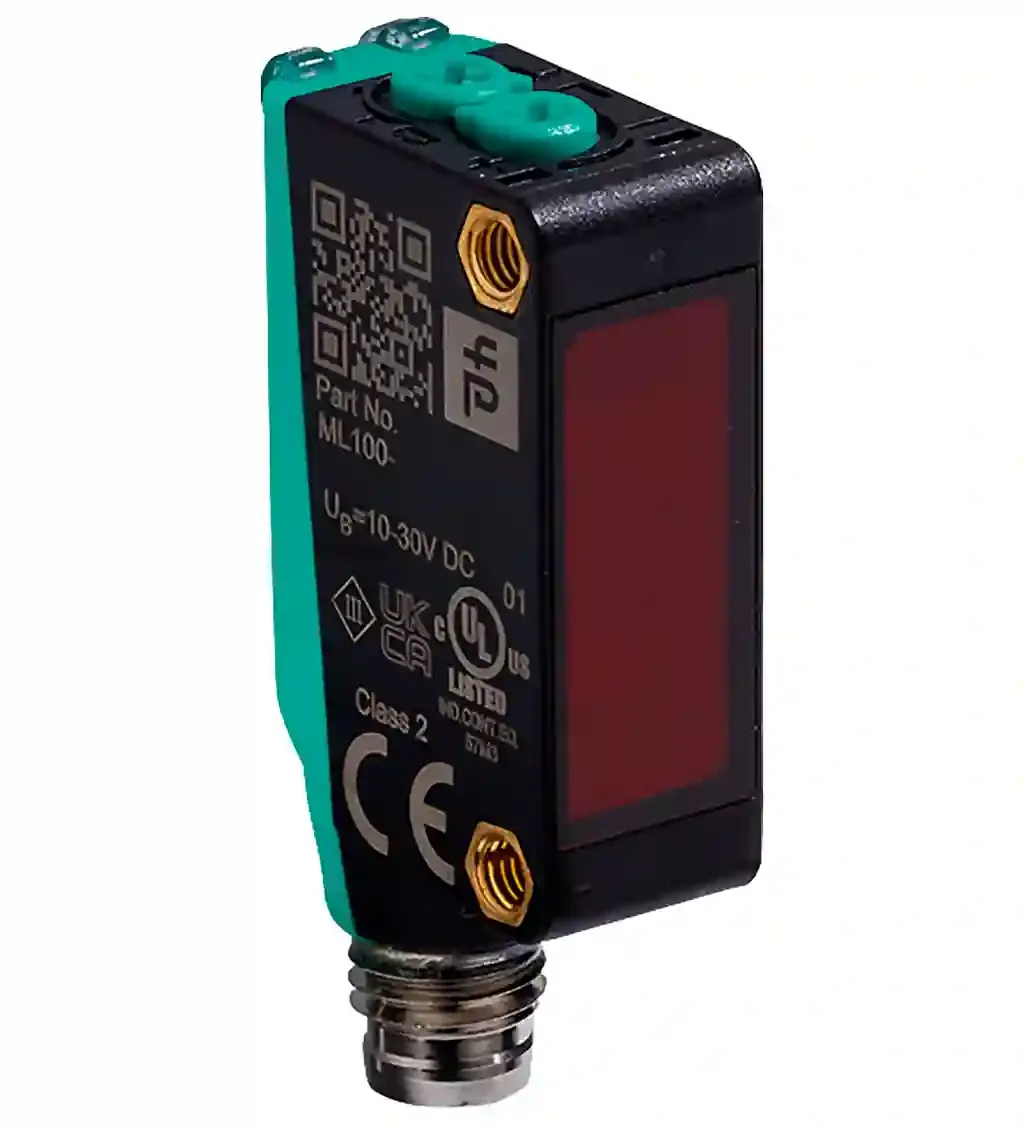

Pepperl Fuchs ML100-8-H-350-RT/95/103

Background suppression sensor. Triangulation sensor with background suppression, 350 mm adjustable detection range, red light, light/dark on, pnp output, M8 plug 4-pin, Miniature design, Easy to use, Very bright, highly visible light spot, Full metal thread mounting, Highly visible LEDs for Power ON and switching state. Detection range: 5 … 350 mm. Detection range min.: 5 … 30 mm. Detection range max.: 5 … 350 mm. Adjustment range: 30 … 350 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light. Polarization filter: no. Black-white difference (6 %/90 %): < 18 % at 350 mm. Diameter of the light spot: approx. 20 mm at a distance of 350 mm. Opening angle: approx. 4 °. Optical face: frontal. Ambient light limit: EN 60947-5-2:2007+A1:2012. MTTFd: 860 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow: lights when object is detected. Control elements: Sensing range adjuster. Control elements: Light-on/dark-on changeover switch. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 20 mA. Switching type: The switching type of the sensor is adjustable. The default setting is: light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: 1 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 … 60 °C (-22 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: Connector M8 x 1 , 4-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 10 g. Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height31 mmWidth11 mmDepth20 mm: . Height: 31 mm. Width: 11 mm. Depth: 20 mm
