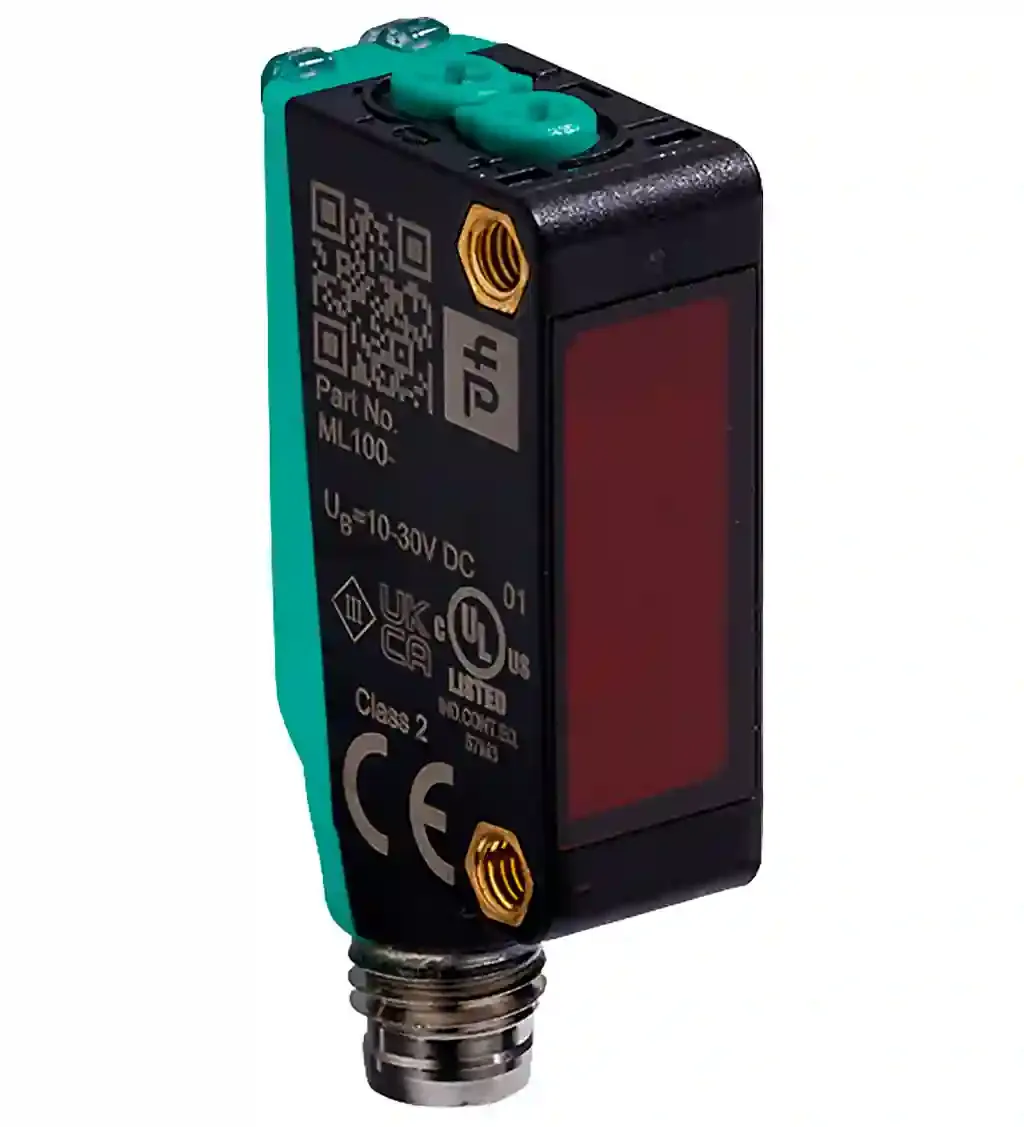

Pepperl Fuchs ML100-8-H-100-RT/95/103

Background suppression sensor. Triangulation sensor with background suppression, background suppression, 100 mm adjustable detection range, red light, light on, PNP output, M8 plug, Miniature design, Small, sharp light spot, Can be adapted to the application in question thanks to the adjustable detection range, Precision object detection, almost irrespective of the color, Full metal thread mounting. Detection range: 5 … 100 mm. Detection range min.: 5 … 25 mm. Detection range max.: 5 … 100 mm. Adjustment range: 25 … 100 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light. Polarization filter: no. Black-white difference (6 %/90 %): < 20 %. Diameter of the light spot: approx. 4 mm at a distance of 100 mm. Opening angle: approx. 2.5 °. Optical face: frontal. Ambient light limit: EN 60947-5-2:2007+A1:2012. MTTFd: 860 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow: lights when object is detected. Control elements: Sensing range adjuster. Control elements: Light-on/dark-on changeover switch. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 15 mA. Switching type: The switching type of the sensor is adjustable. The default setting is: light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 … 60 °C (-22 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: Connector M8 x 1 , 4-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 10 g. Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height31 mmWidth11 mmDepth20 mm: . Height: 31 mm. Width: 11 mm. Depth: 20 mm
