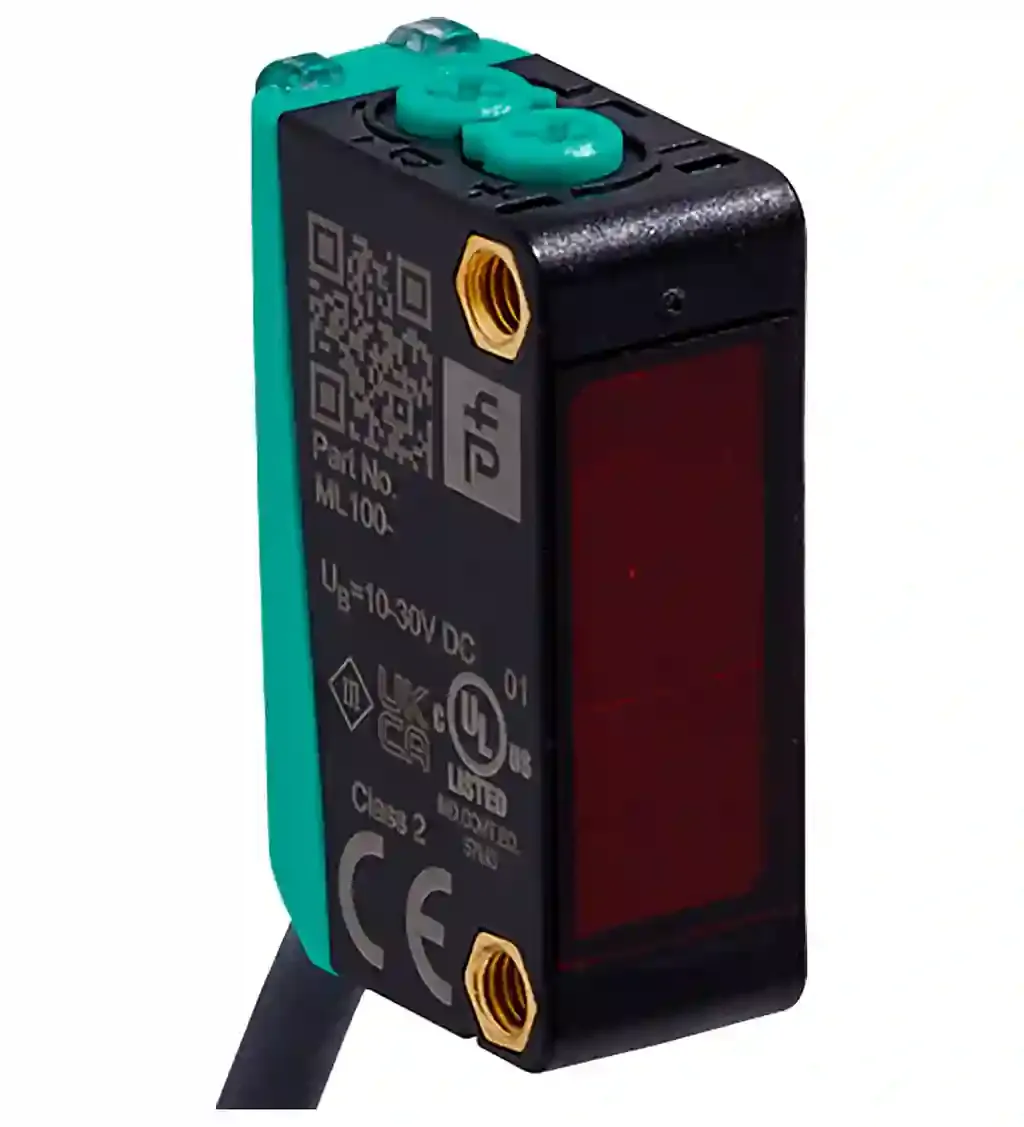

Pepperl Fuchs ML100-8-H-100/115/127/162

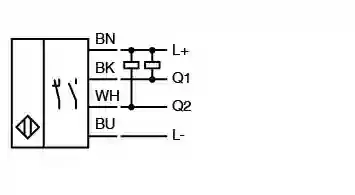

Background suppression sensor. Diffuse mode sensor with special light spots for detecting PCBs, background suppression, miniature design, 100 mm detection range, red light, light on, NPN outputs, fixed cable, Diffuse mode sensor with multiple light spots, Specially designed for detecting critical objects such as PCBs, Miniature design, Detects objects in front of a close background through precise background suppression, Can be adapted to the application in question thanks to the adjustable detection range. Detection range: 20 … 100 mm. Detection range min.: 10 … 25 mm. Detection range max.: 25 … 100 mm. Adjustment range: 25 … 100 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light. Polarization filter: no. Black-white difference (6 %/90 %): < 20 %. Diameter of the light spot: 3 light spots, spotsize 4 mm at a distance of 50 mm, spots are 8 mm apart; spotsize 2.5 mm at a distance of 80 mm, spots are 12 mm apart; spotsize 4 mm at a distance of 100 mm, spots are 15 mm apart (outer spot to outer spot). Optical face: frontal. Ambient light limit: EN 60947-5-2:2007+A1:2012. MTTFd: 1100 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow: lights when object is detected , flashes when in adjustment mode. Control elements: Sensing range adjuster. Control elements: Light-on/dark-on changeover switch. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 15 mA. Switching type: The switching type of the sensor is adjustable. The default setting is: light-on. Signal output: 2 NPN outputs, independent short-circuit protected , reverse polarity protected , open collector transistor. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: 1 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 … 60 °C (-22 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 50 g. Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height31 mmWidth11 mmDepth20 mm: . Height: 31 mm. Width: 11 mm. Depth: 20 mm. Cable length: 2 m
