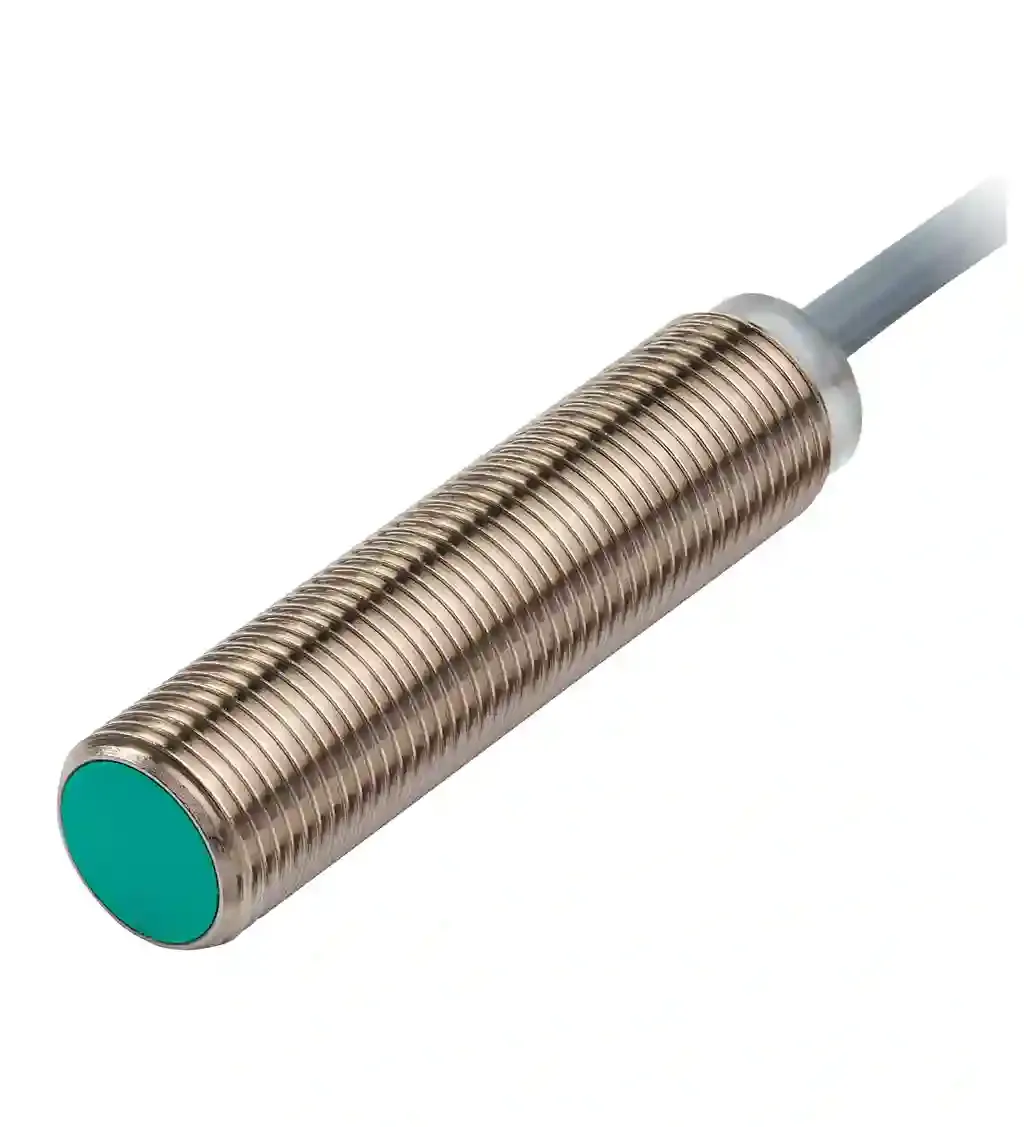

Pepperl Fuchs MB80-12GM50-E0-PUR

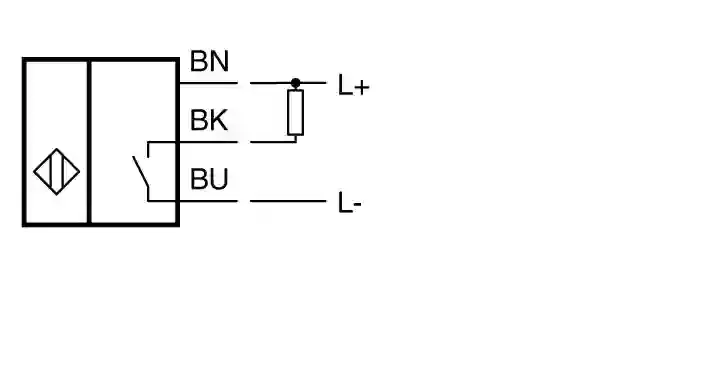

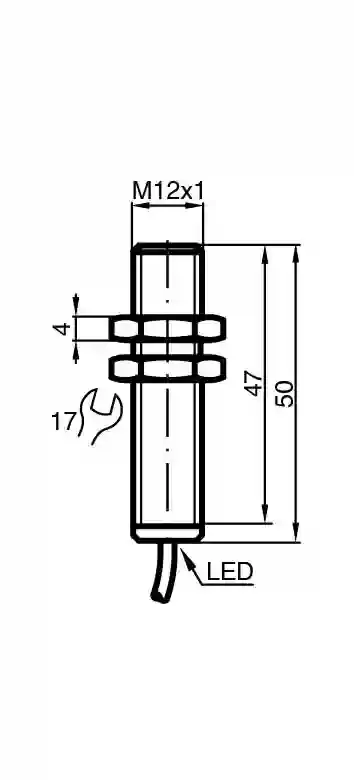

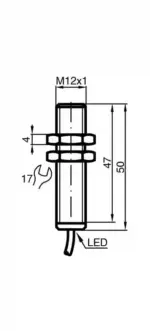

Magnetic field sensor. Switching function: Normally open (NO), Output type: NPN, Installation: flush in non-magnetic metal, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading: with, Type of voltage: DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67. Switching function: Normally open (NO). Output type: NPN. Rated operating distance: 80 mm. Installation: flush in non-magnetic metal. Output polarity: DC. Assured operating distance: 20 … 64.8 mm. Output type: 3-wire. Operating voltage: 10 … 30 V. Switching frequency: 0 … 5000 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: 0 … 200 mA. No-load supply current: ≤ 20 mA. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm – 0.2 mmBending radius> 12 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 3 mm – 0.2 mm. Bending radius: > 12 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm
