Pepperl Fuchs M100/MV100-6091/102/115

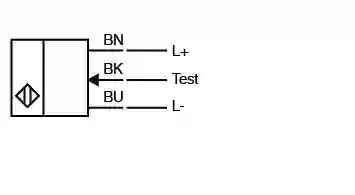

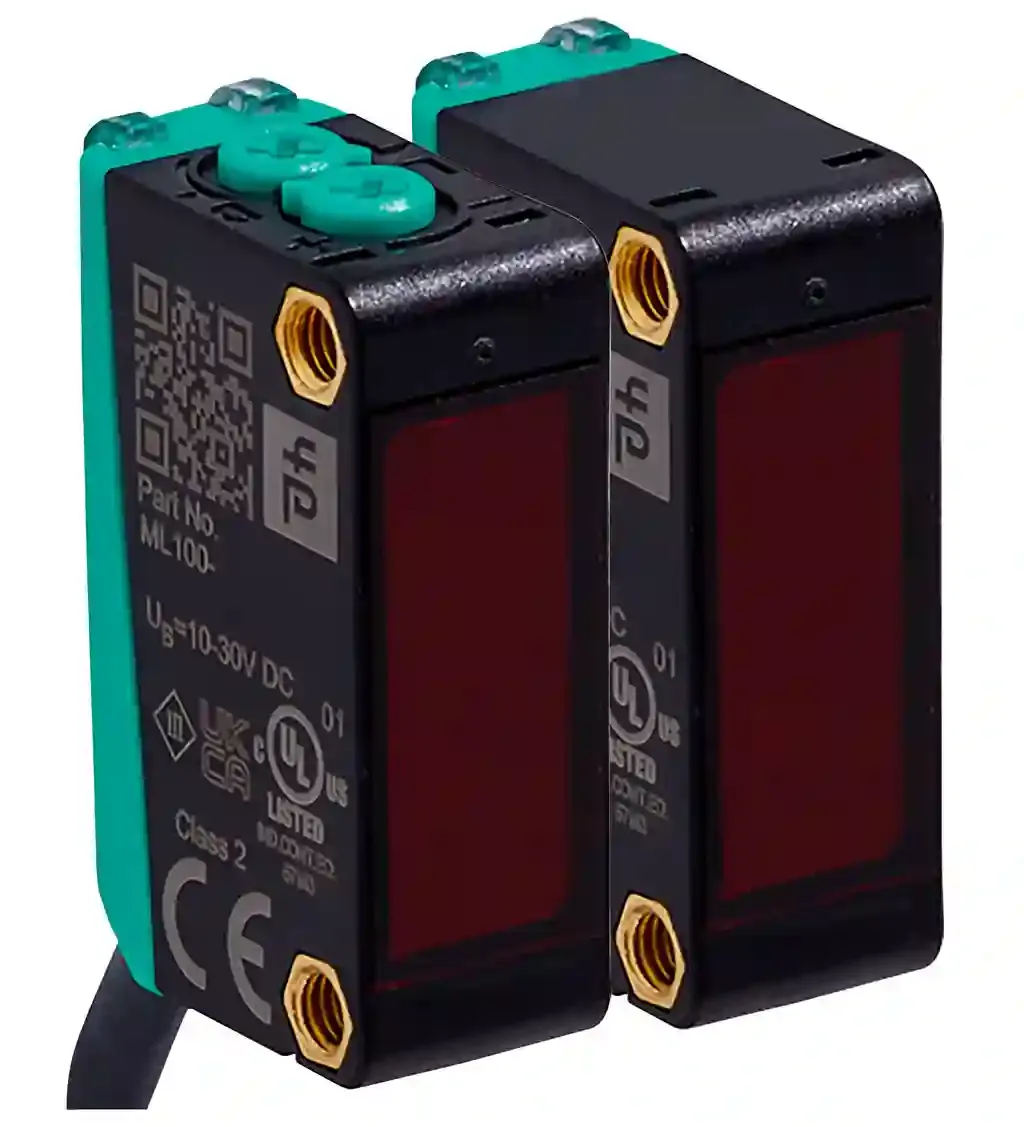

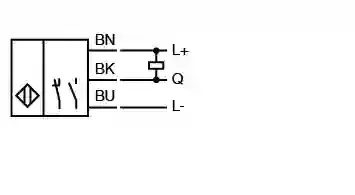

Thru-beam sensor (pair). Thru-beam sensor (pair), Miniature design, Slit aperture to shape the light in miniature sensors, Easy to use, Very bright, highly visible light spot, Full metal thread mounting. Emitter: M100-6091/76b/115. Receiver: MV100-6091/102/115. Effective detection range: 0 … 2.8 m. Threshold detection range: 4 m. Light source: LED. Light type: modulated visible red light. Diameter of the light spot: approx. 0.3 m at a distance of 4 m. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2. MTTFd: 860 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted. Control elements: sensitivity adjustment. Control elements: Light-on/dark-on changeover switch. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: Emitter: ≤ 15 mA Receiver: ≤ 8 mA. Test input: emitter deactivation at 0 V. Switching type: The switching type of the sensor is adjustable. The default setting is: light-on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 … 60 °C (-22 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 100 g (emitter and receiver). Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height31 mmWidth11 mmDepth20 mm: . Height: 31 mm. Width: 11 mm. Depth: 20 mm. Cable length: 2 m
