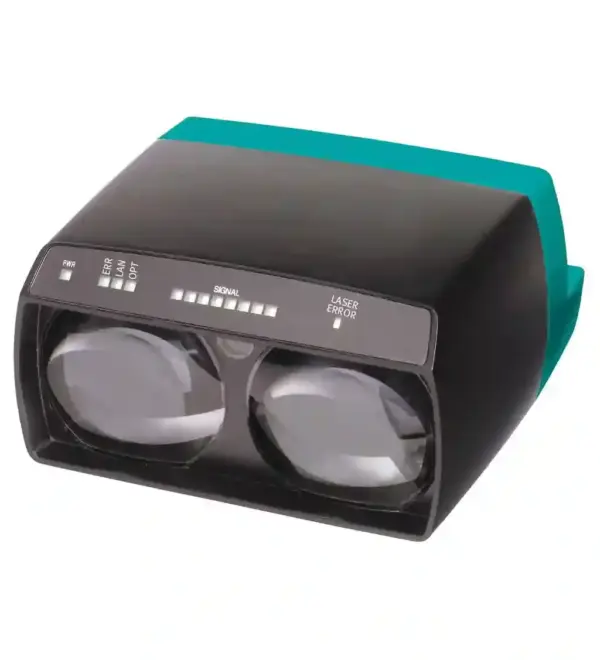

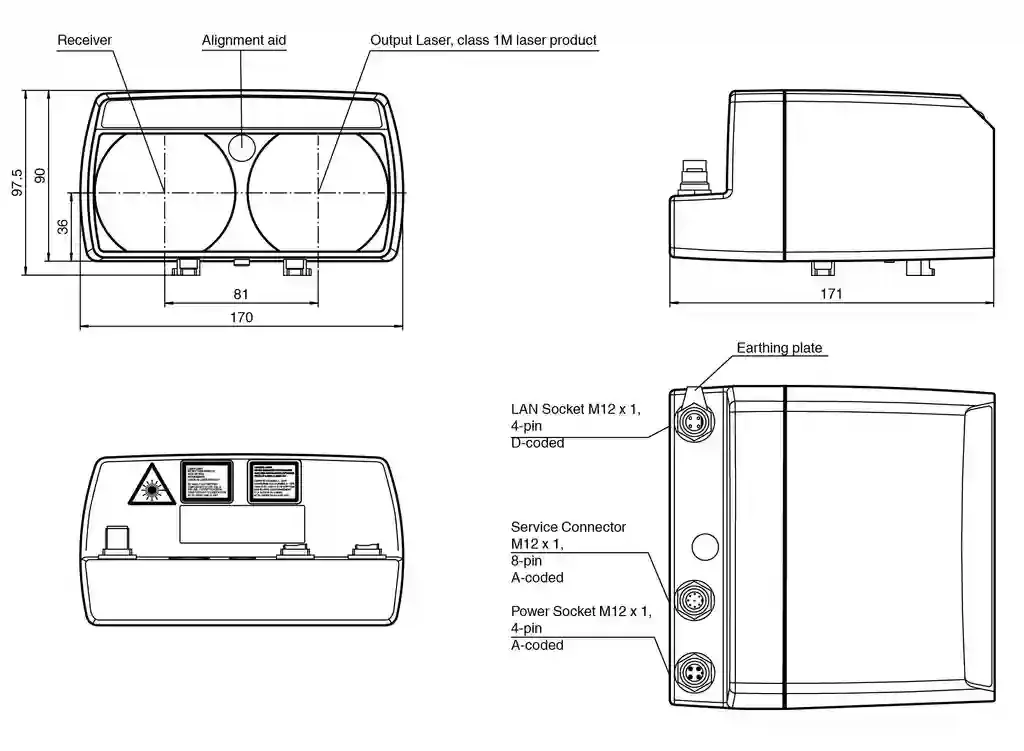

Pepperl Fuchs LS682-DA-EN/F2/35

Optical data coupler. Optical data coupler for fast Ethernet, 300 m detection range, red light, 100 Mbit/s data rate, M12 plug, Independent of Ethernet protocol, TCP/IP, PROFINET, PROFIsafe, EtherCAT, FSoE, EtherNet/IP™, Ethernet POWERLINK etc., Plug connection for fast mounting, No parameterization, Line indicator for signal strength. Effective detection range: 0 … 300 m. Threshold detection range: 350 m. Light source: laser diode. Light type: modulated visible red light. Laser nominal ratings: . NoteVISIBLE LASER RADIATION , DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTSLaser class1MWave length660 nmBeam divergence15 mradPulse length8 nsRepetition rate62.5 MHzMaximum optical power output60 mW: . Note: VISIBLE LASER RADIATION , DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. Laser class: 1M. Wave length: 660 nm. Beam divergence: 15 mrad. Pulse length: 8 ns. Repetition rate: 62.5 MHz. Maximum optical power output: 60 mW. Diameter of the light spot: 1.5 m at a distance of 100 m. Opening angle: 1 °. Ambient light limit: > 10000 Lux. MTTFd: 58.6 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Data flow indicator: LED green: OPTO-Link LED yellow: LAN-Link LED red: ERROR. Function indicator: Signal strength (8 LED: Red, yellow, green). Operating voltage: 18 … 30 V DC. No-load supply current: 200 mA. Interface type: Ethernet; 100 BASE-TX. Physical: M12, D-coded. Protocol: PROFINET EtherNet/IP EtherCAT® Ethernet POWERLINK PROFIsafe. Transfer rate: 100 MBit/s (Fast Ethernet). Stability alarm output: 1 PNP, inactive when falling short of the operating reserve , short-circuit protected, max. 200 mA. Laser safety: EN 60825-1:2007. UL approval: cULus Listed. FDA approval: IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Ambient temperature: -10 … 50 °C (14 … 122 °F). Storage temperature: -20 … 70 °C (-4 … 158 °F). Degree of protection: IP65. Material: . HousingABS / PCOptical faceplastic: . Housing: ABS / PC. Optical face: plastic. Mass: 700 g. Dimensions: . Height90 mmWidth170 mmLength171 mm: . Height: 90 mm. Width: 170 mm. Length: 171 mm
