Pepperl Fuchs LRP5L.D.LRLX.PGMX.PRMX.E4MX.C.1

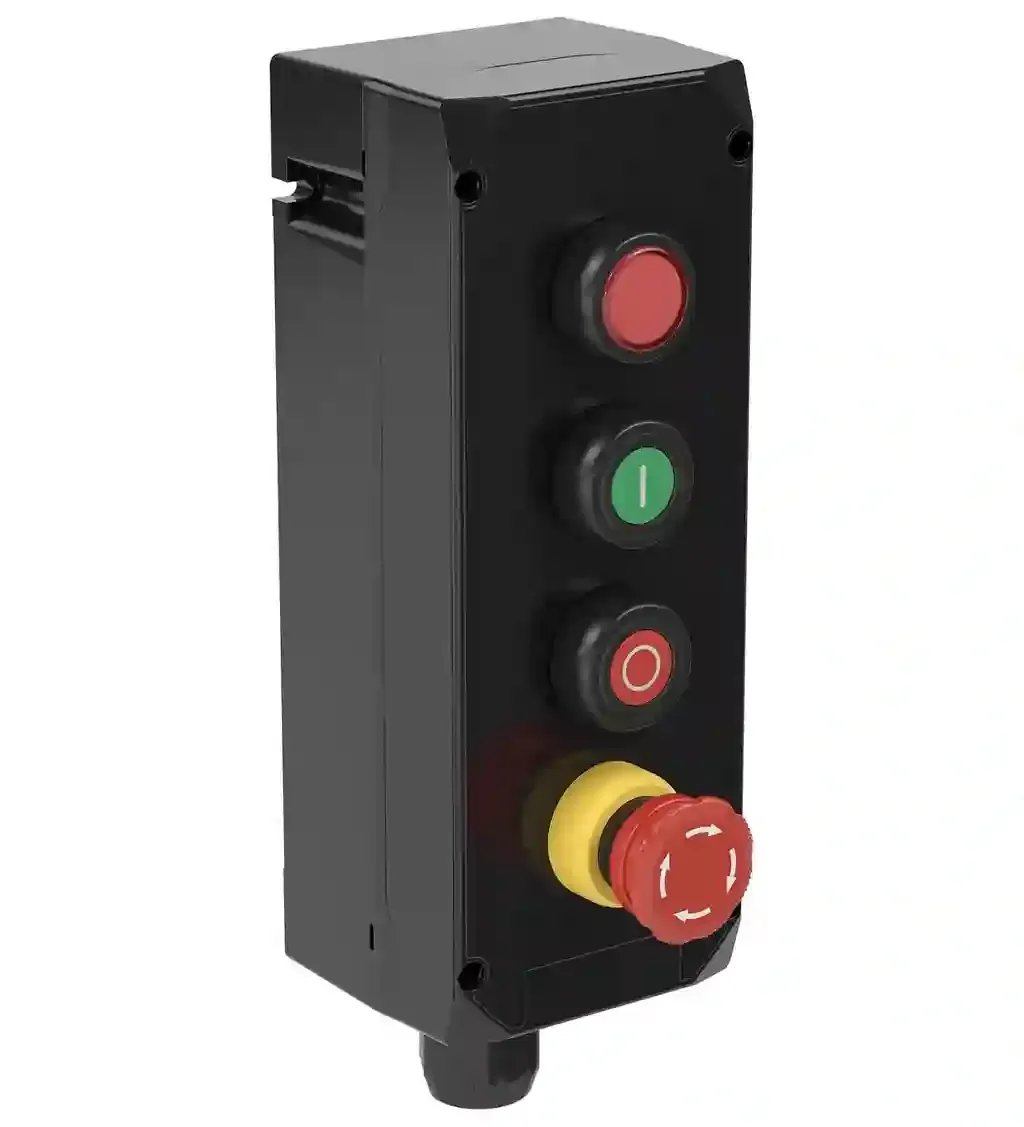

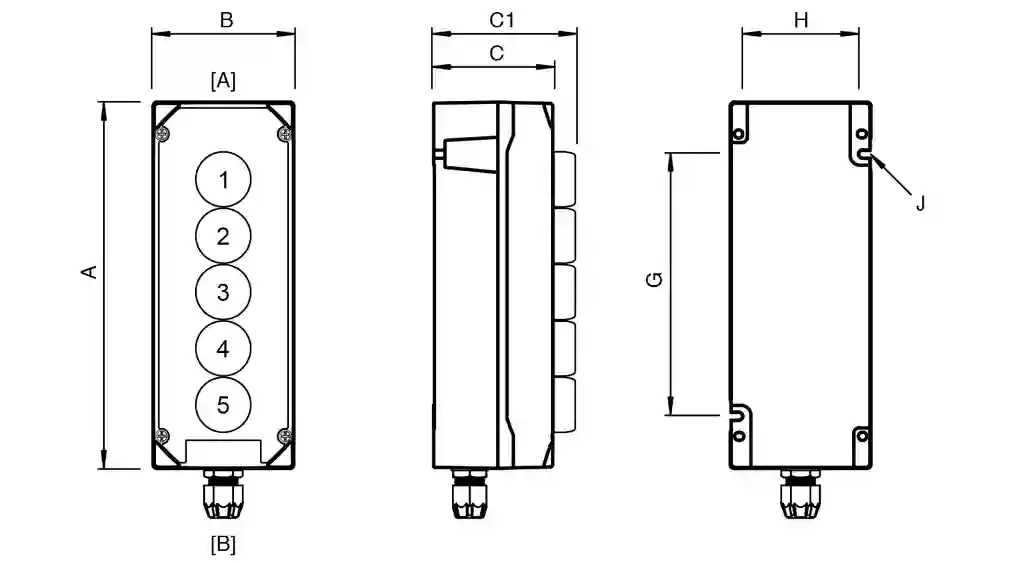

Control Unit Ex e, Polyamide, 4 Functions. LED indicator, red, Pushbutton green – 1x NO / 1x NC – labeling ‘l’, Pushbutton red – 1x NO / 1x NC – labeling ‘0’, Emergency stop mushroom button 40 mm, red, twist-to-release – 1x NO / 1x NC, Polyamide (PA) enclosure, Ex db eb and Ex tb certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Degree of protection IP66, Bottom face cable gland polyamide, 1x M25, Function: LED, Function 2: push button, Function 3: push button, Function 4: mushroom button. Operating voltage: 250 V max.. Operating current: 6 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: LED. ColorredRated operating voltage30 … 250 V AC / 20 … 24 V DC: . Color: red. Rated operating voltage: 30 … 250 V AC / 20 … 24 V DC. Function 2: push button. ColorgreenContact configuration1x NO / 1x NCUsage categoryAC12 – 12 … 250 V AC – 6 AAC15 – 12 … 250 V AC – 6 ADC13 – 12 … 110 V DC – 1 ANumber of poles2Operator actionspring returnLabelingINotespare pushbutton inserts included: red ‘STOP’, red ‘OFF’, green ‘START’, green ‘ON’, black ‘I”, black ‘II’, 2x black ‘arrow up’: . Color: green. Contact configuration: 1x NO / 1x NC. Usage category: AC12 – 12 … 250 V AC – 6 AAC15 – 12 … 250 V AC – 6 ADC13 – 12 … 110 V DC – 1 A. Number of poles: 2. Operator action: spring return. Labeling: I. Note: spare pushbutton inserts included: red ‘STOP’, red ‘OFF’, green ‘START’, green ‘ON’, black ‘I”, black ‘II’, 2x black ‘arrow up’. Function 3: push button. ColorredContact configuration1x NO / 1x NCUsage categoryAC12 – 12 … 250 V AC – 6 AAC15 – 12 … 250 V AC – 6 ADC13 – 12 … 110 V DC – 1 ANumber of poles2Operator actionspring returnLabelingO: . Color: red. Contact configuration: 1x NO / 1x NC. Usage category: AC12 – 12 … 250 V AC – 6 AAC15 – 12 … 250 V AC – 6 ADC13 – 12 … 110 V DC – 1 A. Number of poles: 2. Operator action: spring return. Labeling: O. Function 4: mushroom button. ColorredContact configuration1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12 – 12 … 250 V AC – 6 AAC15 – 12 … 250 V AC – 6 ADC13 – 12 … 110 V DC – 1 ANumber of poles2Operator actionlatching , twist to release: . Color: red. Contact configuration: 1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functions. Usage category: AC12 – 12 … 250 V AC – 6 AAC15 – 12 … 250 V AC – 6 ADC13 – 12 … 110 V DC – 1 A. Number of poles: 2. Operator action: latching , twist to release. Enclosure range: LRP. Enclosure cover: fully detachable. Cover fixing: . ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm: . Screws: M4 stainless steel combination Phillips and slotted screw. Number: 4. Tightening torque: 1.5 Nm. Degree of protection: IP66. Cable entry: thru-holes. Cable entry face B: . M25 quantity1M25 seriesCable Glands, PlasticM25 typeCG.PEDS1.M25.*M25 clamping range9 … 17 mm: . M25 quantity: 1. M25 series: Cable Glands, Plastic. M25 type: CG.PEDS1.M25.*. M25 clamping range: 9 … 17 mm. Defined entry area: face B. Material: . EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone: . Enclosure: Polyamide (PA). Finish: inherent color black. Seal: one piece closed cell silicone. Mass: approx. 1.19 kg. Dimensions: . External dimension (A)260 mmExternal dimension (B)100 mmExternal dimension (C)85 mmExternal dimension with operating element (C1)125.4 mmMounting holes distance (G)186 mmMounting holes distance (H)88 mmMounting holes diameter (J)5.6 mm: . External dimension (A): 260 mm. External dimension (B): 100 mm. External dimension (C): 85 mm. External dimension with operating element (C1): 125.4 mm. Mounting holes distance (G): 186 mm. Mounting holes distance (H): 88 mm. Mounting holes diameter (J): 5.6 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: 2 screws. Grounding: 2x 2.5mm² grounding terminal. Ambient temperature: -40 … 55 °C (-40 … 131 °F) @ T4 -40 … 40 °C (-40 … 104 °F) @ T6. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ): . Marking: II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ). IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. Further approvals: further on request. Degree of protection: EN60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label
