Pepperl Fuchs LRP2.D.PGMX.E4MX.B.1

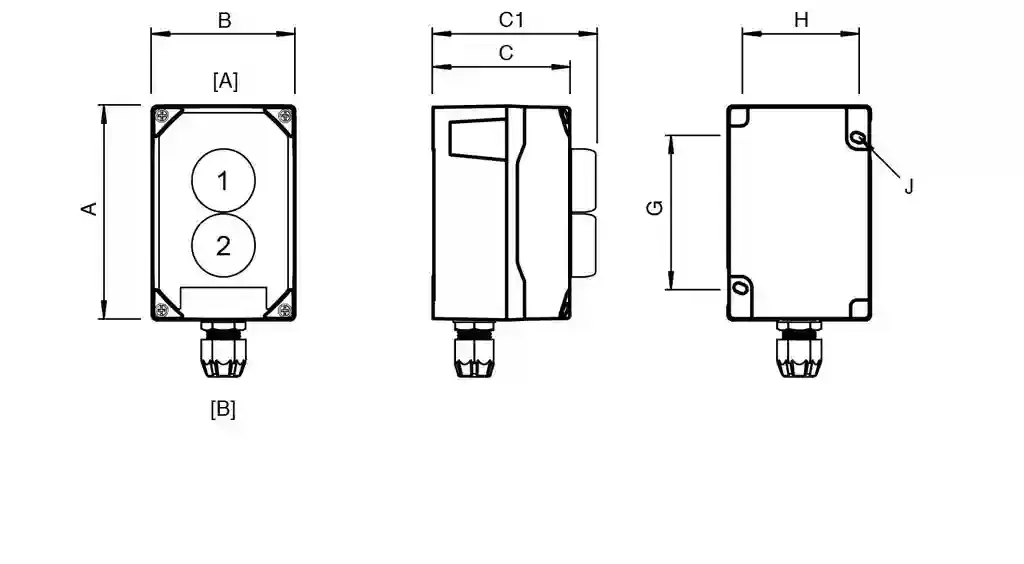

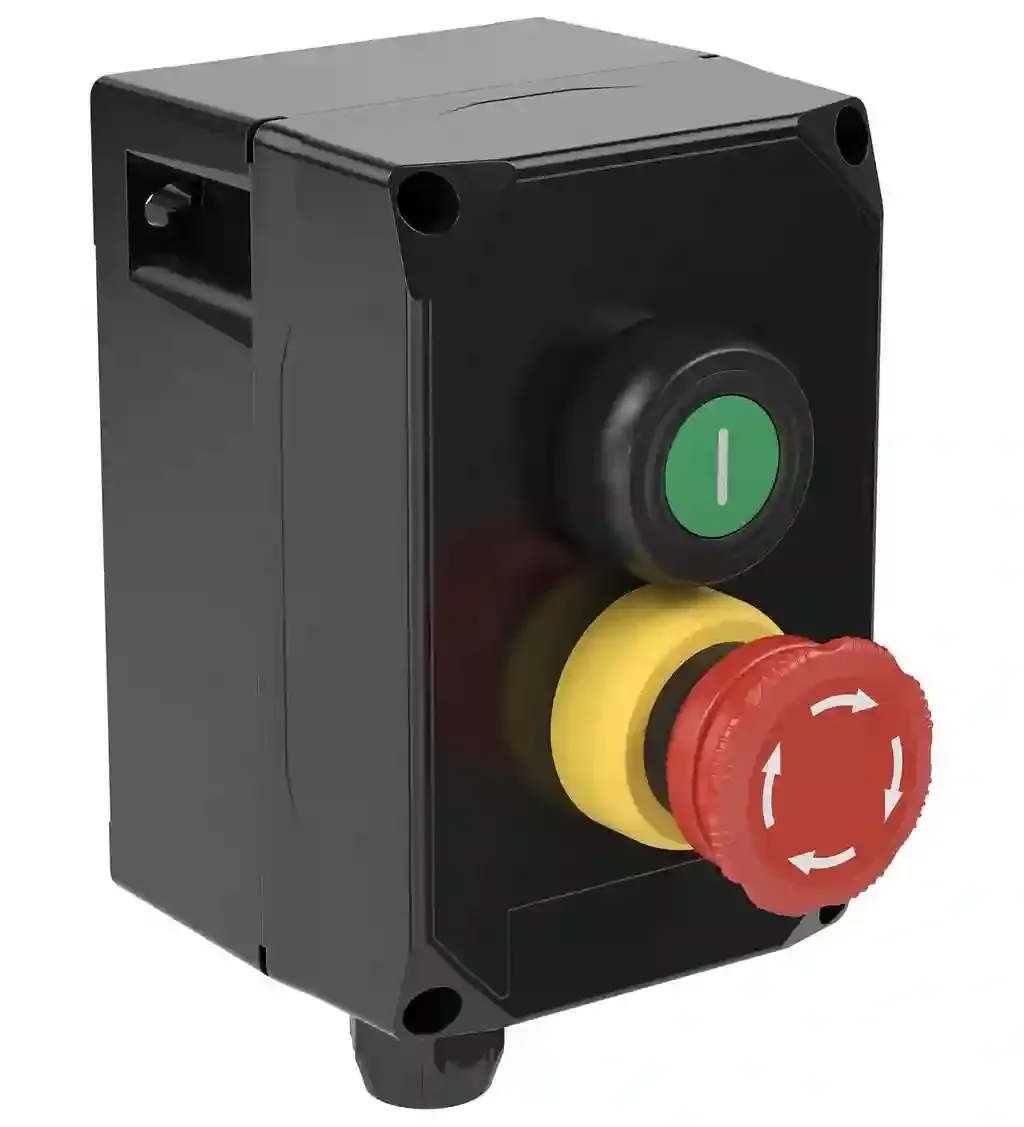

Control Unit Ex e, Polyamide, 2 Functions. Pushbutton green – 1x NO / 1x NC – labeling ‘l’, Emergency stop mushroom button 40 mm, red, twist-to-release – 1x NO / 1x NC, Polyamide (PA) enclosure, Ex db eb and Ex tb certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Pushbutton with interchangeable inserts, Degree of protection IP66, Bottom face cable gland polyamide, 1x M20, Function: push button, Function 2: mushroom button, Ambient temperature: -40 … 55 °C (-40 … 131 °F) @ T4 -40 … 40 °C (-40 … 104 °F) @ T6. Operating voltage: 250 V max.. Operating current: 13 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: push button. ColorgreenContact configuration1x NO / 1x NCUsage categoryAC12 – 12 … 250 V AC – 13 AAC15 – 12 … 250 V AC – 10 ADC13 – 12 … 110 V DC – 1 ANumber of poles2Operator actionspring returnLabelingINotespare pushbutton inserts included: red ‘0’, red ‘STOP’, red ‘OFF’, green ‘START’, green ‘ON’, black ‘I’, black ‘arrow up’: . Color: green. Contact configuration: 1x NO / 1x NC. Usage category: AC12 – 12 … 250 V AC – 13 AAC15 – 12 … 250 V AC – 10 ADC13 – 12 … 110 V DC – 1 A. Number of poles: 2. Operator action: spring return. Labeling: I. Note: spare pushbutton inserts included: red ‘0’, red ‘STOP’, red ‘OFF’, green ‘START’, green ‘ON’, black ‘I’, black ‘arrow up’. Function 2: mushroom button. ColorredContact configuration1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12 – 12 … 250 V AC – 13 AAC15 – 12 … 250 V AC – 10 ADC13 – 12 … 110 V DC – 1 ANumber of poles2Operator actionlatching , twist to release: . Color: red. Contact configuration: 1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functions. Usage category: AC12 – 12 … 250 V AC – 13 AAC15 – 12 … 250 V AC – 10 ADC13 – 12 … 110 V DC – 1 A. Number of poles: 2. Operator action: latching , twist to release. Enclosure range: LRP. Enclosure cover: fully detachable. Cover fixing: . ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm: . Screws: M4 stainless steel combination Phillips and slotted screw. Number: 4. Tightening torque: 1.5 Nm. Degree of protection: IP66. Cable entry: thru-holes. Cable entry face B: . M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 … 12 mm: . M20 quantity: 1. M20 series: Cable Glands, Plastic. M20 type: CG.PEDS1.M20.*. M20 clamping range: 6 … 12 mm. Defined entry area: face B. Material: . EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone: . Enclosure: Polyamide (PA). Finish: inherent color black. Seal: one piece closed cell silicone. Mass: approx. 0.66 kg. Dimensions: . External dimension (A)132 mmExternal dimension (B)88 mmExternal dimension (C)85 mmExternal dimension with operating element (C1)125.4 mmMounting holes distance (G)93 mmMounting holes distance (H)72.5 mmMounting holes diameter (J)5.6 mm: . External dimension (A): 132 mm. External dimension (B): 88 mm. External dimension (C): 85 mm. External dimension with operating element (C1): 125.4 mm. Mounting holes distance (G): 93 mm. Mounting holes distance (H): 72.5 mm. Mounting holes diameter (J): 5.6 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: 2 screws. Grounding: 2x 2.5mm² grounding terminal. Ambient temperature: -40 … 55 °C (-40 … 131 °F) @ T4 -40 … 40 °C (-40 … 104 °F) @ T6. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ): . Marking: II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ). IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. Further approvals: further on request. Degree of protection: EN60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label
