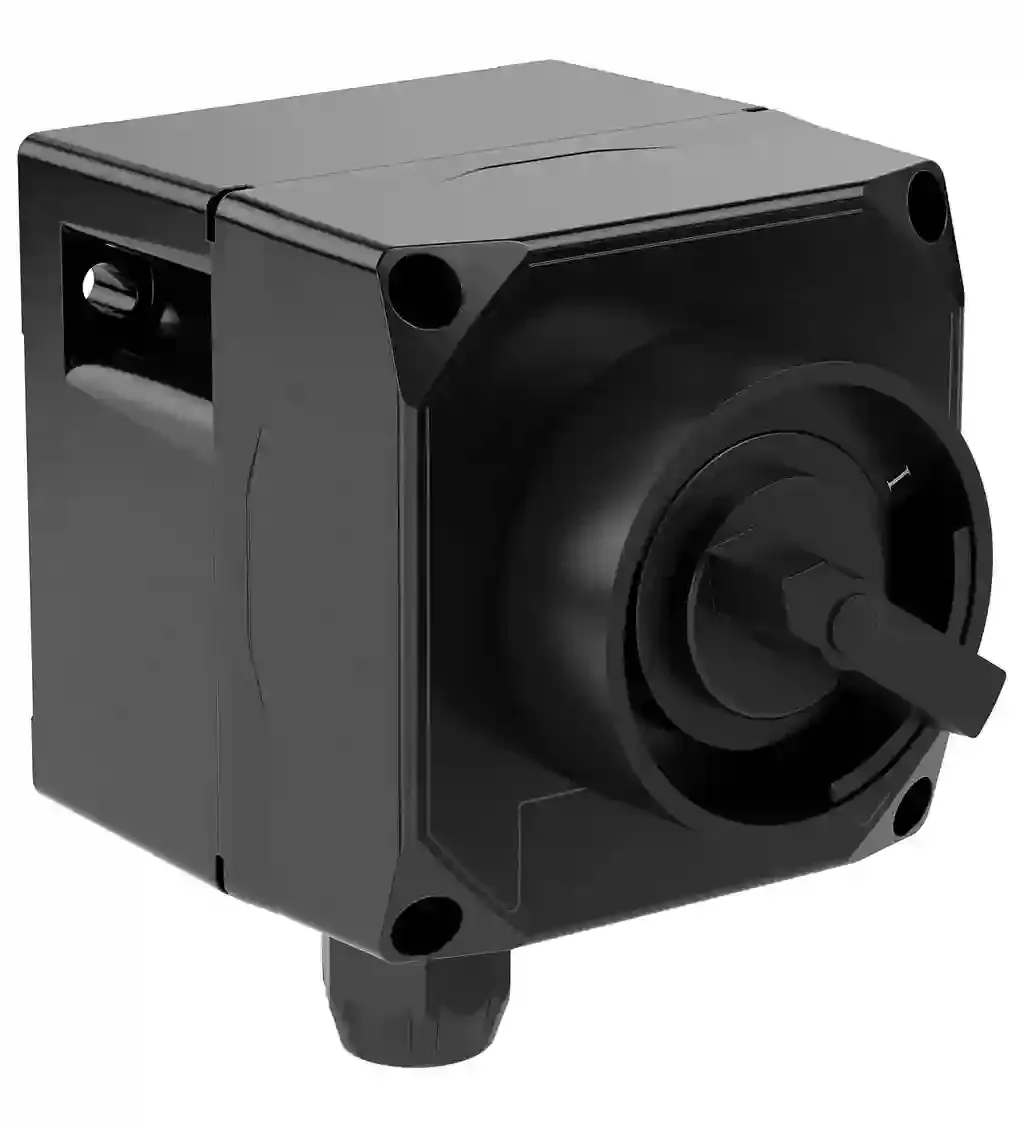

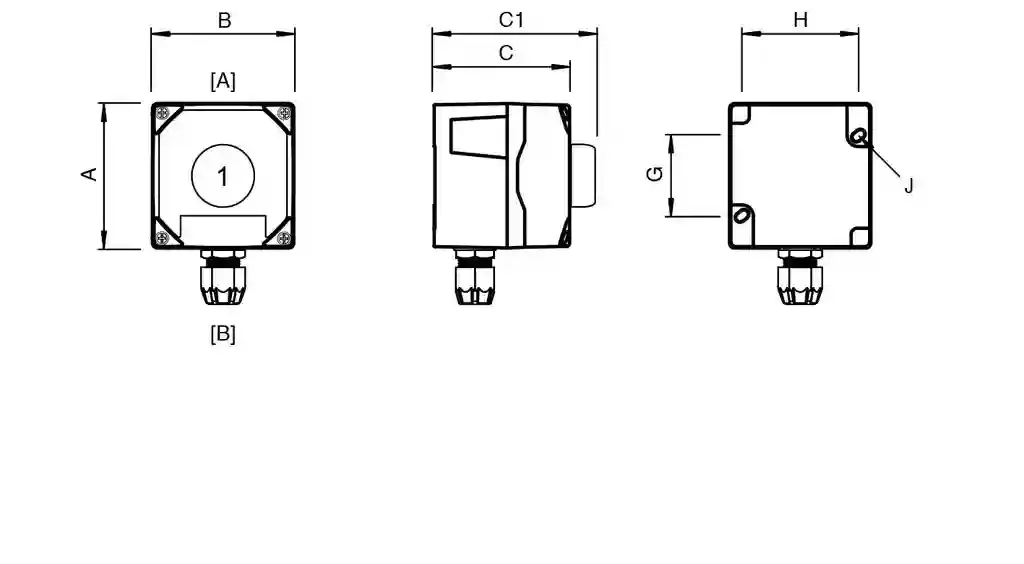

Pepperl Fuchs LRP1.D.S1OX.B.1

Control Unit Ex e, Polyamide, Control Switch. Large control switch, 2 position with left OFF – 2x NO – labeling ‘0 – l’, Polyamide (PA) enclosure, Ex db eb and Ex tb certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Degree of protection IP66, Bottom face cable gland polyamide, 1x M20, Function: control switch, large, Ambient temperature: -40 … 55 °C (-40 … 131 °F) @ T4 -40 … 40 °C (-40 … 104 °F) @ T6, Enclosure: Polyamide (PA). Operating voltage: 250 V max.. Operating current: 13 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: control switch, large. ColorblackShroudyesContact configuration2x NOSwitching configuration2 position changeover with left OFFUsage categoryAC12 – 12 … 250 V AC – 13 AAC15 – 12 … 250 V AC – 10 ADC13 – 12 … 110 V DC – 1 ANumber of poles2Operator actionengage – engageLockablepadlockable in ‘0’Labeling0 – I: . Color: black. Shroud: yes. Contact configuration: 2x NO. Switching configuration: 2 position changeover with left OFF. Usage category: AC12 – 12 … 250 V AC – 13 AAC15 – 12 … 250 V AC – 10 ADC13 – 12 … 110 V DC – 1 A. Number of poles: 2. Operator action: engage – engage. Lockable: padlockable in ‘0’. Labeling: 0 – I. Enclosure range: LRP. Enclosure cover: fully detachable. Cover fixing: . ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm: . Screws: M4 stainless steel combination Phillips and slotted screw. Number: 4. Tightening torque: 1.5 Nm. Degree of protection: IP66. Cable entry: thru-holes. Cable entry face B: . M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 … 12 mm: . M20 quantity: 1. M20 series: Cable Glands, Plastic. M20 type: CG.PEDS1.M20.*. M20 clamping range: 6 … 12 mm. Defined entry area: face B. Material: . EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone: . Enclosure: Polyamide (PA). Finish: inherent color black. Seal: one piece closed cell silicone. Mass: approx. 0.52 kg. Dimensions: . External dimension (A)90 mmExternal dimension (B)88 mmExternal dimension (C)85 mmExternal dimension with operating element (C1)114.3 mmMounting holes distance (G)50 mmMounting holes distance (H)72.5 mmMounting holes diameter (J)5.6 mm: . External dimension (A): 90 mm. External dimension (B): 88 mm. External dimension (C): 85 mm. External dimension with operating element (C1): 114.3 mm. Mounting holes distance (G): 50 mm. Mounting holes distance (H): 72.5 mm. Mounting holes diameter (J): 5.6 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: 2 screws. Grounding: 2x 2.5mm² grounding terminal. Ambient temperature: -40 … 55 °C (-40 … 131 °F) @ T4 -40 … 40 °C (-40 … 104 °F) @ T6. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ): . Marking: II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ). IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. Further approvals: further on request. Degree of protection: EN60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label
