Pepperl Fuchs LCR 01-2,3-0,15-Z1
Glass fiber optic. Glass fiber optic – diffuse with PVC covering, End piece: Cylindrical, Series: Glass fiber optic – diffuse, Sheathing: PVC, Device series: KSU-LL. Fiber optic length: 150 mm. Fiber…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

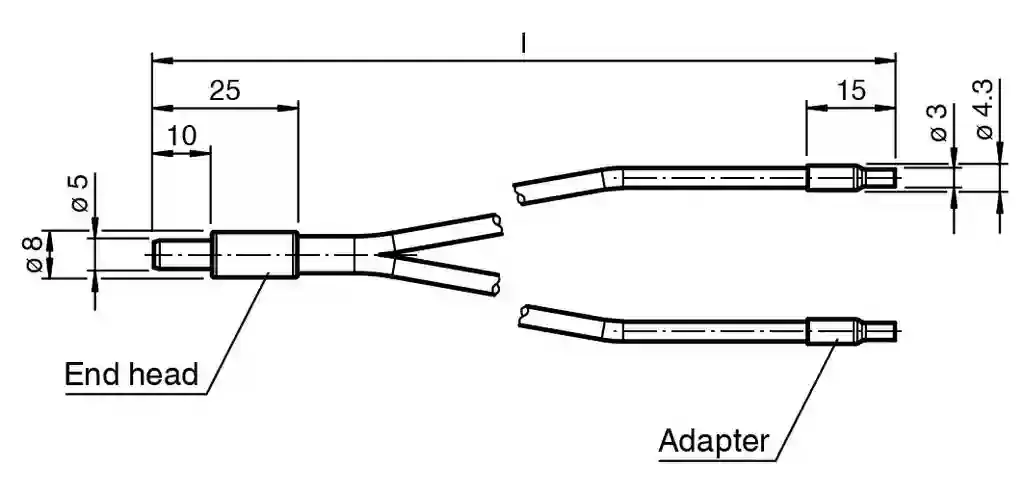

Glass fiber optic. Glass fiber optic – diffuse with PVC covering, End piece: Cylindrical, Series: Glass fiber optic – diffuse, Sheathing: PVC, Device series: KSU-LL. Fiber optic length: 150 mm. Fiber optic diameter: 5.3 mm. Adapter form: 01. End piece: Cylindrical. Bending radius: min. 15 mm. Fiber bundle diameter: 2x 1.8 mm Output area: 2x 2.5 mm2. Opening angle: approx. 68 °. Ambient temperature: -20 … 85 °C (-4 … 185 °F) [Adapter] -20 … 85 °C (-4 … 185 °F) [End head and Covering]. Storage temperature: -20 … 85 °C (-4 … 185 °F). Degree of protection: IP65. Material: . Optical faceglassSheathingPVCCoreGlass fiberEnd pieceStainless steel 1.4305 / AISI 303AdapterStainless steel 1.4305 / AISI 303: . Optical face: glass. Sheathing: PVC. Core: Glass fiber. End piece: Stainless steel 1.4305 / AISI 303. Adapter: Stainless steel 1.4305 / AISI 303. Extraction force: at probe at 20°C: 120 N. Device series: KSU-LL
Specification
General specifications
| Fiber optic length | 150 mm |
|---|---|
| Fiber optic diameter | 5.3 mm |
| Adapter form | 01 |
| End piece | Cylindrical |
| Bending radius | min. 15 mm |
| Fiber bundle diameter | 2x 1.8 mm Output area: 2x 2.5 mm2 |
| Opening angle | approx. 68 ° |
Ambient conditions
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) [Adapter] -20 ... 85 °C (-4 ... 185 °F) [End head and Covering] |
|---|---|
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP65 |
|---|---|
| Material | |
| Optical faceglassSheathingPVCCoreGlass fiberEnd pieceStainless steel 1.4305 / AISI 303AdapterStainless steel 1.4305 / AISI 303 | |
| Optical face | glass |
| Sheathing | PVC |
| Core | Glass fiber |
| End piece | Stainless steel 1.4305 / AISI 303 |
| Adapter | Stainless steel 1.4305 / AISI 303 |
| Extraction force | at probe at 20°C: 120 N |
Fiber optic amplifiers
| Device series | KSU-LL |
|---|
