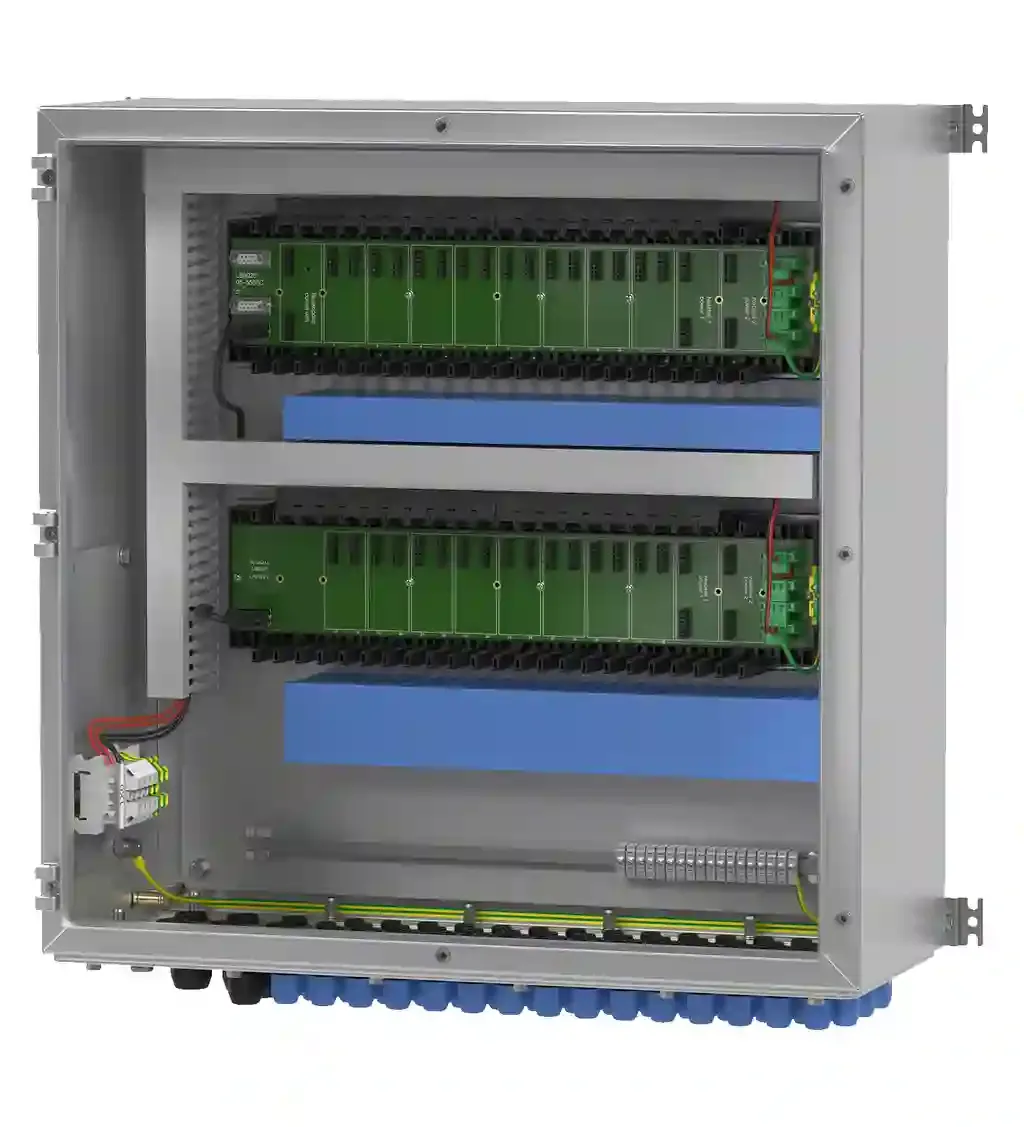

Pepperl Fuchs LB9508-TB*-B-0**-**-*-Y*

Field Unit, Stainless Steel. Preconfigured enclosures for engineered LB systems, Max. 8 slots for I/O modules, Installation in Zone 2 or safe area, Impact resistance enclosure, IP66, Number of modules: 8, Material: Stainless steel, Fieldbus type: PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU , depends on bus coupler. Installed components: backplane LB9023A. Bus coupler: 1. Supply: 1. I/O modules (single width): max. 8. I/O modules (dual width): max. 4. Connection: screw terminals, max. 10 mm2. Rated voltage: 24 V DC. Redundancy: no. Fieldbus type: PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU , depends on bus coupler. Connection: 9-pin Sub-D connector (not included with delivery). Redundancy: no. Electromagnetic compatibility: . Directive 2014/30/EUEN 61439-1:2012 (J.9.2.2 b) , EN 61439-2:2012: . Directive 2014/30/EU: EN 61439-1:2012 (J.9.2.2 b) , EN 61439-2:2012. Degree of protection: EN 60529. Impact resistance: EN 60079-0. Ambient temperature: -20 … 40 °C (-4 … 104 °F) further on request. Storage temperature: -25 … 70 °C (-13 … 158 °F). Relative humidity: < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 … 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 … 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Impact resistance: 7J. Enclosure cover: hinged door with quarter-turn key locks. Cover seal: foamed silicone. Degree of protection: IP66. Cable entry face B: . M16 quantity30M16 seriesCable Glands, PlasticM16 typeCG.PIDS1.M16.*M16 clamping range4 … 8 mmM16 infofield signalsM20 quantity4M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 … 12 mmM20 infoFieldbusM25 quantity2M25 seriesCable Glands, PlasticM25 typeCG.PEDS1.M25.*M25 clamping range10 … 18 mmM25 infoPower Supply: . M16 quantity: 30. M16 series: Cable Glands, Plastic. M16 type: CG.PIDS1.M16.*. M16 clamping range: 4 … 8 mm. M16 info: field signals. M20 quantity: 4. M20 series: Cable Glands, Plastic. M20 type: CG.PEDS1.M20.*. M20 clamping range: 6 … 12 mm. M20 info: Fieldbus. M25 quantity: 2. M25 series: Cable Glands, Plastic. M25 type: CG.PEDS1.M25.*. M25 clamping range: 10 … 18 mm. M25 info: Power Supply. Material: . Cable glandPolyamide (PA)Sealhousing: foamed silicone cable gland: chloroprene: . Cable gland: Polyamide (PA). Seal: housing: foamed silicone cable gland: chloroprene. Mass: approx. 25 kg , without modules. Dimensions: . External dimension (A)380 mmExternal dimension (B)380 mmExternal dimension (C)220 mm: . External dimension (A): 380 mm. External dimension (B): 380 mm. External dimension (C): 220 mm. Mounting: 4 Mounting bracket for wall mounting included in the scope of delivery. Grounding: M8 internal/external brass nickel-plated grounding bolt. EU-type examination certificate: . Marking II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc: . Marking: II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc. Certificate: PF 16 CERT 1267 X. Directive conformity: . Directive 2014/34/EUEN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014: . Directive 2014/34/EU: EN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
