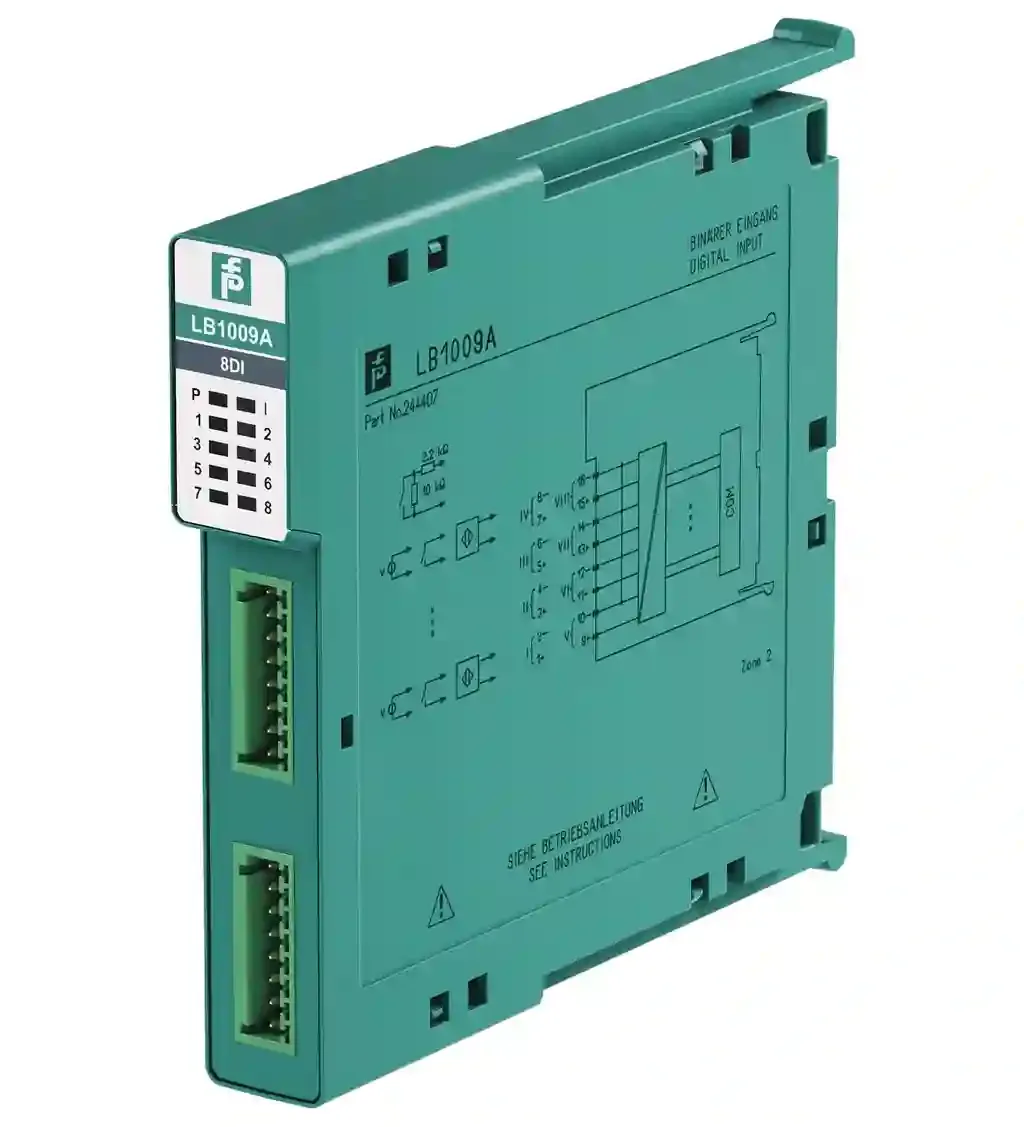

Pepperl Fuchs LB1009A
Digital Input. 8-channel, Inputs Ex ic, Installation in Zone 2 or safe area, Dry contact or NAMUR inputs, Explosion protection: Ex ic, Connection: NAMUR sensor, Connection [2]: volt-free contact. Occu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Digital Input. 8-channel, Inputs Ex ic, Installation in Zone 2 or safe area, Dry contact or NAMUR inputs, Explosion protection: Ex ic, Connection: NAMUR sensor, Connection [2]: volt-free contact. Occupied slots: 1. Connection: backplane bus. Rated voltage: 12 V DC , only in connection with the power supplies LB9***. Power dissipation: 1.55 W. Power consumption: 1.55 W. Connection: backplane bus. Interface: manufacturer-specific bus to standard com unit. Number of channels: 8. Sensor interface: . ConnectionNAMUR sensorConnection [2]volt-free contactConnection [3]Usage without connection to areas where there is a risk of explosion: active signals, mechanical contacts, NAMUR sensors, 2-wire sensors If the device has been operated in general electrical systems that are not connected to areas where there is a risk of explosion, the device cannot then be used in electrical systems that are connected to areas where there is a risk of explosion. Usage with connection to areas where there is a risk of explosion: mechanical contacts, NAMUR sensors: . Connection: NAMUR sensor. Connection [2]: volt-free contact. Connection [3]: Usage without connection to areas where there is a risk of explosion: active signals, mechanical contacts, NAMUR sensors, 2-wire sensors If the device has been operated in general electrical systems that are not connected to areas where there is a risk of explosion, the device cannot then be used in electrical systems that are connected to areas where there is a risk of explosion. Usage with connection to areas where there is a risk of explosion: mechanical contacts, NAMUR sensors. Connection: Terminals 1+, 2-, 3+, 4-, 5+, 6-, 7+, 8-, 9+, 10-, 11+, 12-, 13+,14-, 15+, 16-. Rated values: acc. to EN 60947-5-6 (NAMUR). Switching point/switching hysteresis: 1.2 … 2.1 mA / ± 0.2 mA. Voltage: 8.2 V. Internal resistor: 1 kΩ. Line fault detection: can be switched on/off for each channel via configuration tool , active signals (24 V, 5 V) without line fault detection. Connectionmechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiringShort-circuit< 360 ΩOpen-circuit< 0.35 mA: . Connection: mechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiring. Short-circuit: < 360 Ω. Open-circuit: 8 V > 2.7 VSwitching point: OFF< 3 V 8 V > 2.7 V. Switching point: OFF: < 3 V < 2.3 V. Minimum pulse duration: 15 ms. LED indication: Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1-8) red: line fault (lead breakage or short circuit) , yellow: signal (per channel). Coding: optional mechanical coding via front socket. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Environmental test: EN 60068-2-14. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Damaging gas: EN 60068-2-42. Relative humidity: EN 60068-2-78. Ambient temperature: -40 … 60 °C (-40 … 140 °F) , 70 °C (non-Ex). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: 95 % non-condensing. Altitude: max. 2000 m. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 … 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 … 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 when mounted on backplane. Connection: removable front connector with spring terminal (0.14 … 0.5 mm2). Mass: approx. 90 g. Dimensions: 16 x 100 x 102 mm (0.63 x 3.9 x 4 inch). Input: . VoltageUo10 VCurrentIo12 mAPowerPo30 mW (linear characteristic): Uo. Voltage: 10 V. Current: 12 mA. Power: 30 mW (linear characteristic). Certificate: EXA 13 ATEX 0037X. Marking II 3 G Ex nA [ic] IIC T4 Gc: . Marking: II 3 G Ex nA [ic] IIC T4 Gc. Galvanic isolation: . Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V: . Input/power supply, internal bus: safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010. ATEX approval: EXA 13 ATEX 0037X. IECEx approval: . IECEx certificateIECEx EXA 13.0003XIECEx markingEx nA [ic] IIC T4 Gc: . IECEx certificate: IECEx EXA 13.0003X. IECEx marking: Ex nA [ic] IIC T4 Gc. System information: The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2 or Zone 22) the module must be installed in an appropriate enclosure.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Specification
Slots
| Occupied slots | 1 |
|---|
Supply
| Connection | backplane bus |
|---|---|
| Rated voltage | 12 V DC , only in connection with the power supplies LB9*** |
| Power dissipation | 1.55 W |
| Power consumption | 1.55 W |
Internal bus
| Connection | backplane bus |
|---|---|
| Interface | manufacturer-specific bus to standard com unit |
Digital input
| Number of channels | 8 |
|---|---|
| Sensor interface | |
| ConnectionNAMUR sensorConnection [2]volt-free contactConnection [3]Usage without connection to areas where there is a risk of explosion: active signals, mechanical contacts, NAMUR sensors, 2-wire sensors If the device has been operated in general electrical systems that are not connected to areas where there is a risk of explosion, the device cannot then be used in electrical systems that are connected to areas where there is a risk of explosion. Usage with connection to areas where there is a risk of explosion: mechanical contacts, NAMUR sensors | |
| Connection | NAMUR sensor |
| Connection [2] | volt-free contact |
| Connection [3] | Usage without connection to areas where there is a risk of explosion: active signals, mechanical contacts, NAMUR sensors, 2-wire sensors If the device has been operated in general electrical systems that are not connected to areas where there is a risk of explosion, the device cannot then be used in electrical systems that are connected to areas where there is a risk of explosion. Usage with connection to areas where there is a risk of explosion: mechanical contacts, NAMUR sensors |

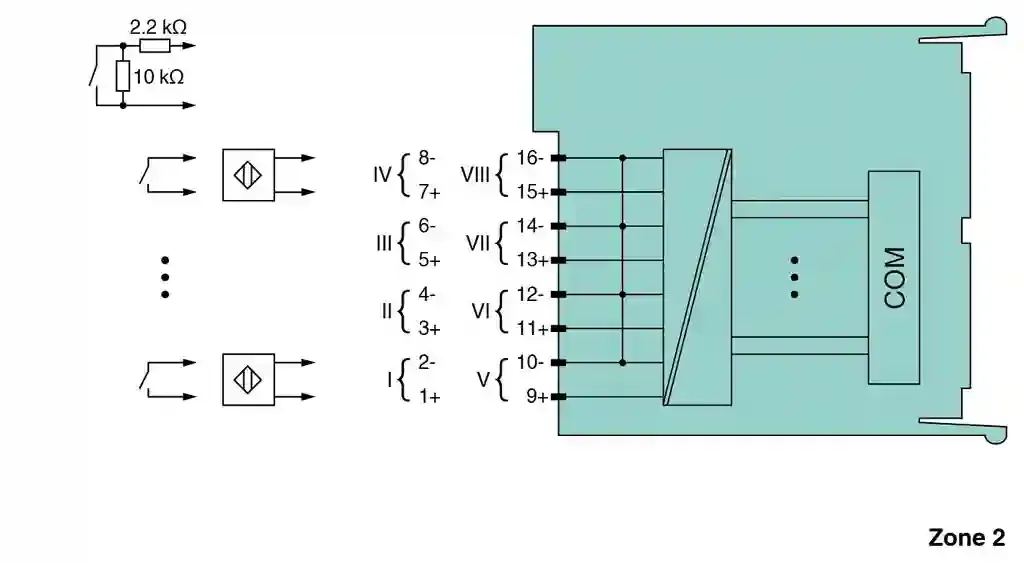

| Connection | Terminals 1+, 2-, 3+, 4-, 5+, 6-, 7+, 8-, 9+, 10-, 11+, 12-, 13+,14-, 15+, 16- |
| Rated values | acc. to EN 60947-5-6 (NAMUR) |
| Switching point/switching hysteresis | 1.2 ... 2.1 mA / ± 0.2 mA |
| Voltage | 8.2 V |
| Internal resistor | 1 kΩ |
| Line fault detection | can be switched on/off for each channel via configuration tool , active signals (24 V, 5 V) without line fault detection |
| Connectionmechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiringShort-circuit< 360 ΩOpen-circuit< 0.35 mA | |
| Connection | mechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiring |
| Short-circuit | < 360 Ω |
| Open-circuit | < 0.35 mA |
| Digital signals (active) | Use in safe area: configurable 24 V 5 V |
| Switching point: ON> 8 V > 2.7 VSwitching point: OFF< 3 V < 2.3 V | |
| Switching point: ON | > 8 V > 2.7 V |
| Switching point: OFF | < 3 V < 2.3 V |
| Minimum pulse duration | 15 ms |
Indicators/settings
| LED indication | Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1-8) red: line fault (lead breakage or short circuit) , yellow: signal (per channel) |
|---|---|
| Coding | optional mechanical coding via front socket |
Directive conformity
| Electromagnetic compatibility | |
|---|---|
| Directive 2014/30/EUEN 61326-1:2013 | |
| Directive 2014/30/EU | EN 61326-1:2013 |
Conformity
| Electromagnetic compatibility | NE 21 |
|---|---|
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Damaging gas | EN 60068-2-42 |
| Relative humidity | EN 60068-2-78 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) , 70 °C (non-Ex) |
|---|---|
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
Mechanical specifications
| Degree of protection | IP20 when mounted on backplane |
|---|---|
| Connection | removable front connector with spring terminal (0.14 ... 0.5 mm2) |
| Mass | approx. 90 g |
| Dimensions | 16 x 100 x 102 mm (0.63 x 3.9 x 4 inch) |
Data for application in connection with hazardous areas
| Input | |
|---|---|
| VoltageUo10 VCurrentIo12 mAPowerPo30 mW (linear characteristic) | Uo |
| Voltage | 10 V |
| Current | 12 mA |
| Power | 30 mW (linear characteristic) |
| Certificate | EXA 13 ATEX 0037X |
| Marking II 3 G Ex nA [ic] IIC T4 Gc | |
| Marking | II 3 G Ex nA [ic] IIC T4 Gc |
| Galvanic isolation | |
| Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V | |
| Input/power supply, internal bus | safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive conformity | |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010 | |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010 |
International approvals
| ATEX approval | EXA 13 ATEX 0037X |
|---|---|
| IECEx approval | |
| IECEx certificateIECEx EXA 13.0003XIECEx markingEx nA [ic] IIC T4 Gc | |
| IECEx certificate | IECEx EXA 13.0003X |
| IECEx marking | Ex nA [ic] IIC T4 Gc |
General information
| System information | The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2 or Zone 22) the module must be installed in an appropriate enclosure. |
|---|---|
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
