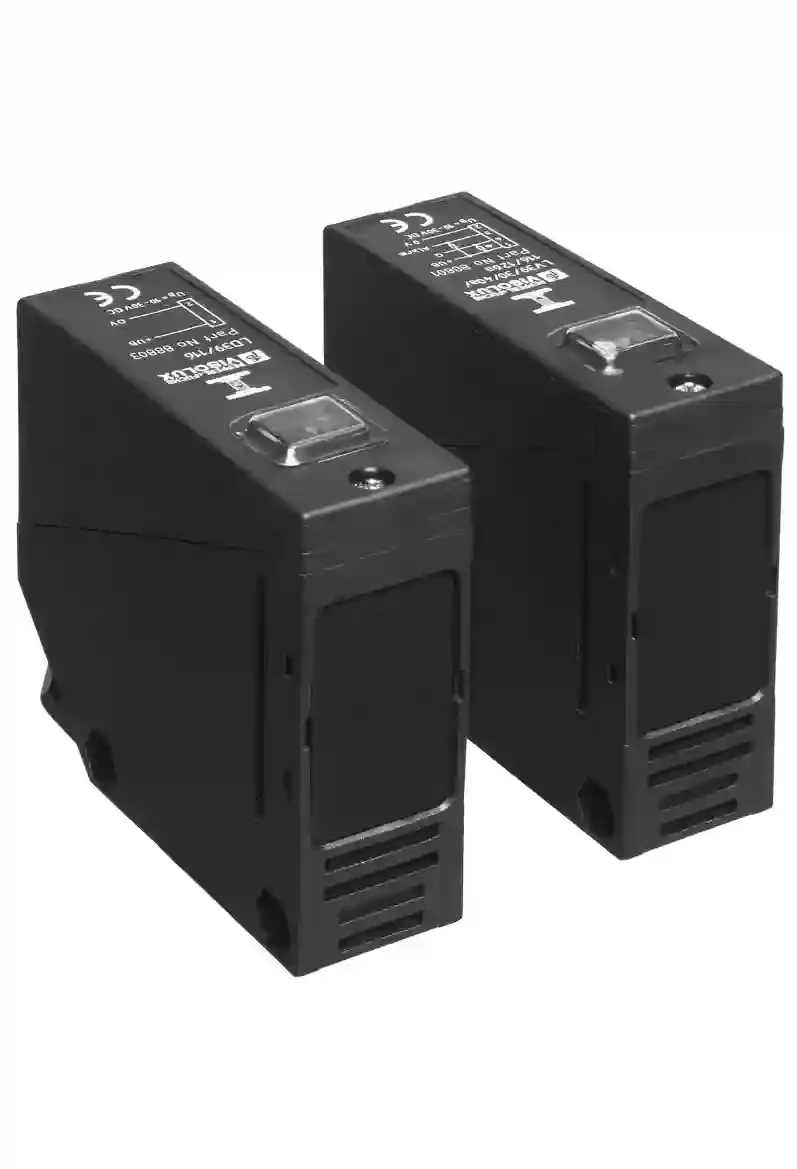

Pepperl Fuchs LA39/LK39/31/40a/116

Thru-beam sensor. Thru-beam sensor, 20 m detection range, infrared light, light/dark on, AC/DC version, relay contact output, sensitivity adjuster, terminal compartment, Light-on/dark-on, switchable, Supplied with mounting accessory, Degree of protection IP54. Emitter: LA39/116. Receiver: LK39/31/40a/116. Effective detection range: 0 … 20 m. Threshold detection range: 25 m. Adjustment range: 2 … 25 m. Reference target: receiver. Light source: IRED. Light type: modulated infrared light. Ambient light limit: IEC / EN 60947-5-2 , 10000 Lux. MTTFd: 916 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED red (emitter). Function indicator: LED yellow: switching stateLED red: pre-fault indication. Control elements: Sensing range adjuster, light-on/dark-on changeover switch. Operating voltage: 12 … 240 V DC / 24 … 240 V AC (50 … 60 Hz). Ripple: 10 %. No-load supply current: ≤ 60 mA receiver and emitter. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Caution!The protection class 2 is only valid when the terminal compartment is closed. output circuit has basic insulation to control circuit according to IEC/EN 61140. Power consumption: ≤ 3 VA. Time delay before availability: ≤ 300 ms. Switching type: light/dark on. Signal output: 1 relay output. Switching voltage: max. 240 V AC ; 150 V DC. Switching current: max. 3 A. Switching power: DC: max. 90 W AC: max. 750 VA. Switching frequency: ≤ 25 Hz. Response time: ≤ 20 ms. Product standard: EN 60947-5-2. CCC approval: Certified by China Compulsory Certification (CCC). Approvals: CE. Ambient temperature: -25 … 55 °C (-13 … 131 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP54. Connection: terminal compartment PG9 , ≤ 0.75 mm2. Material: . HousingPBTOptical facePMMA: . Housing: PBT. Optical face: PMMA. Mass: Emitter: approx. 90 g receiver: approx. 110 g. Dimensions: . Height64 mmWidth25 mmDepth75 mm: . Height: 64 mm. Width: 25 mm. Depth: 75 mm. Scope of delivery: Mounting aid
