Pepperl Fuchs LA31/LK31/25/31/115

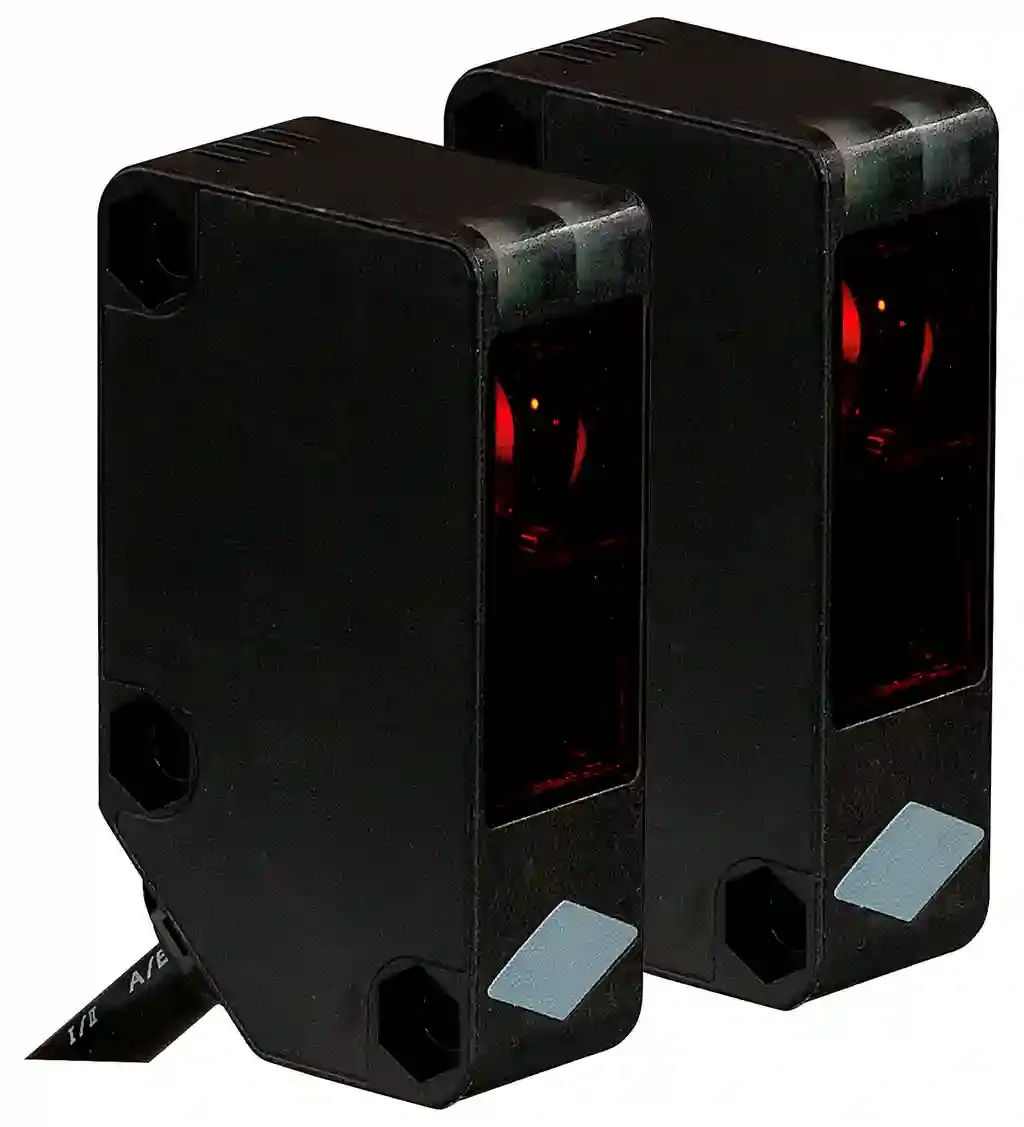

Thru-beam sensor. Thru-beam sensor, 30 m detection range, red light, light on, AC/DC version, relais output, fixed cable, Cost-optimized series for standard tasks, Large construction with small housing, Highly visible LED, Version for universal voltages, Relay output. Emitter: LA31/115. Receiver: LK31/25/31/115. Effective detection range: 0 … 30 m. Threshold detection range: 43 m. Light source: LED. Light type: modulated visible red light , 630 nm. Alignment aid: LED yellow:1. LED illuminates: Sufficient light signal received, emitter and receiver alignment is correct 2. LED flashes: Reaching switching point 3. LED off: Light beam is interrupted or the alignment is out. Diameter of the light spot: approx. 800 mm at a distance of 30 m. Opening angle: Emitter: 0.5 ° , Receiver: 1.5 °. Ambient light limit: 50000 Lux ; according to EN 60947-5-2. MTTFd: 620 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow:1. LED lit constantly: signal > 2 x switching point (operating reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point. Operating voltage: 24 … 240 V AC 12 … 240 V DC. No-load supply current: Emitter: ≤ 20 mA Receiver: ≤ 20 mA. Power consumption: Emitter: ≤ 1 VA Receiver: ≤ 1 VA. Switching type: light-on. Signal output: Relay, 1 alternator. Switching voltage: max. 250 V AC/DC. Switching current: max. 3 A. Switching power: DC: max. 150 W AC: max. 750 VA. Switching frequency: ≤ 20 Hz. Response time: ≤ 25 ms. Product standard: EN 60947-5-2. Standard conformity: . StandardsEN 62103: . Standards: EN 62103. Protection class: II , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 … 55 °C (-13 … 131 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: Emitter: 2 m fixed cable , 2-wire Receiver: 2 m fixed cable , 5-wire. Material: . HousingPolycarbonateOptical facePMMA: . Housing: Polycarbonate. Optical face: PMMA. Mass: Emitter: 116 g Receiver: 131 g. Dimensions: . Height62 mmWidth18 mmDepth35 mm: . Height: 62 mm. Width: 18 mm. Depth: 35 mm
