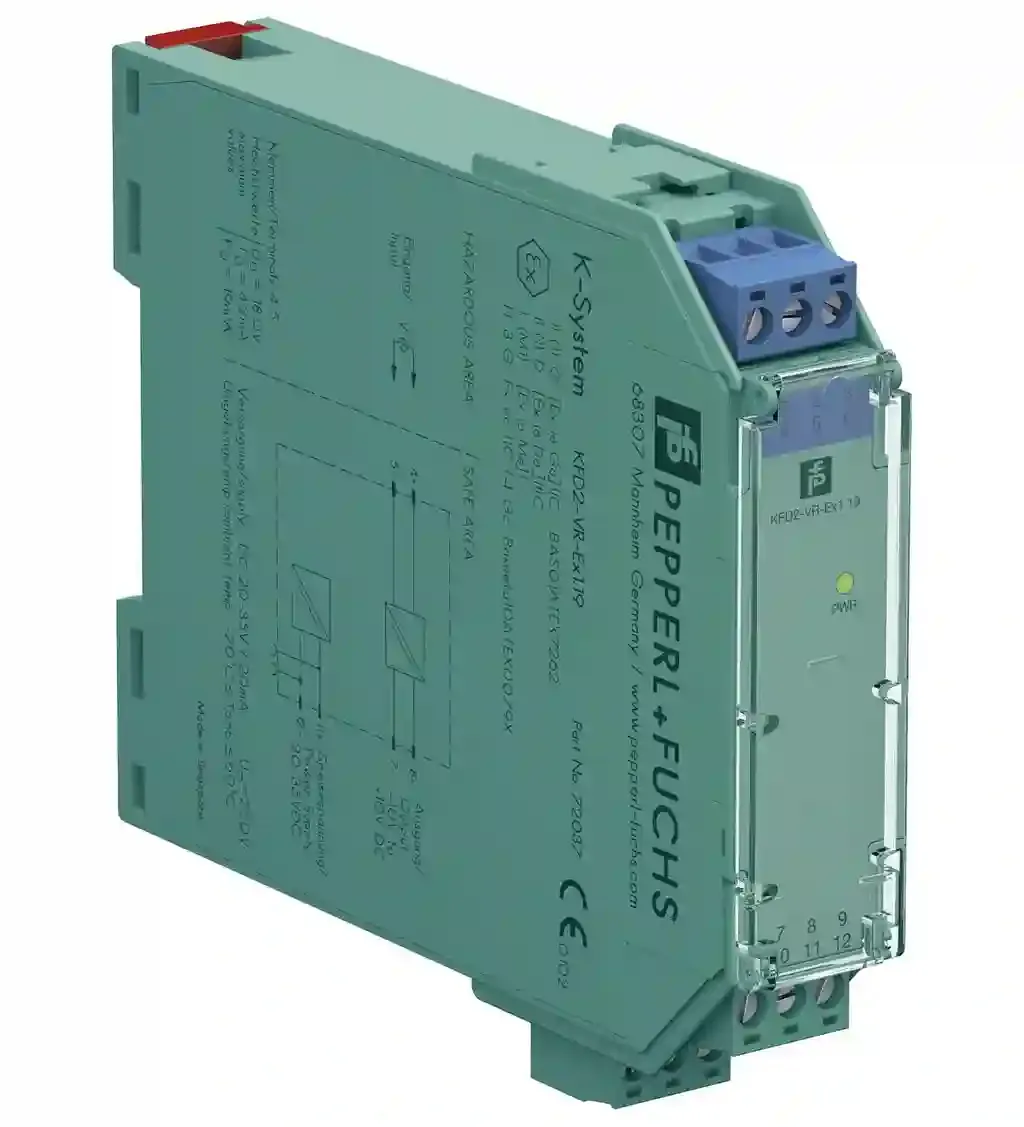

Pepperl Fuchs KFD2-VR-Ex1.19

Voltage Repeater. 1-channel isolated barrier, 24 V DC supply (Power Rail), Voltage input -10 V … 10 V, Voltage output -10 V … 10 V, Housing width: 20 mm, Number of channels: 1-channel, Transfer direction: to the control system, Rated voltage: 20 … 35 V DC, Signal: 1 x -10 … 10 V, Signal: 1 x -10 … 10 V, Cut-off frequency: 1.2 kHz (-3 dB). Signal type: Analog input. Connection: Power Rail or terminals 11+, 12-. Rated voltage: 20 … 35 V DC. Ripple: within the supply tolerance. Rated current: < 25 mA. Connection side: field side. Connection: terminals 4+, 5-. Input resistance: min. 10 MΩ. Transmission range: -10 … 10 V. Offset voltage/current: < 2 mV / < 7 nA. Connection side: control side. Connection: terminals 7-, 8+. Voltage: -10 … 10 V. Output resistance: max. 20 Ω. Cut-off frequency: 1.2 kHz (-3 dB). Deviation: . After calibration± 5 mV at 20 °C (68 °F)Influence of ambient temperature< 0.005 % of range per K: . After calibration: ± 5 mV at 20 °C (68 °F). Influence of ambient temperature: < 0.005 % of range per K. Rise time: ≤ 0.4 ms. Output/power supply: functional insulation, rated insulation voltage 50 V AC. Display elements: LED. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 100 g. Dimensions: 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1. Height100 mmWidth20 mmDepth115 mm: . Height: 100 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: BAS 01 ATEX 7262. Marking II (1)GD, I (M1) [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C) , [circuit(s) in zone 0/1/2]VoltageUo18 VCurrentIo4.2 mAPowerPo19 mW: . Marking: II (1)GD, I (M1) [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C) , [circuit(s) in zone 0/1/2]. Voltage: 18 V. Current: 4.2 mA. Power: 19 mW. Supply: . Maximum safe voltageUm250 V (Attention! The rated voltage is lower.): Um. Maximum safe voltage: 250 V (Attention! The rated voltage is lower.). Output: . Maximum safe voltageUm250 V (Attention! The rated voltage is lower.): Um. Maximum safe voltage: 250 V (Attention! The rated voltage is lower.). Certificate: BASEEFA 10 ATEX 0079X. Marking II 3G Ex ec IIC T4 Gc [device in zone 2]: . Marking: II 3G Ex ec IIC T4 Gc [device in zone 2]. Galvanic isolation: . Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Input/Output: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Input/power supply: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018. FM approval: . Control drawing116-0129: . Control drawing: 116-0129. UL approval: . Control drawing116-0173 (cULus): . Control drawing: 116-0173 (cULus). CSA approval: . Control drawing116-0132: . Control drawing: 116-0132. IECEx approval: . IECEx certificateIECEx BAS 10.0040XIECEx markingEx ec IIC T4 Gc: . IECEx certificate: IECEx BAS 10.0040X. IECEx marking: Ex ec IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
