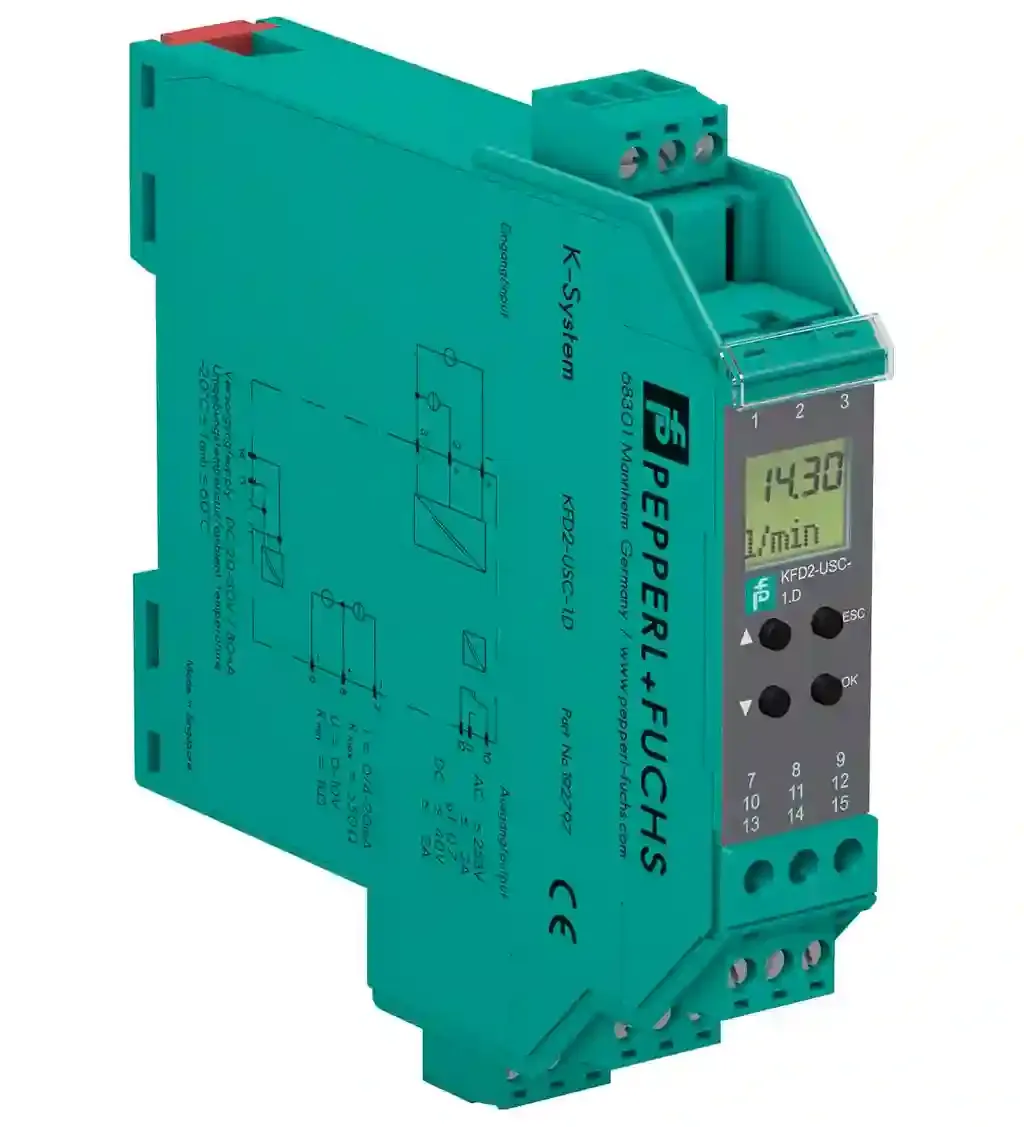

Pepperl Fuchs KFD2-USC-1.D

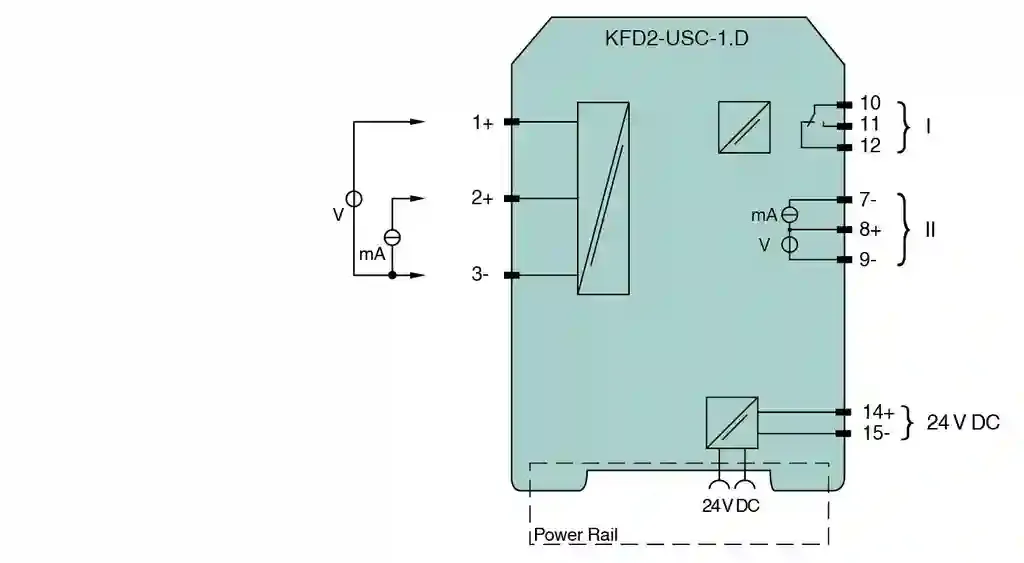

Signal Converter with Trip Value. 1-channel signal conditioner, 24 V DC supply (Power Rail), Scaleable current or voltage input, Current or voltage output, Relay contact output, Configurable by keypad, Line fault detection (LFD), Housing width: 20 mm, Number of channels: 1-channel, Rated voltage: 20 … 30 V DC, Type: 1 x relay (change-over contact), Signal: 1 x 0/4 … 20 mA, Signal [2]: 1 x 0/1 … 5 V, Signal [3]: 1 x 0/2 … 10 V, Line fault detection. Signal type: Analog input. Connection: terminals 14+, 15- or Power Rail. Rated voltage: 20 … 30 V DC. Rated current: ≤ 80 mA DC. Power consumption: ≤ 1.6 W. Connection side: field side. Connection: terminals 1+, 3- : mV, V ; terminals 2+, 3- : mA. Input resistance: voltage: 1 MΩ , current: max. 100 Ω. Limit: 30 V. Current: 0 … 20 mA. Voltage: 0 … 10 V / 0 … 60 mV. Resolution: 15 Bit. Connection side: control side. Connection: output I: terminals 10, 11, 12 output II: terminals 7-, 8+, 9-. Output I: signal, relay. Contact loading250 V AC/2 A/cos φ 0.7; 40 V DC/2 AMechanical life2 x 107 switching cyclesEnergized/De-energized delayapprox. 10 ms / approx. 10 ms: . Contact loading: 250 V AC/2 A/cos φ 0.7; 40 V DC/2 A. Mechanical life: 2 x 107 switching cycles. Energized/De-energized delay: approx. 10 ms / approx. 10 ms. Output II: analog. Loadcurrent: max. 550 Ω , voltage: min. 1 kΩAnalog voltage output0/1 … 5 V , 0/2 … 10 VAnalog current output0/4 … 20 mA: . Load: current: max. 550 Ω , voltage: min. 1 kΩ. Analog voltage output: 0/1 … 5 V , 0/2 … 10 V. Analog current output: 0/4 … 20 mA. Deviation: 0.1 % of full-scale value. Resolution/accuracycurrent: 1 µA/20 µAvoltage: 0.5 mV/10 mVmV: 3 µV/60 µVInfluence of ambient temperature0.003 %/K (30 ppm): . Resolution/accuracy: current: 1 µA/20 µAvoltage: 0.5 mV/10 mVmV: 3 µV/60 µV. Influence of ambient temperature: 0.003 %/K (30 ppm). Reaction time: ≥ 150 ms/≤ 300 ms. Input/Output: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Input/power supply: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Output/power supply: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Display elements: display. Control elements: Control panel. Configuration: via operating buttons. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: 150 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Height119 mmWidth20 mmDepth115 mm: . Height: 119 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
