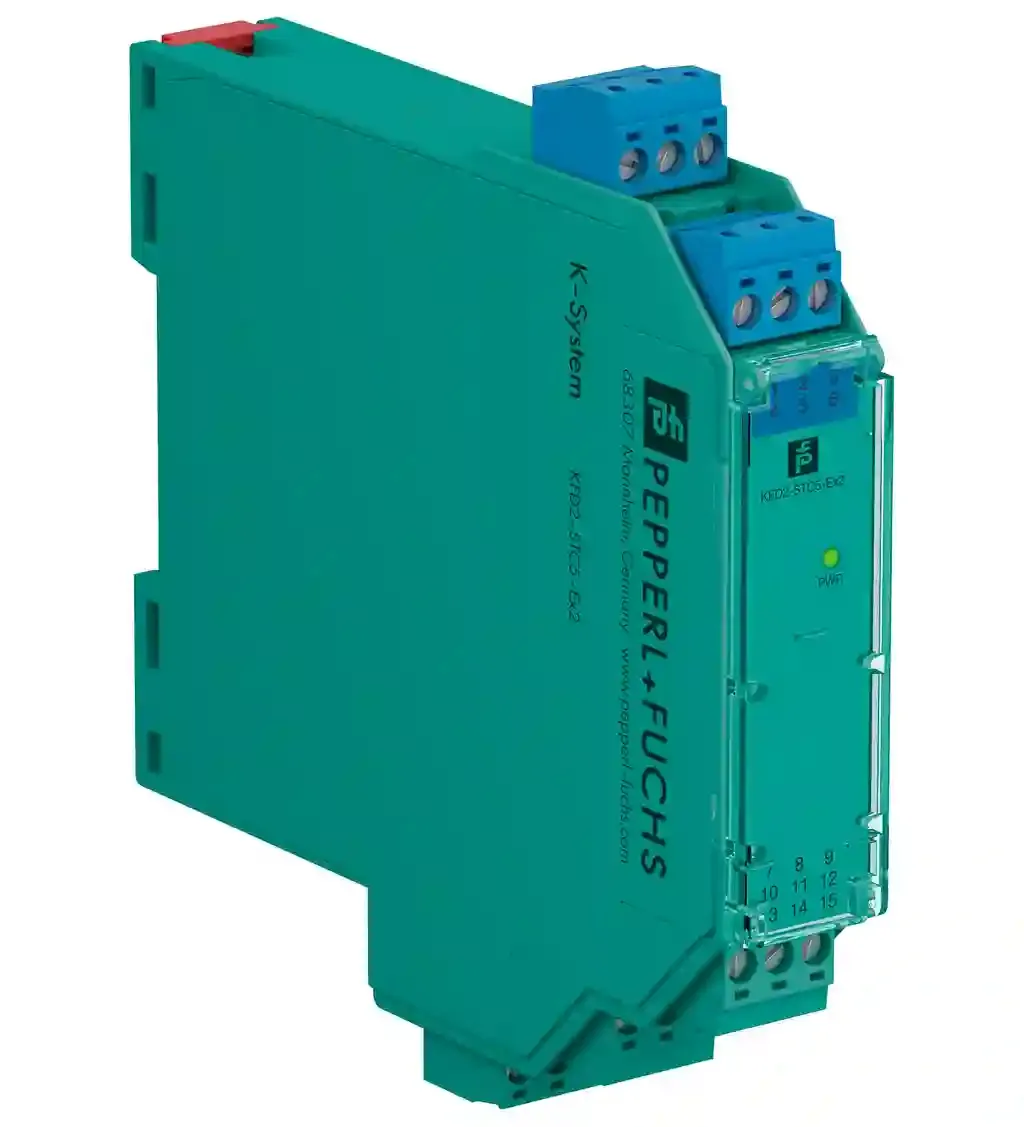

Pepperl Fuchs KFD2-STC5-Ex2

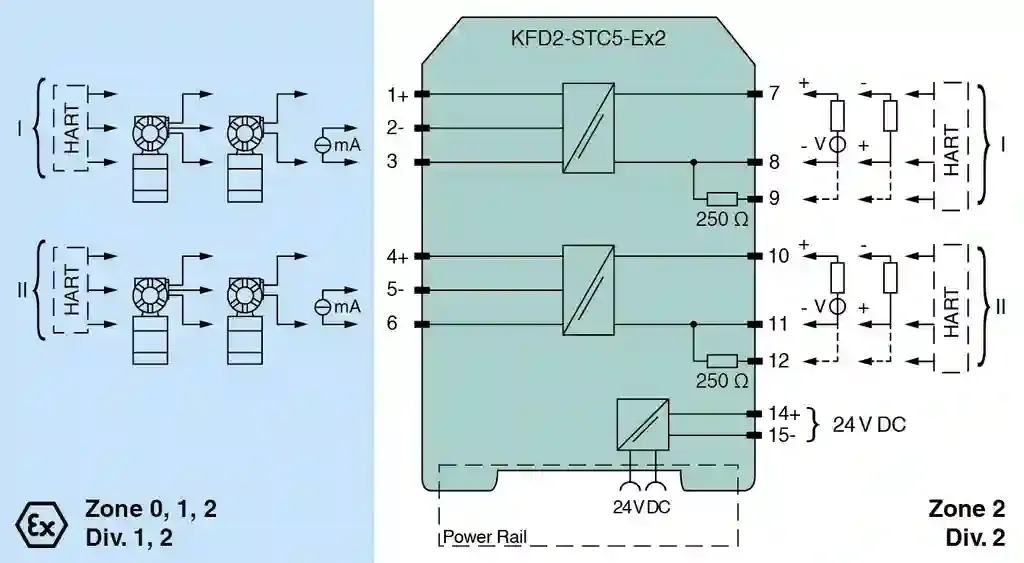

SMART Transmitter Power Supply. 2-channel isolated barrier, 24 V DC supply (Power Rail), Input 2-wire and 3-wire SMART transmitters and 2-wire SMART current sources, Output 4 mA … 20 mA current sink…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SMART Transmitter Power Supply. 2-channel isolated barrier, 24 V DC supply (Power Rail), Input 2-wire and 3-wire SMART transmitters and 2-wire SMART current sources, Output 4 mA … 20 mA current sink/current source, Terminals with test points, Up to SIL 2 (SC 3) acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 2-channel, HART communication, Test sockets, Safety Integrity Level (SIL): SIL 2, Systematic capability (SC): SC 3, Rated voltage: 18 … 30 V DC, Field device: 2-wire transmitter. Signal type: Analog input. Safety Integrity Level (SIL): SIL 2. Systematic capability (SC): SC 3. Connection: Power Rail or terminals 14+, 15-. Rated voltage: 18 … 30 V DC. Ripple: within the supply tolerance. Power dissipation: ≤ 1.4 W at maximum load. Power consumption: ≤ 2.6 W at maximum load. Connection side: field side. Connection: terminals 1+, 2-, 3; 4+, 5-, 6. Input signal: 4 … 20 mA. Open circuit voltage/short-circuit current: terminals 1+, 3; 4+, 6: 23 V / 25 mA. Input resistance: max. 265 Ω terminals 2-, 3; 5-, 6 , max. 330 Ω terminals 1+, 3; 4+, 6. Available voltage: ≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3; 4+, 6. Connection side: control side. Connection: terminals 7+, 8-, 9-; 10+, 11-, 12- (sink)terminals 7-, 8+, 9+; 10-, 11+, 12+ (source) see additional information. Load: 0 … 600 Ω. Output signal: 4 … 20 mA (overload > 25 mA). Ripple: max. 50 µA rms. External supply (loop): 2 … 30 V DC If the external voltage is > 19 V, a load ≥ ((V – 19) / 0.02) Ω is required. V represents the value of the external voltage. The internal 250 Ω resistor at terminals 9 and 12 can be used as a load.. Deviation: at 20 °C (68 °F), 4 … 20 mA≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage. Influence of ambient temperature≤ 0.25 µA/K: . Influence of ambient temperature: ≤ 0.25 µA/K. Frequency range: field side into the control side: band width with 1 Vpp signal 0 … 7.5 kHz (-3 dB) safe area to hazardous area: band width with 1 VSS signal 0.3 … 7.5 kHz (-3 dB). Settling time: 200 µs. Rise time/fall time: 100 µs. Output/power supply: functional insulation, rated insulation voltage 50 V AC. Output/Output: functional insulation, rated insulation voltage 50 V AC. Display elements: LED. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2012 EN 61326-3-2:2008. Degree of protection: IEC 60529:2001. Protection against electrical shock: UL 61010-1:2012. Ambient temperature: -20 … 60 °C (-4 … 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions. Degree of protection: IP20. Connection: screw terminals. Mass: approx. 200 g. Dimensions: 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2. Height124 mmWidth20 mmDepth115 mm: . Height: 124 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: CML 17 ATEX 2031X. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInput[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Input: [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I. Supply: . Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.): Um. Maximum safe voltage: 250 V (Attention! The rated voltage can be lower.). Equipment: terminals 1+, 3-; 4+, 6-. VoltageUo26.2 VVoltageUq27.25 VCurrentIo93 mAPowerPo634 mW: Uo. Voltage: 26.2 V. Voltage: 27.25 V. Current: 93 mA. Power: 634 mW. Equipment: terminals 2-, 3+; 5-, 6+. VoltageUi30 VCurrentIi115 mAPowerPimax 1 WVoltageUo2 VCurrentIo8.5 mAPowerPo4.3 mW: Ui. Voltage: 30 V. Current: 115 mA. Power: max 1 W. Voltage: 2 V. Current: 8.5 mA. Power: 4.3 mW. Equipment: terminals 1+, 2/3-; 4+, 5/6-. VoltageUo26.2 VVoltageUq27.25 VCurrentIo115 mAPowerPo784 mW: Uo. Voltage: 26.2 V. Voltage: 27.25 V. Current: 115 mA. Power: 784 mW. Certificate: CML 17 ATEX 3030X. Marking II 3G Ex ec IIC T4 Gc: . Marking: II 3G Ex ec IIC T4 Gc. Galvanic isolation: . Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V: . Input/Output: safe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V. Input/power supply: safe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012. UL approval: E106378. Control drawing116-0439 (cULus): . Control drawing: 116-0439 (cULus). IECEx approval: . IECEx certificateIECEx CML 17.0016XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc: . IECEx certificate: IECEx CML 17.0016X. IECEx marking: [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
Specification
General specifications
| Signal type | Analog input |
|---|
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 2 |
|---|---|
| Systematic capability (SC) | SC 3 |
Supply
| Connection | Power Rail or terminals 14+, 15- |
|---|---|
| Rated voltage | 18 ... 30 V DC |
| Ripple | within the supply tolerance |
| Power dissipation | ≤ 1.4 W at maximum load |
| Power consumption | ≤ 2.6 W at maximum load |
Input
| Connection side | field side |
|---|---|
| Connection | terminals 1+, 2-, 3; 4+, 5-, 6 |
| Input signal | 4 ... 20 mA |
| Open circuit voltage/short-circuit current | terminals 1+, 3; 4+, 6: 23 V / 25 mA |
| Input resistance | max. 265 Ω terminals 2-, 3; 5-, 6 , max. 330 Ω terminals 1+, 3; 4+, 6 |
| Available voltage | ≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3; 4+, 6 |
Output
| Connection side | control side |
|---|---|
| Connection | terminals 7+, 8-, 9-; 10+, 11-, 12- (sink)terminals 7-, 8+, 9+; 10-, 11+, 12+ (source) see additional information |
| Load | 0 ... 600 Ω |
| Output signal | 4 ... 20 mA (overload > 25 mA) |
| Ripple | max. 50 µA rms |
| External supply (loop) | 2 ... 30 V DC If the external voltage is > 19 V, a load ≥ ((V - 19) / 0.02) Ω is required. V represents the value of the external voltage. The internal 250 Ω resistor at terminals 9 and 12 can be used as a load. |
Transfer characteristics
| Deviation | at 20 °C (68 °F), 4 ... 20 mA≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage |
|---|---|
| Influence of ambient temperature≤ 0.25 µA/K | |
| Influence of ambient temperature | ≤ 0.25 µA/K |
| Frequency range | field side into the control side: band width with 1 Vpp signal 0 ... 7.5 kHz (-3 dB) safe area to hazardous area: band width with 1 VSS signal 0.3 ... 7.5 kHz (-3 dB) |
| Settling time | 200 µs |
| Rise time/fall time | 100 µs |
Galvanic isolation
| Output/power supply | functional insulation, rated insulation voltage 50 V AC |
|---|---|
| Output/Output | functional insulation, rated insulation voltage 50 V AC |
Indicators/settings
| Display elements | LED |
|---|---|
| Labeling | space for labeling at the front |
Directive conformity
| Electromagnetic compatibility | |
|---|---|
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
Conformity
| Electromagnetic compatibility | NE 21:2012 EN 61326-3-2:2008 |
|---|---|
| Degree of protection | IEC 60529:2001 |
| Protection against electrical shock | UL 61010-1:2012 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions |
|---|
Mechanical specifications
| Degree of protection | IP20 |
|---|---|
| Connection | screw terminals |
| Mass | approx. 200 g |
| Dimensions | 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2 |
| Height124 mmWidth20 mmDepth115 mm | |
| Height | 124 mm |
| Width | 20 mm |
| Depth | 115 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 17 ATEX 2031X |
|---|---|
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInput[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I | |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Input | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I |
| Supply | |
| Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.) | Um |
| Maximum safe voltage | 250 V (Attention! The rated voltage can be lower.) |
| Equipment | terminals 1+, 3-; 4+, 6- |
| VoltageUo26.2 VVoltageUq27.25 VCurrentIo93 mAPowerPo634 mW | Uo |
| Voltage | 26.2 V |
| Voltage | 27.25 V |
| Current | 93 mA |
| Power | 634 mW |
| Equipment | terminals 2-, 3+; 5-, 6+ |
| VoltageUi30 VCurrentIi115 mAPowerPimax 1 WVoltageUo2 VCurrentIo8.5 mAPowerPo4.3 mW | Ui |
| Voltage | 30 V |
| Current | 115 mA |
| Power | max 1 W |
| Voltage | 2 V |
| Current | 8.5 mA |
| Power | 4.3 mW |
| Equipment | terminals 1+, 2/3-; 4+, 5/6- |
| VoltageUo26.2 VVoltageUq27.25 VCurrentIo115 mAPowerPo784 mW | Uo |
| Voltage | 26.2 V |
| Voltage | 27.25 V |
| Current | 115 mA |
| Power | 784 mW |
| Certificate | CML 17 ATEX 3030X |
| Marking II 3G Ex ec IIC T4 Gc | |
| Marking | II 3G Ex ec IIC T4 Gc |
| Galvanic isolation | |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V | |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V |
| Input/power supply | safe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V |
| Directive conformity | |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 | |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 |
International approvals
| UL approval | E106378 |
|---|---|
| Control drawing116-0439 (cULus) | |
| Control drawing | 116-0439 (cULus) |
| IECEx approval | |
| IECEx certificateIECEx CML 17.0016XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc | |
| IECEx certificate | IECEx CML 17.0016X |
| IECEx marking | [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
|---|
