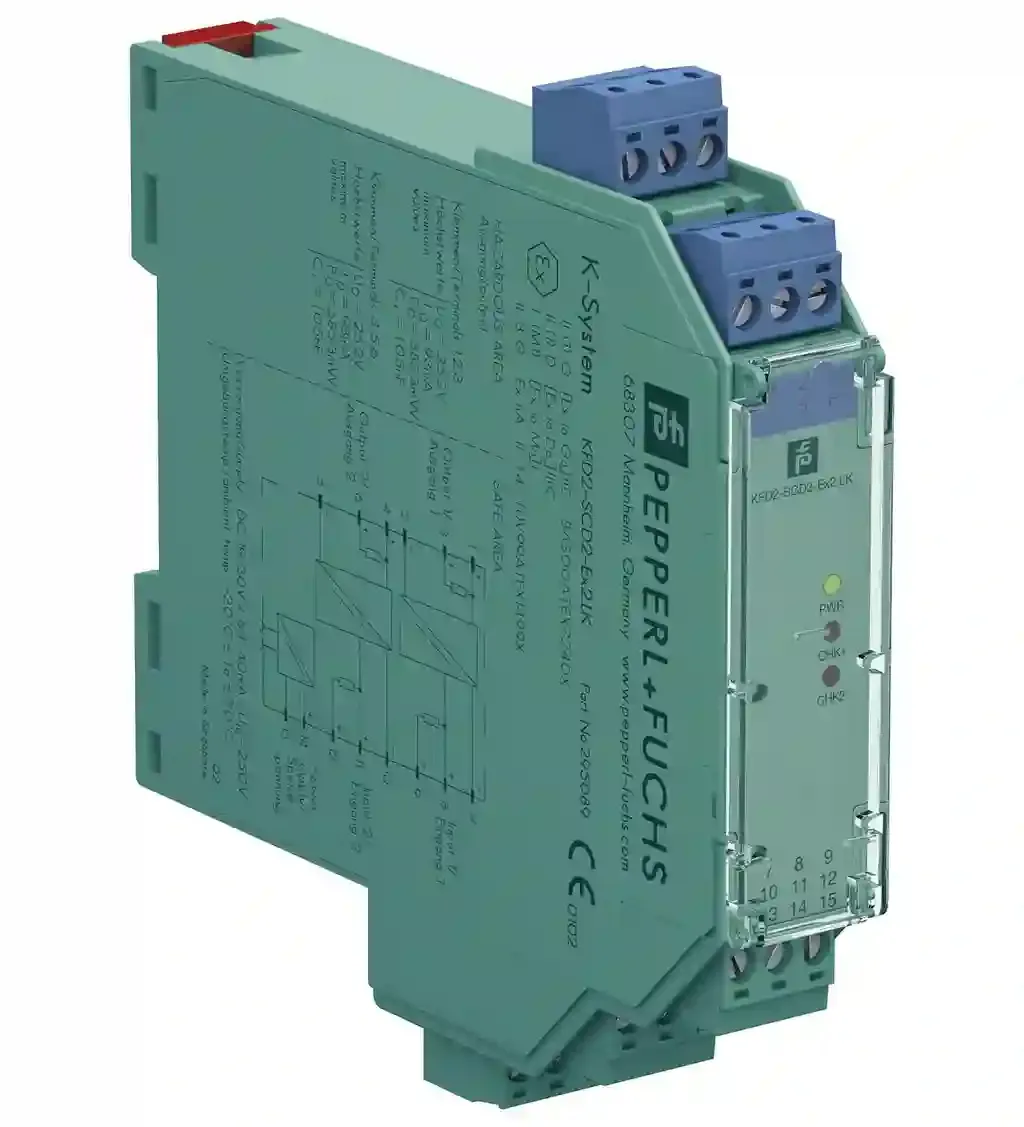

Pepperl Fuchs KFD2-SCD2-Ex2.LK
SMART Current Driver. 2-channel isolated barrier, 24 V DC supply (Power Rail), Current output up to 650 Ω load, HART-IP and valve positioner, Line fault detection (LFD), Accuracy 0.1 %, Up to SIL 2 (S…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SMART Current Driver. 2-channel isolated barrier, 24 V DC supply (Power Rail), Current output up to 650 Ω load, HART-IP and valve positioner, Line fault detection (LFD), Accuracy 0.1 %, Up to SIL 2 (SC 3) acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 2-channel, Transfer direction: to the field, HART communication, Test sockets, Safety Integrity Level (SIL): SIL 2, Systematic capability (SC): SC 3, Rated voltage: 19 … 30 V DC, Signal: 2 x 4 … 20 mA, Line fault detection. Signal type: Analog output. Safety Integrity Level (SIL): SIL 2. Systematic capability (SC): SC 3. Connection: Power Rail or terminals 14+, 15-. Rated voltage: 19 … 30 V DC. Ripple: ≤ 10 %. Rated current: ≤ 45 mA at 24 V. Power dissipation: ≤ 1 W at 20 mA and 500 Ω load. Power consumption: ≤ 1 W. Connection side: control side. Connection: terminals 7-, 8+, (9+); 10-, 11+, (12+). Input signal: 4 … 20 mA , limited to approx. 30 mA. Input voltage: open loop voltage of the control system ≤ 30 V. Voltage drop: approx. 6 V at 20 mA. Input resistance: field wiring open circuit : > 100 kΩ field wiring 100 kΩ when using terminals 1, 2 and 4, 5. Connection side: field side. Connection: terminals 1+, 2-; 4+, 5- terminals 3+, 2-; 6+, 5- (no short circuit detection). Voltage: ≥ 13 V at 20 mA. Current: 4 … 20 mA. Load: 100 … 650 Ω , for terminals 1, 2; 4, 5 0 … 550 Ω , for Terminals 2, 3; 5, 6. Ripple: 20 mV rms. Line fault detection: breakage, load > 100 kΩ, short-circuit, load < 50 Ω. Output type: open collector transistor (internal fault bus). Deviation: at 20 °C (68 °F), 4 … 20 mA< 0.1 % of full scale, incl. non-linearity and hysteresis. Influence of ambient temperature< 2 µA/K (-20 … 70 °C (-4 … 158 °F)); < 4 µA/K (-40 … -20 °C (-40 … -4 °F)): . Influence of ambient temperature: < 2 µA/K (-20 … 70 °C (-4 … 158 °F)); < 4 µA/K (-40 … -20 °C (-40 … -4 °F)). Frequency range: field side into the control side: bandwidth with 0.5 Vpp signal 0 … 3 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0 … 3 kHz (-3 dB). Rise time: 10 to 90 % ≤ 10 ms. Input/Output: basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Input/power supply: basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Output/power supply: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Input/input: functional insulation, rated insulation voltage 50 V AC. Display elements: LEDs. Labeling: space for adhesive label at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2017 EN 61326-3-2:2018. Degree of protection: IEC 60529. Protection against electrical shock: UL 61010-1:2012. Ambient temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 135 g. Dimensions: 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: BAS 00 ATEX 7240 X. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia, Ex iaDVoltageUo25.2 VCurrentIo93 mAPowerPo585.3 mWInternal capacitanceCi1.05 nFInternal inductanceLi 0: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Output: Ex ia, Ex iaD. Voltage: 25.2 V. Current: 93 mA. Power: 585.3 mW. Internal capacitance: 1.05 nF. Internal inductance: 0. Supply: . Maximum safe voltageUm250 V rms (Attention! The rated voltage can be lower.): Um. Maximum safe voltage: 250 V rms (Attention! The rated voltage can be lower.). Input: . Maximum safe voltageUm250 V rms (Attention! The rated voltage can be lower.): Um. Maximum safe voltage: 250 V rms (Attention! The rated voltage can be lower.). Certificate: FIDI 22 ATEX 0002 X. Marking II 3G Ex ec IIC T4 Gc: . Marking: II 3G Ex ec IIC T4 Gc. Galvanic isolation: . Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Input/Output: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Output/power supply: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-11:2012 , EN IEC 60079-7:2015+A1:2018: . Directive 2014/34/EU: EN IEC 60079-0:2018 , EN 60079-11:2012 , EN IEC 60079-7:2015+A1:2018. UL approval: E106378. Control drawing116-0345 (cULus): . Control drawing: 116-0345 (cULus). IECEx approval: . IECEx certificateIECEx BAS 04.0014XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc: . IECEx certificate: IECEx BAS 04.0014X. IECEx marking: [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
Specification
General specifications
| Signal type | Analog output |
|---|
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 2 |
|---|---|
| Systematic capability (SC) | SC 3 |
Supply
| Connection | Power Rail or terminals 14+, 15- |
|---|---|
| Rated voltage | 19 ... 30 V DC |
| Ripple | ≤ 10 % |
| Rated current | ≤ 45 mA at 24 V |
| Power dissipation | ≤ 1 W at 20 mA and 500 Ω load |
| Power consumption | ≤ 1 W |
Input
| Connection side | control side |
|---|---|

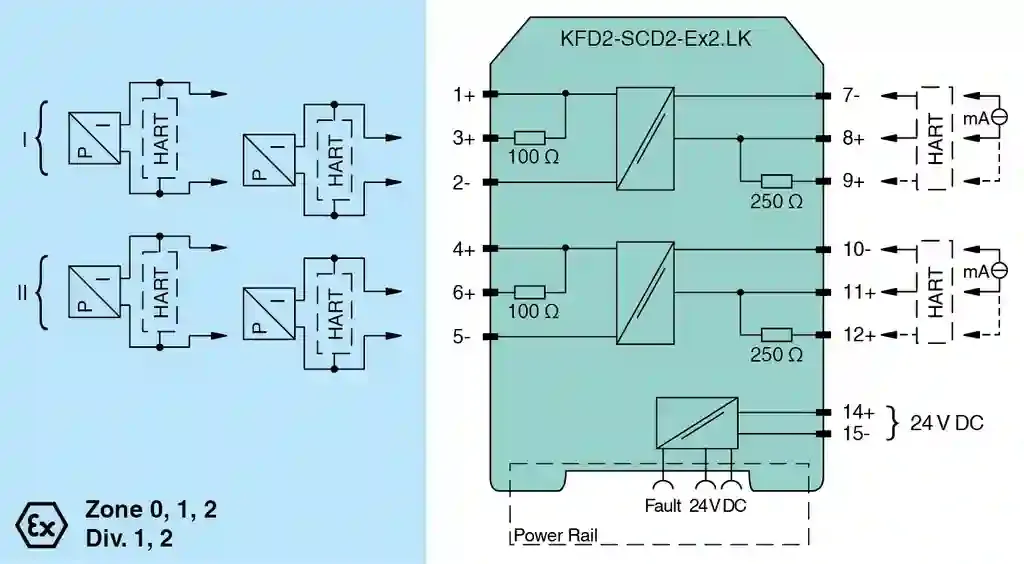

| Connection | terminals 7-, 8+, (9+); 10-, 11+, (12+) |
| Input signal | 4 ... 20 mA , limited to approx. 30 mA |
| Input voltage | open loop voltage of the control system ≤ 30 V |
| Voltage drop | approx. 6 V at 20 mA |
| Input resistance | field wiring open circuit : > 100 kΩ field wiring < 50 Ω : > 100 kΩ when using terminals 1, 2 and 4, 5 |
Output
| Connection side | field side |
|---|---|
| Connection | terminals 1+, 2-; 4+, 5- terminals 3+, 2-; 6+, 5- (no short circuit detection) |
| Voltage | ≥ 13 V at 20 mA |
| Current | 4 ... 20 mA |
| Load | 100 ... 650 Ω , for terminals 1, 2; 4, 5 0 ... 550 Ω , for Terminals 2, 3; 5, 6 |
| Ripple | 20 mV rms |
| Line fault detection | breakage, load > 100 kΩ, short-circuit, load < 50 Ω |
Fault indication output
| Output type | open collector transistor (internal fault bus) |
|---|
Transfer characteristics
| Deviation | at 20 °C (68 °F), 4 ... 20 mA< 0.1 % of full scale, incl. non-linearity and hysteresis |
|---|---|
| Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F)) | |
| Influence of ambient temperature | < 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F)) |
| Frequency range | field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB) |
| Rise time | 10 to 90 % ≤ 10 ms |
Galvanic isolation
| Input/Output | basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
|---|---|
| Input/power supply | basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Output/power supply | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Input/input | functional insulation, rated insulation voltage 50 V AC |
Indicators/settings
| Display elements | LEDs |
|---|---|
| Labeling | space for adhesive label at the front |
Directive conformity
| Electromagnetic compatibility | |
|---|---|
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
Conformity
| Electromagnetic compatibility | NE 21:2017 EN 61326-3-2:2018 |
|---|---|
| Degree of protection | IEC 60529 |
| Protection against electrical shock | UL 61010-1:2012 |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
|---|
Mechanical specifications
| Degree of protection | IP20 |
|---|---|
| Connection | screw terminals |
| Mass | approx. 135 g |
| Dimensions | 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
Data for application in connection with hazardous areas
| EU-type examination certificate | BAS 00 ATEX 7240 X |
|---|---|
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia, Ex iaDVoltageUo25.2 VCurrentIo93 mAPowerPo585.3 mWInternal capacitanceCi1.05 nFInternal inductanceLi 0 | |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Output | Ex ia, Ex iaD |
| Voltage | 25.2 V |
| Current | 93 mA |
| Power | 585.3 mW |
| Internal capacitance | 1.05 nF |
| Internal inductance | 0 |
| Supply | |
| Maximum safe voltageUm250 V rms (Attention! The rated voltage can be lower.) | Um |
| Maximum safe voltage | 250 V rms (Attention! The rated voltage can be lower.) |
| Input | |
| Maximum safe voltageUm250 V rms (Attention! The rated voltage can be lower.) | Um |
| Maximum safe voltage | 250 V rms (Attention! The rated voltage can be lower.) |
| Certificate | FIDI 22 ATEX 0002 X |
| Marking II 3G Ex ec IIC T4 Gc | |
| Marking | II 3G Ex ec IIC T4 Gc |
| Galvanic isolation | |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Output/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | |
| Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-11:2012 , EN IEC 60079-7:2015+A1:2018 | |
| Directive 2014/34/EU | EN IEC 60079-0:2018 , EN 60079-11:2012 , EN IEC 60079-7:2015+A1:2018 |
International approvals
| UL approval | E106378 |
|---|---|
| Control drawing116-0345 (cULus) | |
| Control drawing | 116-0345 (cULus) |
| IECEx approval | |
| IECEx certificateIECEx BAS 04.0014XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc | |
| IECEx certificate | IECEx BAS 04.0014X |
| IECEx marking | [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
|---|
