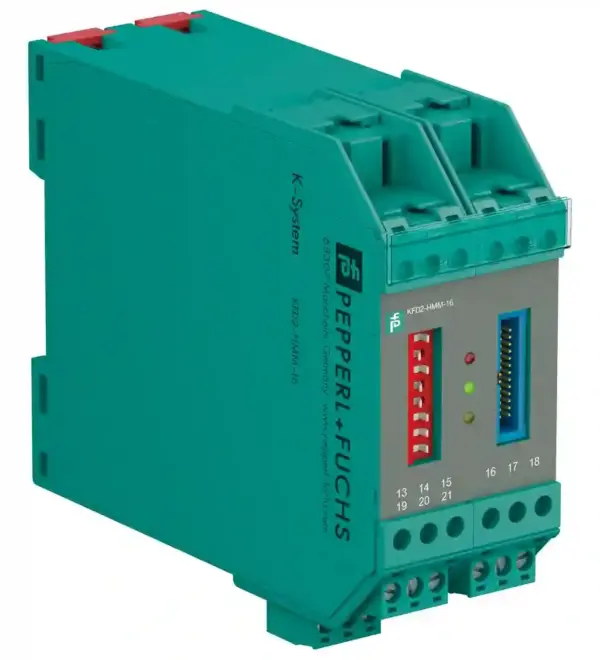

Pepperl Fuchs KFD2-HMM-16

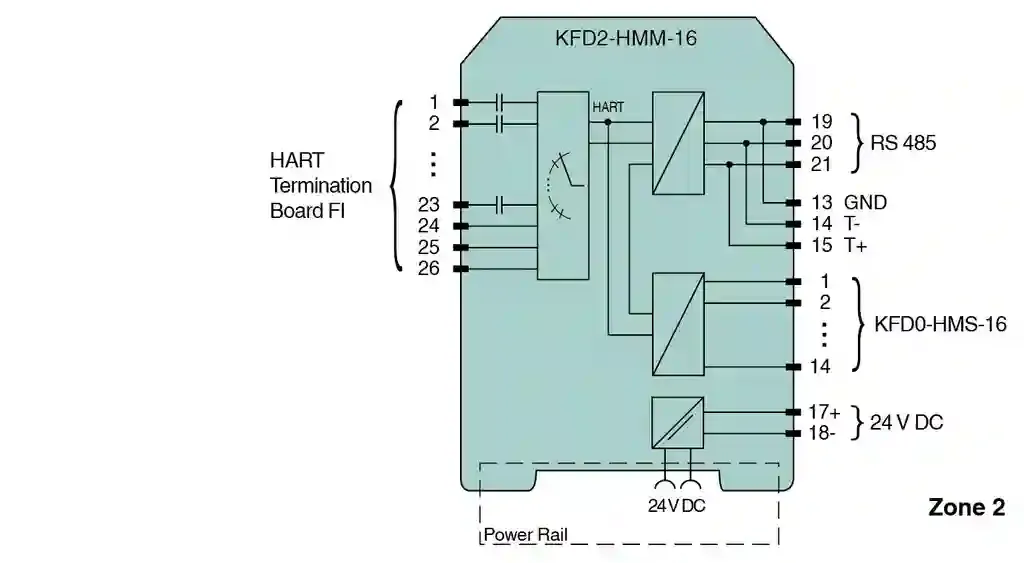

HART MUX Primary Module. 16-channel, 24 V DC supply (Power Rail), HART field device input (revision 5 to 7), Up to 15 KFD0-HMS-16 HART MUX secondary modules can be connected, Up to SIL 3 acc. to IEC/EN 61508. Safety Integrity Level (SIL): SIL 3. Connection: terminals 17+, 18-. Rated voltage: 20 … 32 V DC typical at 100 mA. Power consumption: max. 3 W. Conformity: HART field device input (revision 5 to 7). Connection: 26-pin flat cable for analog connections 14-pin flat cable for primary module/secondary module connection between KFD2-HMM-16 and KFD0-HMS-16. Leakage current: < 3 µA at -20 … 85 °C (-4 … 185 °F). Terminating resistor: external 230 … 500 Ω standard (up to 1000 Ω possible). Output voltage: ≥ 400 mV ss (with the terminator resistance specified above). Output resistance: 100 Ω or smaller, capacitive coupling. Input impedance: according to HART specification. Input voltage range: 0.08 … 4 V ss ; typ. ± 5.2 V as local reference. Transfer rate: 9600, 19200, or 38400 Bit/s (selectable with DIL switch (2 and 3) by the user). Type: RS-485 , 2-wire multidrop. Address selection: One of 31 possible addresses selectable per DIL switch (4 … 8). Control elements: DIP switch. Configuration: via DIP switches. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Degree of protection: IEC 60529:2001. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 250 g. Dimensions: 40 x 107 x 115 mm (1.6 x 4.2 x 4.5 inch) (W x H x D) , housing type C1. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Certificate: PF 07 CERT 1143 X. Marking II 3G Ex nA IIC T4 Gc: . Marking: II 3G Ex nA IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-15:2010. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
