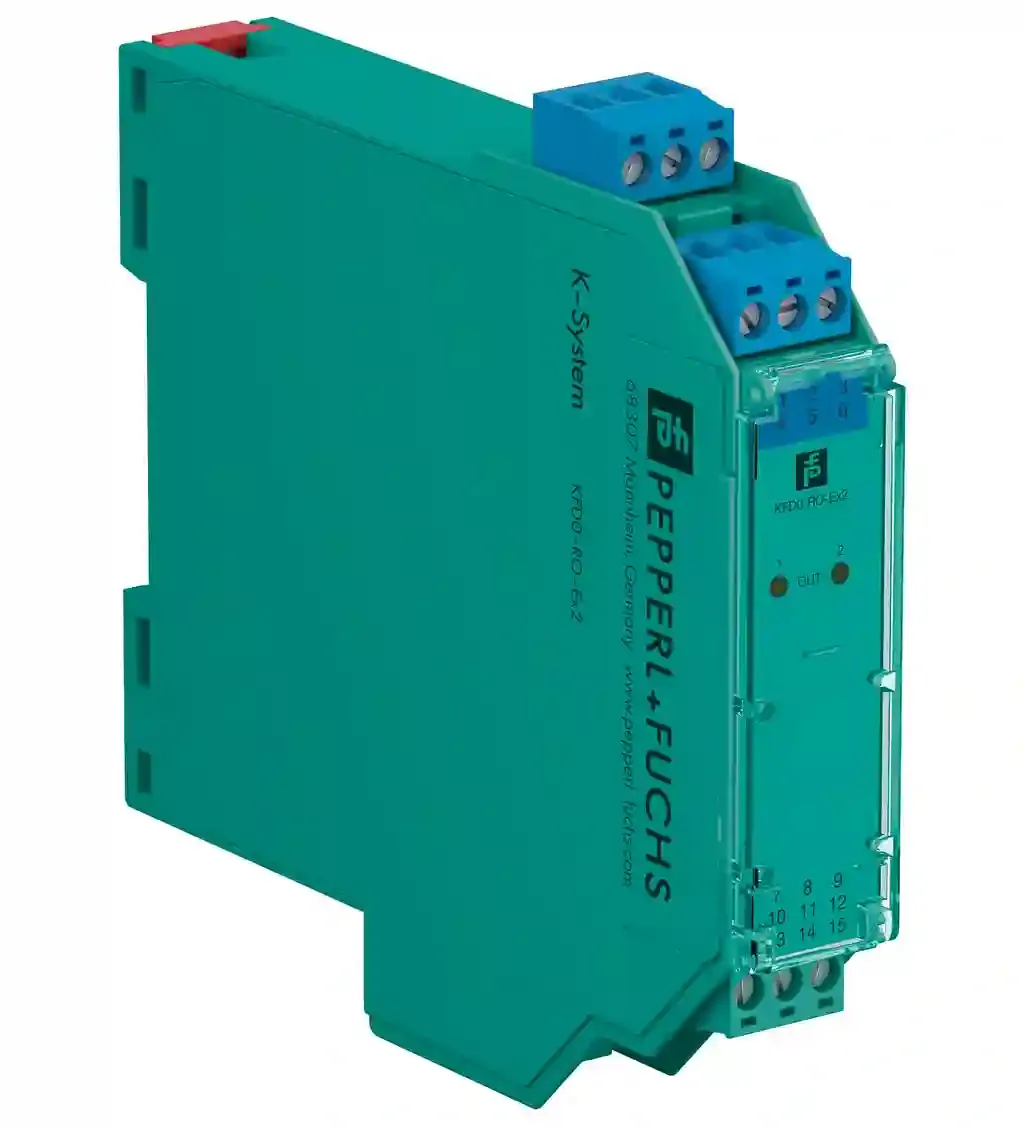

Pepperl Fuchs KFD0-RO-Ex2

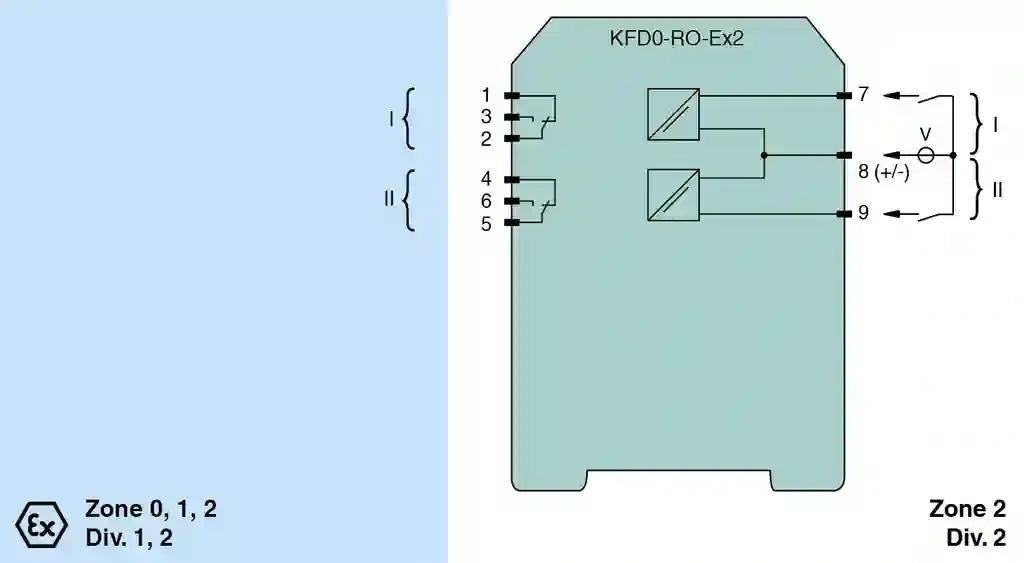

Relay Module. 2-channel isolated barrier, 24 V DC supply (loop powered), Logic input 15 V DC … 30 V DC, non-polarized, Relay contact output, Up to SIL 3 acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 2-channel, Safety Integrity Level (SIL): SIL 3, Rated voltage: 15 … 30 V DC , loop powered, Type: 2 x logic input, Type: 2 x relay (change-over contact). Signal type: Digital Output. Safety Integrity Level (SIL): SIL 3. Rated voltage: 15 … 30 V DC , loop powered. Power dissipation: 0.8 W. Connection side: control side. Connection: terminals 7, 8, 9. Input voltage: 15 … 30 V DC. Input current: ≤ 21 mA per channel. Safety note: Attention! Combination of output Ex i with output not Ex i is not permitted.If load voltage > 50 V, de-energize before removing the terminals.. Connection side: field side. Connection: terminals 1, 2, 3; 4, 5, 6. Contact loading: 230 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load. Energized/De-energized delay: approx. 10 ms / approx. 5 ms. Mechanical life: 5 x 106 switching cycles. Switching frequency: < 10 Hz. Input/Output: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Output/Output: basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Display elements: LEDs. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Electromagnetic compatibility: NE 21:2006. Degree of protection: IEC 60529:2001. Ambient temperature: -20 … 65 °C (-4 … 149 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 100 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: DMT 00 ATEX E 016. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx iaVoltageUi60 VCurrentIi2 A: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Output: Ex ia. Voltage: 60 V. Current: 2 A. Input: . Maximum safe voltageUm40 V DC (Attention! Um is no rated voltage.): Um. Maximum safe voltage: 40 V DC (Attention! Um is no rated voltage.). Output: . Contact loading50 V AC/2 A ; 40 V DC/2 A (TÜV 00 ATEX 1621 X): . Contact loading: 50 V AC/2 A ; 40 V DC/2 A (TÜV 00 ATEX 1621 X). Certificate: TÜV 00 ATEX 1621 X. Marking II 3G Ex nA nC IIC T4: . Marking: II 3G Ex nA nC IIC T4. Galvanic isolation: . Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 V: . Input/Output: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Output/Output: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010. FM approval: . Control drawing116-0261: . Control drawing: 116-0261. CSA approval: . Control drawing116-0156: . Control drawing: 116-0156. IECEx approval: . IECEx certificateIECEx BVS 10.0025IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I: . IECEx certificate: IECEx BVS 10.0025. IECEx marking: [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
