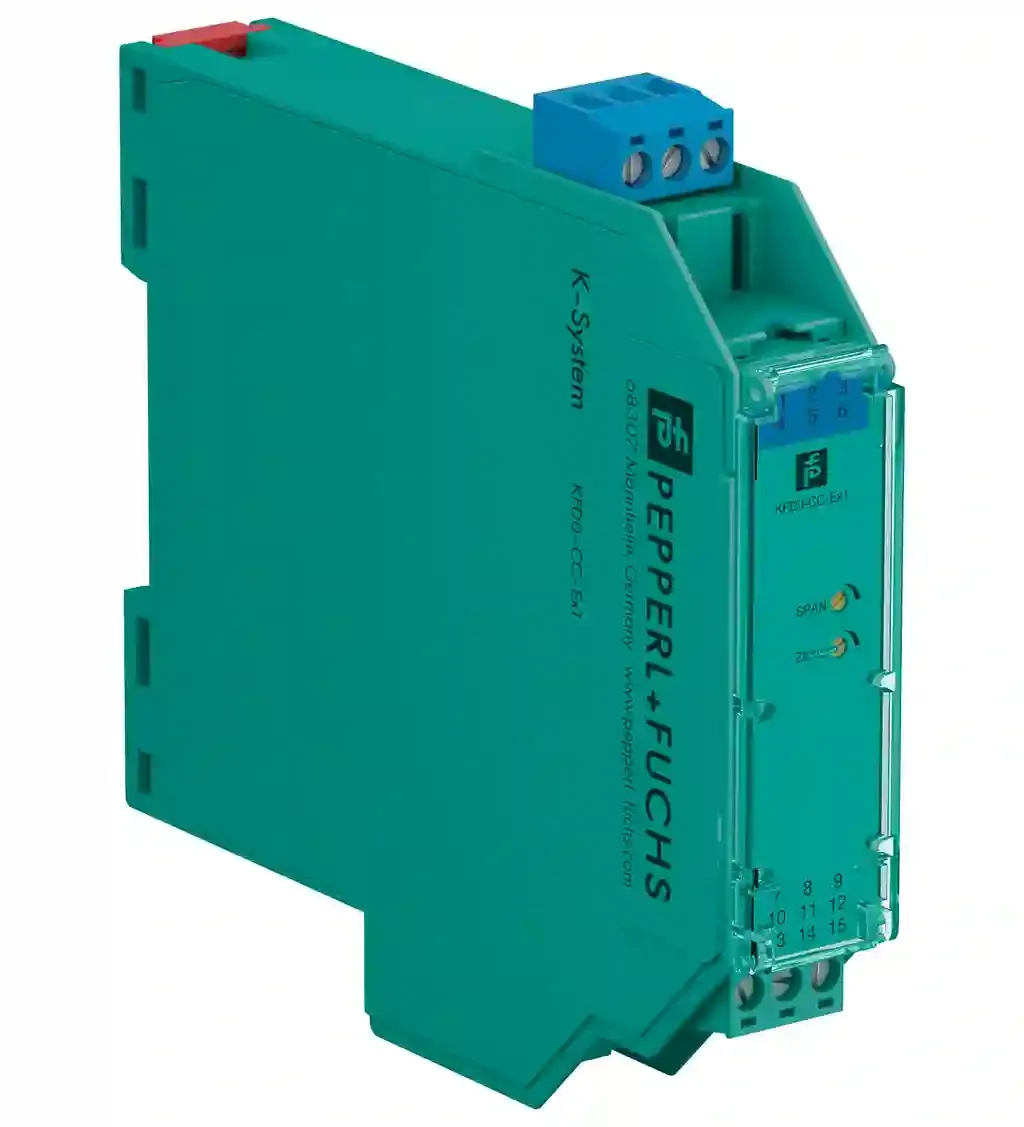

Pepperl Fuchs KFD0-CC-Ex1

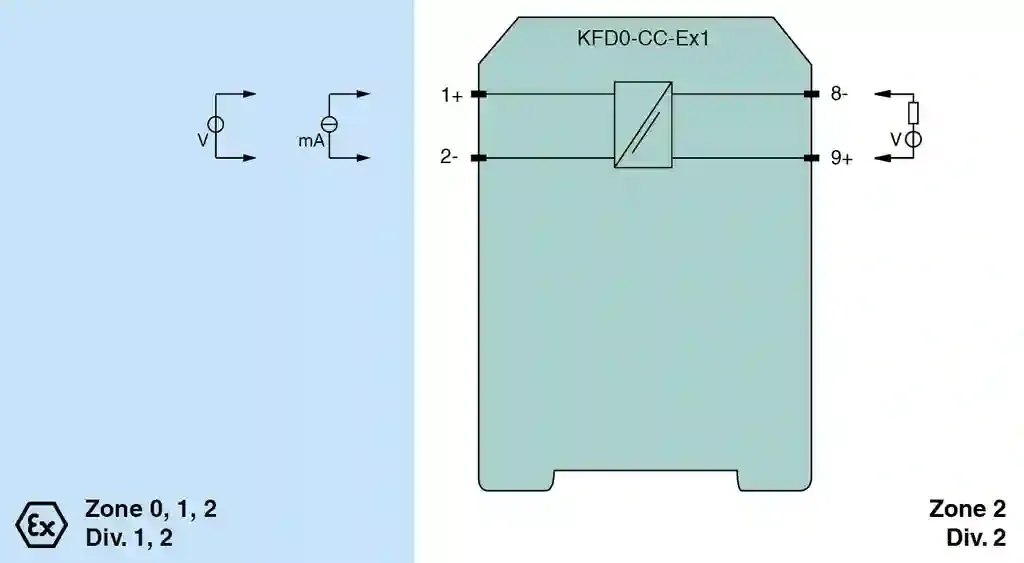

Current/Voltage Converter. 1-channel isolated barrier, 24 V DC supply (loop powered), Current or voltage input, Output: 4 … 20 mA, Potentiometer or DIP switch selectable ranges, Line fault detection (LFD), Housing width: 20 mm, Number of channels: 1-channel, Rated voltage: 12 … 35 V DC loop powered, Signal: 1 x 4 … 20 mA (current sink). Signal type: Analog input. Rated voltage: 12 … 35 V DC loop powered. Power dissipation: 0.4 W. Connection side: field side. Connection: terminals 1+, 2-. Current range: 0 … 20 mA , load ≤ 50 Ω. Voltage range: 0 … 10 V , load ≥ 100 kΩ. Connection side: control side. Connection: terminals 9+, 8-. Load: (U -12 V) / 0.02 A. Current output: 4 … 20 mA , limited to ≤ 35 mA. Fault signal: downscaling ≤ 3 mA. Deviation: . After calibration0.1 % of full-scale valueTemperature effect span: 0.050 % of span /K ; zero point: 0.060 % of span /KLinearization≤ 0.04 % of full-scale valueInfluence of supply voltage6.5 ppm/V: . After calibration: 0.1 % of full-scale value. Temperature effect: span: 0.050 % of span /K ; zero point: 0.060 % of span /K. Linearization: ≤ 0.04 % of full-scale value. Influence of supply voltage: 6.5 ppm/V. Rise time: 250 ms. Input/Output: safe isolation according to EN 50178, rated insulation voltage 253 Veff. Control elements: DIP switch potentiometer. Configuration: via DIP switches via potentiometer. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Galvanic isolation: EN 50178:1997. Degree of protection: IEC 60529:2001. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 100 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Height119 mmWidth20 mmDepth115 mm: . Height: 119 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: ZELM 00 ATEX 0034. Marking II (1)GD [EEx ia] IICInputEEx ia IICVoltageUo9.6 VCurrentIo0.5 mAPowerPo1.1 mW linear characteristic: . Marking: II (1)GD [EEx ia] IIC. Input: EEx ia IIC. Voltage: 9.6 V. Current: 0.5 mA. Power: 1.1 mW linear characteristic. Output: . Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.): Um. Maximum safe voltage: 60 V (Attention! The rated voltage can be lower.). Certificate: TÜV 01 ATEX 1777 X. Marking II 3G Ex nA II T4: . Marking: II 3G Ex nA II T4. Galvanic isolation: . Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Input/Output: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010. CSA approval: . Control drawing116-0132: . Control drawing: 116-0132. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
