Pepperl Fuchs KFD0-CC-1

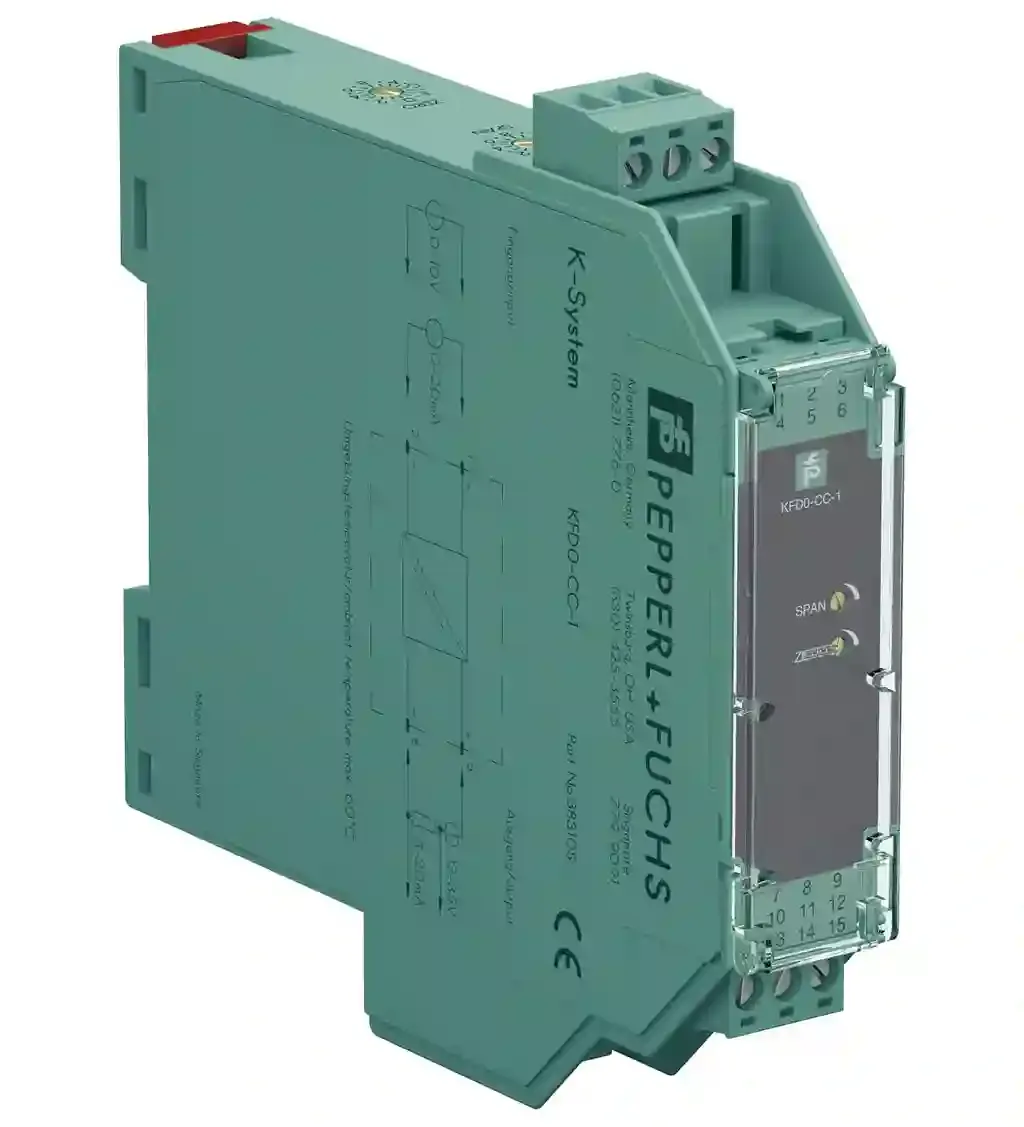

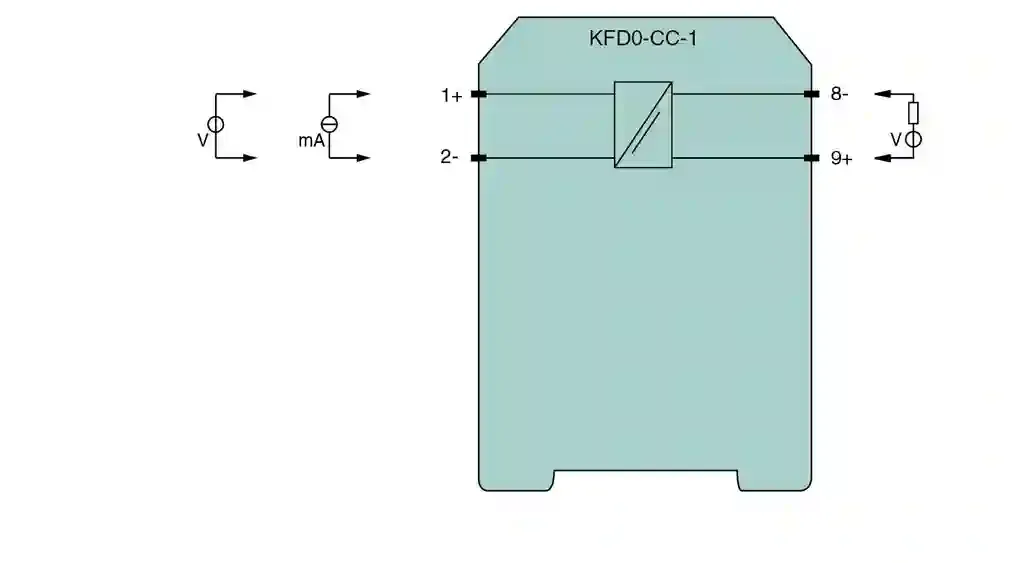

Current/Voltage Converter. 1-channel signal conditioner, 24 V DC supply (loop powered), Current or voltage input, Output: 4 … 20 mA, Potentiometer or DIP switch selectable ranges, Line fault detection (LFD), Housing width: 20 mm, Number of channels: 1-channel, Rated voltage: 12 … 35 V DC loop powered, Signal: 1 x 4 … 20 mA (current sink). Signal type: Analog input. Rated voltage: 12 … 35 V DC loop powered. Power dissipation: 0.4 W. Connection side: field side. Connection: terminals 1+, 2-. Current range: 0 … 20 mA , load ≤ 50 Ω. Voltage range: 0 … 10 V , load ≥ 100 kΩ. Connection side: control side. Connection: terminals 9+, 8-. Load: (U -12 V) / 0.02 A. Current output: 4 … 20 mA , limited to ≤ 35 mA. Fault signal: downscaling ≤ 3 mA. Deviation: . After calibration0.1 % of full-scale valueTemperature effect span: 0.050 % of span /K ; zero point: 0.060 % of span /KLinearization≤ 0.04 % of full-scale valueInfluence of supply voltage6.5 ppm/V: . After calibration: 0.1 % of full-scale value. Temperature effect: span: 0.050 % of span /K ; zero point: 0.060 % of span /K. Linearization: ≤ 0.04 % of full-scale value. Influence of supply voltage: 6.5 ppm/V. Rise time: 250 ms. Input/Output: safe isolation according to EN 50178, rated insulation voltage 253 Veff. Control elements: DIP switch potentiometer. Configuration: via DIP switches via potentiometer. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Insulation coordination: EN 50178. Galvanic isolation: EN 50178. Degree of protection: IEC 60529. Ambient temperature: -20 … 70 °C (-4 … 158 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 100 g. Dimensions: 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1. Height107 mmWidth20 mmDepth115 mm: . Height: 107 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
