Pepperl Fuchs KF-CTT-3GN2BU
Terminal Block with Test Plug Socket. 3-pin spring terminal with push-in connection technology, For KF modules of K-System, Integrated test sockets for connection of HART communicators, Packaging unit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Terminal Block with Test Plug Socket. 3-pin spring terminal with push-in connection technology, For KF modules of K-System, Integrated test sockets for connection of HART communicators, Packaging unit: 3 pieces green, 2 pieces blue. Number of pins: 3. Core cross section: max. 2.5 mm2. Material: . Colorblue , green: . Color: blue , green. Mass: approx. 5 g. Dimensions: 15.1 x 15 x 25.1 mm (0.6 x 0.6 x 1 inch). Construction type: spring terminal with integrated test sockets , removable. Structure: one-rowed. Packing unit: 5 item(s)
Specification
General specifications
| Number of pins | 3 |
|---|
Mechanical specifications
| Core cross section | max. 2.5 mm2 |
|---|---|
| Material | |
| Colorblue , green | |
| Color | blue , green |
| Mass | approx. 5 g |

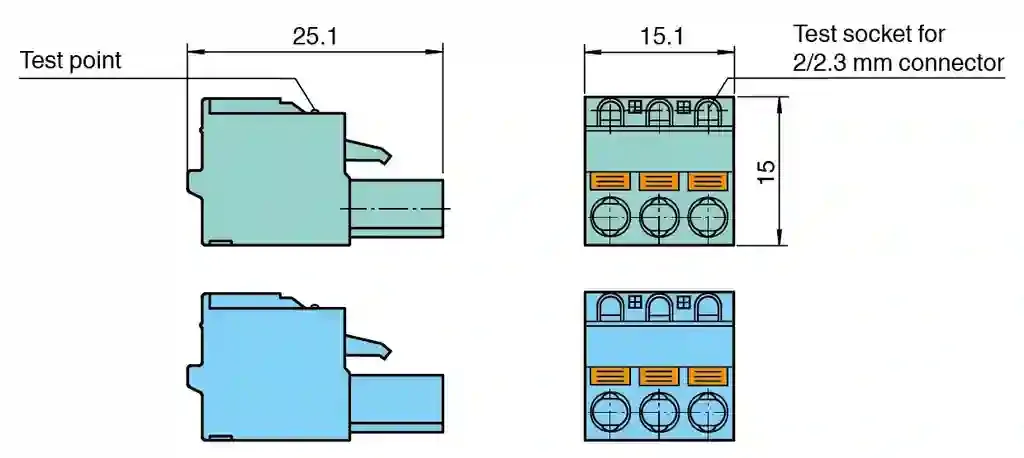

| Dimensions | 15.1 x 15 x 25.1 mm (0.6 x 0.6 x 1 inch) |
| Construction type | spring terminal with integrated test sockets , removable |
| Structure | one-rowed |
General information
| Packing unit | 5 item(s) |
|---|
