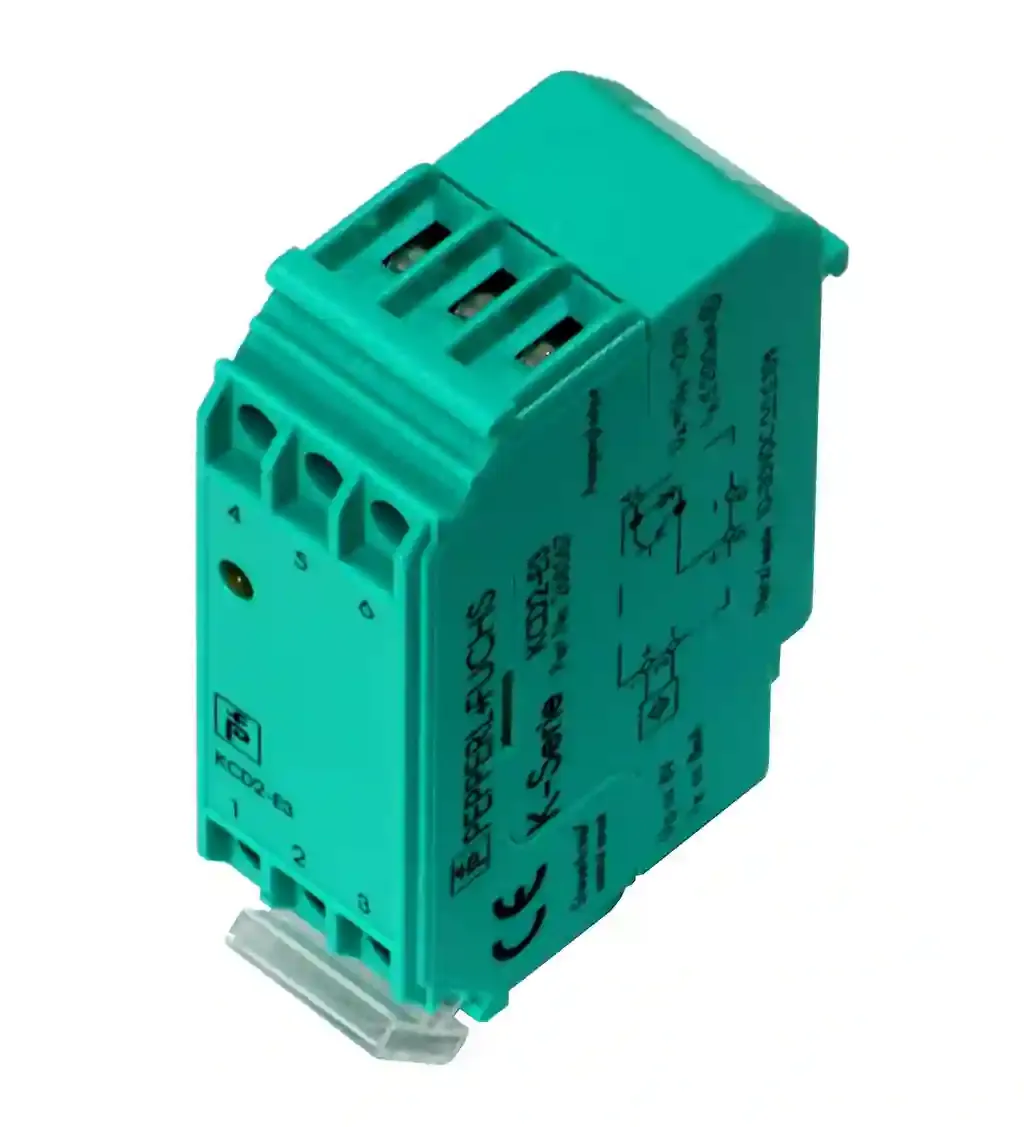

Pepperl Fuchs KCD2-E3

Sensor output interface terminal. 1-channel terminal amplifier, NAMUR sensor input, DC 24 V supply voltage, Standard interface for prevention of signal transmission errors, Switching status indicator, yellow LED, Operating voltage: 10 … 30 V DC, Connectable sensor types: NAMUR, Transistor: PNP. MTTFd: 916 a. LED yellow: switch output. Operating voltage: 10 … 30 V DC. Ripple: ≤ 10 %. Operating current: approx. 22 mA. Connection: terminals 1+, 2-. Connectable sensor types: NAMUR. Pulse length/pulse interval: ≥ 0.5 ms / ≥ 0.5 ms. Short-circuit current: approx. 8 mA. Sensor supply: 8 V DC. Switching point: 1.2 … 2.1 mA hysteresis approx. 0.2 mA. Line fault detection: without. Trip value: 1 kHz. Connection: terminal 4+. Current: 200 mA short-circuit protected. Transistor: PNP. Signal level: UB – 1.1V. Mode of operation: NC contact. Switching frequency: 1 kHz. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Degree of protection: EN 60529:2000. Noise immunity: EN 61326-1:2013. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -25 … 85 °C (-13 … 185 °F). Connection: self-opening apparatus connection terminals, max. core cross-section 0.34 … 2.5 mm2. Mass: 60 g. Dimensions: 20x60x40(in mm)
