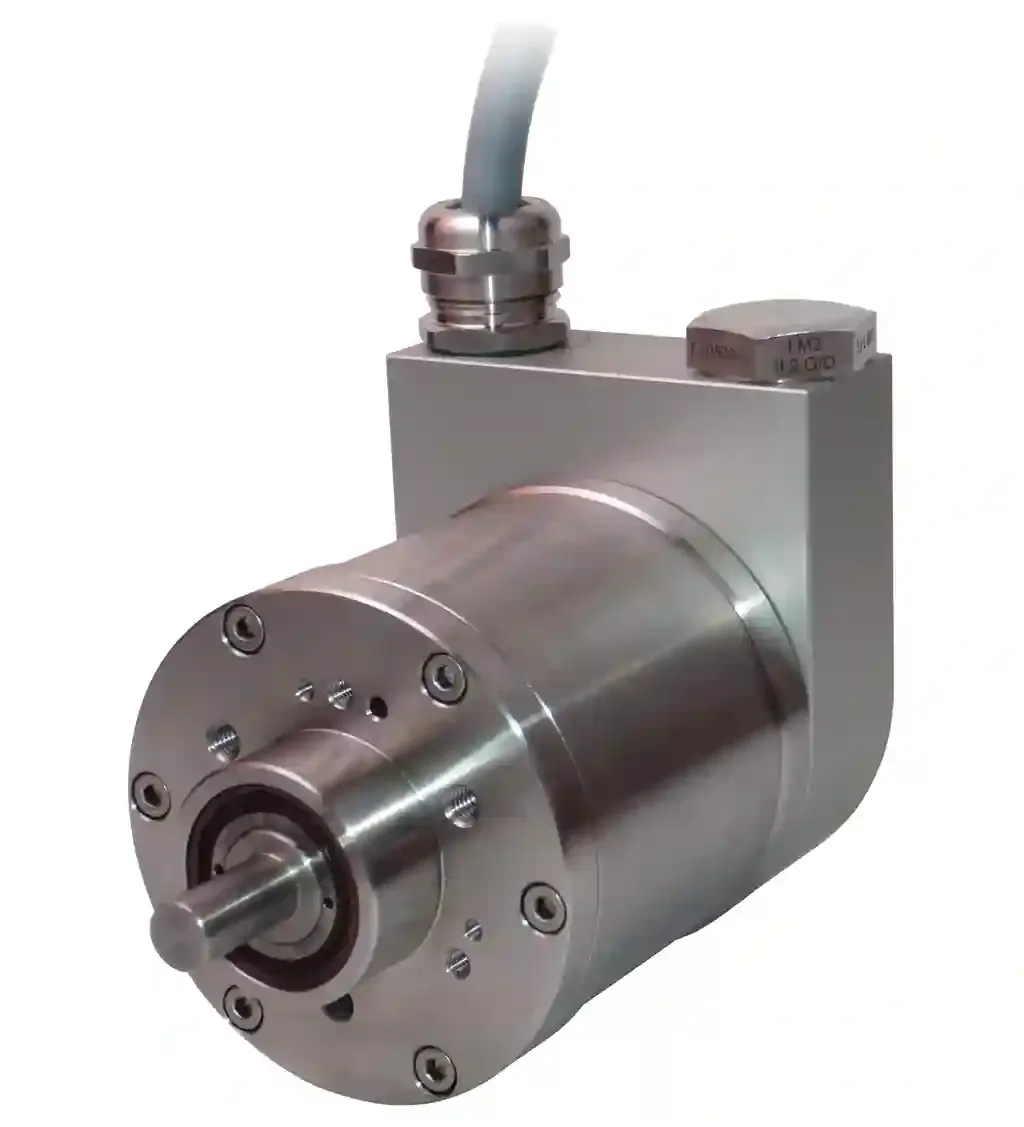

Pepperl Fuchs IVM78E

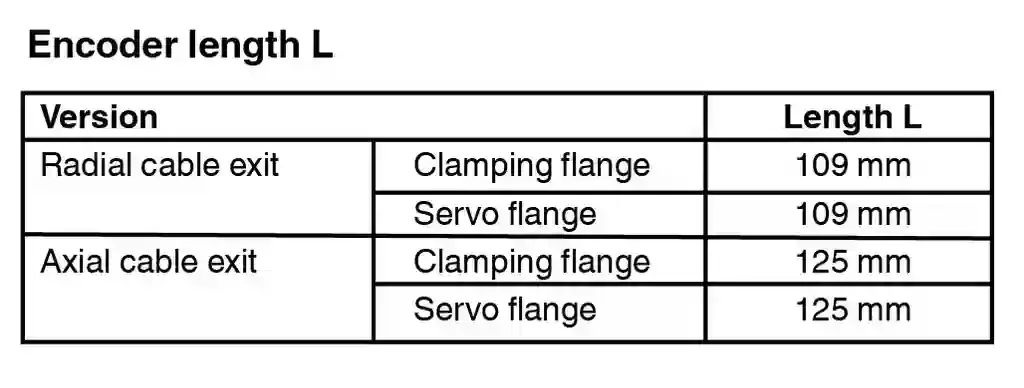

Multiturn absolute rotary encoder. 4 Bit multiturn, ATEX approval, IECEx approval, Flameproof enclosure, Removable connection cap, Enclosure type: 78 mm, Type of shaft: Solid shaft, Interface: Analog output, Detection type: magnetic sampling, Input type: lower limit of measuring range (Set 1), Output type: 1 analog output, current. Detection type: magnetic sampling. Device type: Multiturn absolute rotary encoder. Measuring range: min. 0 … 22.5 ° max. 16 x 360 °. Resolution: 16 Bit (12 bits/revolution). MTTFd: 470 a. L10: 7.7 E+9 at 3000 rpm. Operating voltage: 10 … 30 V DC. Current consumption: typ. 40 mA. Input type: lower limit of measuring range (Set 1). Signal voltage: . High15 … 30 V DC: . High: 15 … 30 V DC. Signal duration: min. 1 s. Input type: upper limit of measuring range (Set 2). Signal voltage: . High15 … 30 V DC: . High: 15 … 30 V DC. Signal duration: min. 1 s. Output type: 1 analog output, current. Default setting: rising ramp at ccw rotation. Linearity error: ≤ 0.15 %. Load resistor: max. 500 Ω ; Max. value for operating voltage 15 V. For higher operating voltage higher load resistance can be used.. Terminal compartment: see ordering information. Degree of protection: DIN EN 60529, IP66. Climatic testing: DIN EN 60068-2-78 , no moisture condensation. Emitted interference: EN 61000-6-4:2007/A1:2011. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 … 1000 Hz. IECEx approval: . Equipment protection level GbIECEx ITS 15.0061X: . Equipment protection level Gb: IECEx ITS 15.0061X. ATEX approval: . Equipment protection level GbITS 15 ATEX 18372X: . Equipment protection level Gb: ITS 15 ATEX 18372X. Operating temperature: -40 … 70 °C (-40 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Material: . Combination 1housing: anodized aluminum flange: anodized aluminum shaft: Stainless steel 1.4404 / AISI 316LCombination 2 (Inox)housing: Stainless steel 1.4404 / AISI 316L flange: Stainless steel 1.4404 / AISI 316L shaft: Stainless steel 1.4404 / AISI 316LHousingnickel-plated steelFlangeAluminumShaftStainless steel: . Combination 1: housing: anodized aluminum flange: anodized aluminum shaft: Stainless steel 1.4404 / AISI 316L. Combination 2 (Inox): housing: Stainless steel 1.4404 / AISI 316L flange: Stainless steel 1.4404 / AISI 316L shaft: Stainless steel 1.4404 / AISI 316L. Housing: nickel-plated steel. Flange: Aluminum. Shaft: Stainless steel. Mass: approx. 2600 g (combination 1) approx. 3900 g (combination 2). Rotational speed: max. 3000 min -1. Moment of inertia: 180 gcm2. Starting torque: ≤ 4 Ncm. Shaft load: . Axial60 NRadial80 N: . Axial: 60 N. Radial: 80 N. Use in the hazardous area: see instruction manuals
