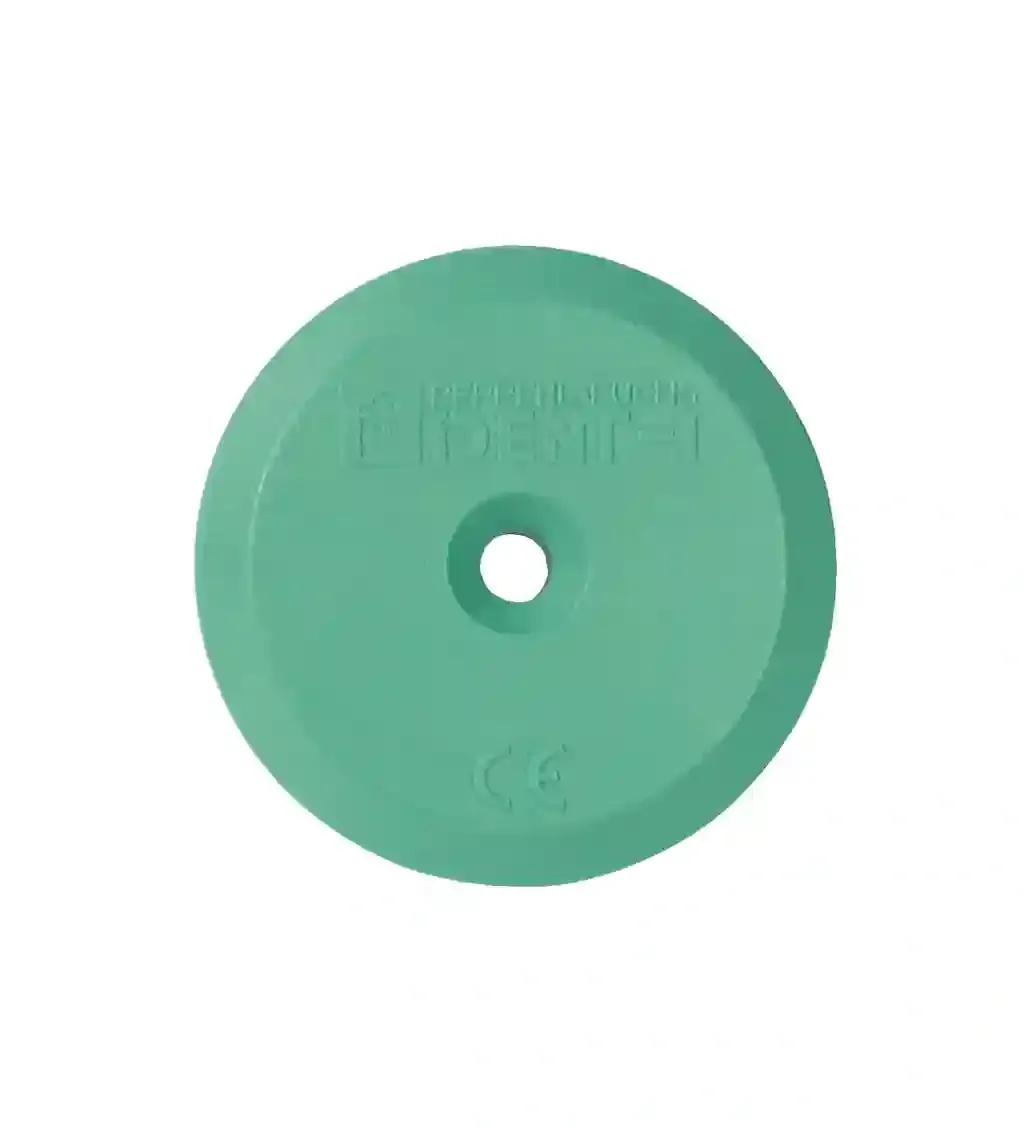

Pepperl Fuchs IQC21-58

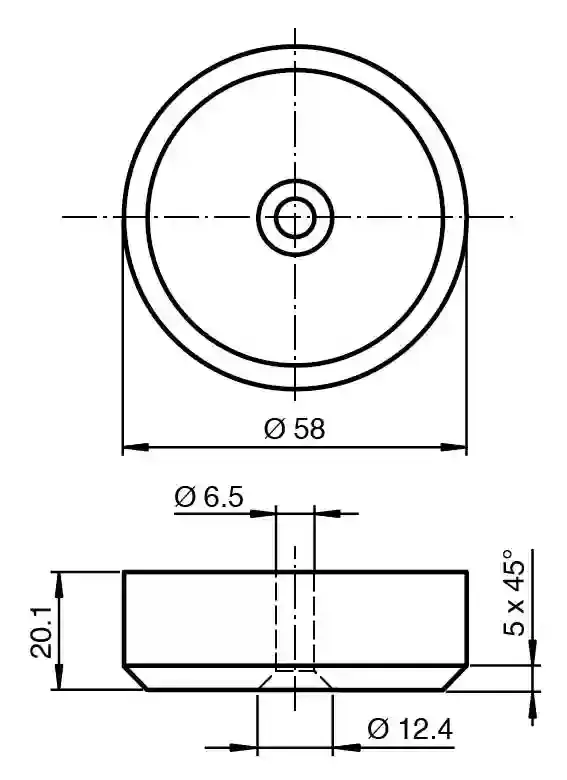

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLI (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years at 55 °C (131 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 … 85 °C (-13 … 185 °F). Storage temperature: -25 … 85 °C (-13 … 185 °F). Degree of protection: IP67. Material: . HousingABSEncapsulation compoundPolyurethane (PUR): . Housing: ABS. Encapsulation compound: Polyurethane (PUR). Installation: . On metalyesIn airyes: . On metal: yes. In air: yes. Dimensions: . Height20.1 mmDiameter58 mm: . Height: 20.1 mm. Diameter: 58 mm. Construction type: Cylindrical
