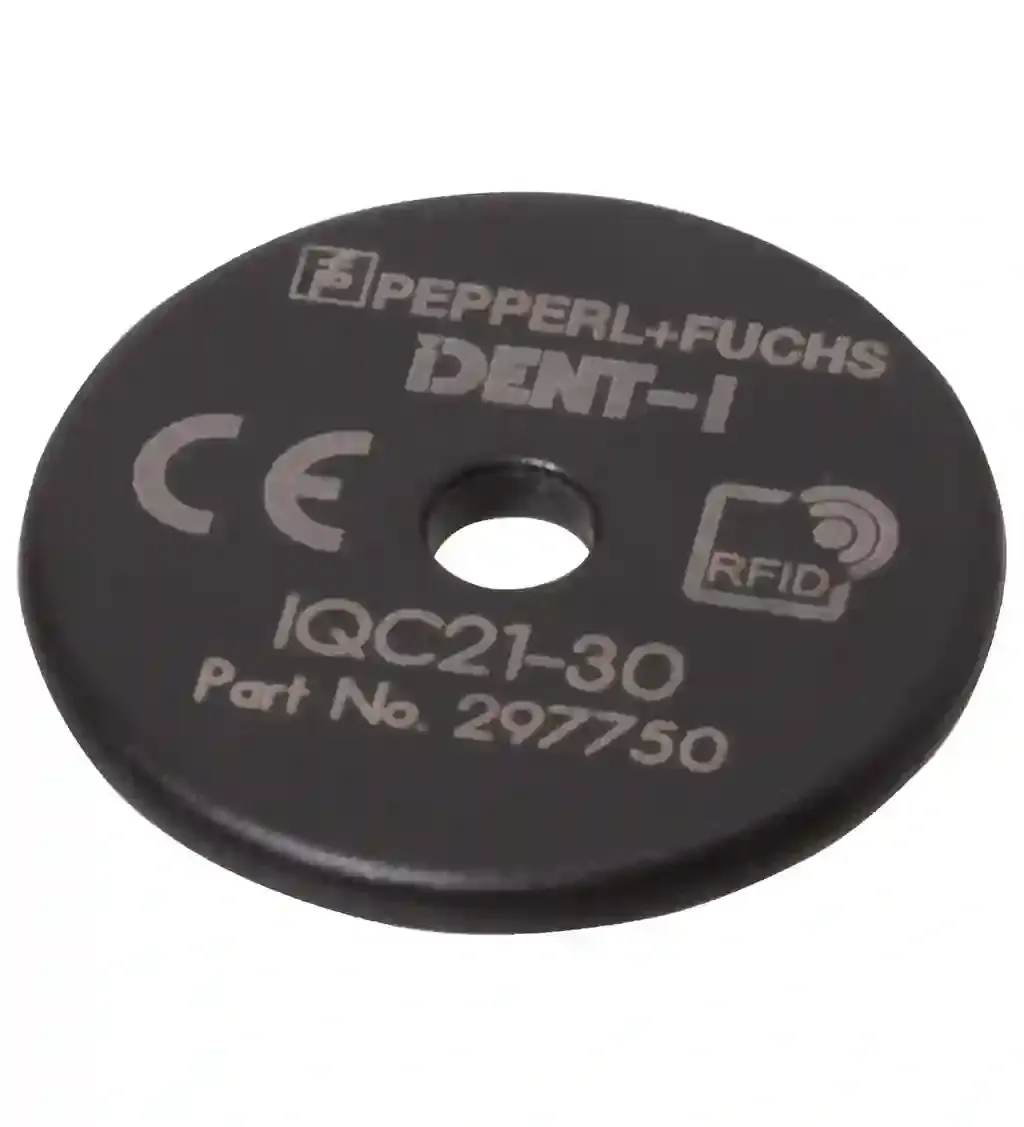

Pepperl Fuchs IQC21-30 25pcs
RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLIX (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: u…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLIX (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: 100000. Data retention period: 50 years. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -40 … 90 °C (-40 … 194 °F). Storage temperature: -40 … 120 °C (-40 … 248 °F) 120 °C (248 °F) for 72 hours. Degree of protection: IP68. Material: . HousingPA9T: . Housing: PA9T. Installation: . In airyes: . In air: yes. Dimensions: . Height3 mmDiameter30 mm: . Height: 3 mm. Diameter: 30 mm. Construction type: Cylindrical. Note: Packaging unit, 25-piece
Specification
General specifications
| Operating frequency | 13.56 MHz |
|---|---|
| Transfer rate | 26 kBit/s |
Memory
| Chip Type | I-CODE SLIX (NXP) |
|---|---|
| EEPROM | 896 Bit |
| UID | 64 Bit |
| Memory organization | 4 bytes/block |
| Read cycles | unlimited |
| Write cycles | 100000 |
| Data retention period | 50 years |
Directive conformity
| Radio equipment | |
|---|---|
| Directive 2014/53/EUEN 300330 | |
| Directive 2014/53/EU | EN 300330 |
| RoHS | |
| Directive 2011/65/EU (RoHS)IEC/EN 63000 | |
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 |
Standard conformity
| Degree of protection | EN 60529 |
|---|---|
| RFID | ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3 |
Ambient conditions
| Ambient temperature | -40 ... 90 °C (-40 ... 194 °F) |
|---|---|
| Storage temperature | -40 ... 120 °C (-40 ... 248 °F) 120 °C (248 °F) for 72 hours |
Mechanical specifications
| Degree of protection | IP68 |
|---|---|
| Material | |
| HousingPA9T | |
| Housing | PA9T |
| Installation | |
| In airyes | |
| In air | yes |

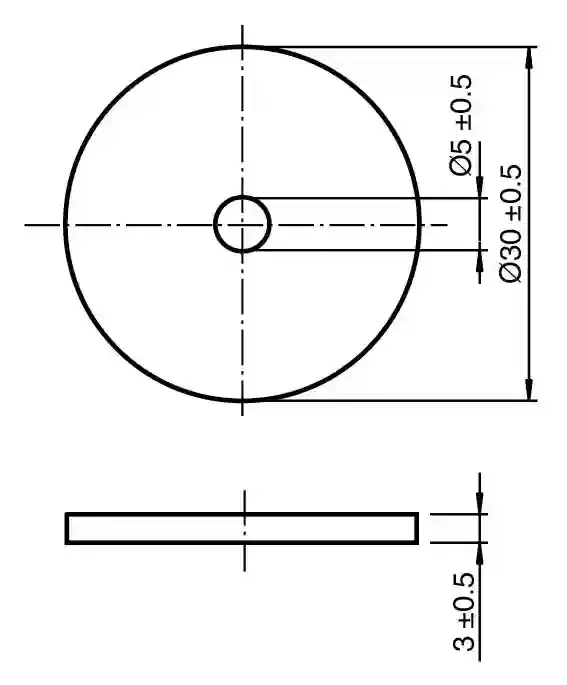

| Dimensions | |
| Height3 mmDiameter30 mm | |
| Height | 3 mm |
| Diameter | 30 mm |
| Construction type | Cylindrical |
| Note | Packaging unit, 25-piece |
