Pepperl Fuchs IPC11-20
RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: Q5 (Atmel). EEPROM: 40 Bit. Read cycles: unlimited. Radio equipment: . Directive 2014/53/EUEN 300330:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: Q5 (Atmel). EEPROM: 40 Bit. Read cycles: unlimited. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 90 °C (-40 … 194 °F) for 1000 hours130 °C (266 °F) for 100 hours. Degree of protection: IP67. Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Installation: . In airyes: . In air: yes. Mass: 0.8 g. Dimensions: . Height2 mmDiameter20 mm: . Height: 2 mm. Diameter: 20 mm. Construction type: Cylindrical
Specification
General specifications
| Operating frequency | 125 kHz |
|---|---|
| Transfer rate | 2 kBit/s |
Memory
| Chip Type | Q5 (Atmel) |
|---|---|
| EEPROM | 40 Bit |
| Read cycles | unlimited |
Directive conformity
| Radio equipment | |
|---|---|
| Directive 2014/53/EUEN 300330 | |
| Directive 2014/53/EU | EN 300330 |
| RoHS | |
| Directive 2011/65/EU (RoHS)IEC/EN 63000 | |
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 |
Standard conformity
| Degree of protection | EN 60529 |
|---|---|
| RFID | ISO/IEC 18000-2 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
|---|---|
| Storage temperature | -40 ... 90 °C (-40 ... 194 °F) for 1000 hours130 °C (266 °F) for 100 hours |
Mechanical specifications
| Degree of protection | IP67 |
|---|---|
| Material | |
| HousingPC (Polycarbonate) | |
| Housing | PC (Polycarbonate) |
| Installation | |
| In airyes | |
| In air | yes |
| Mass | 0.8 g |

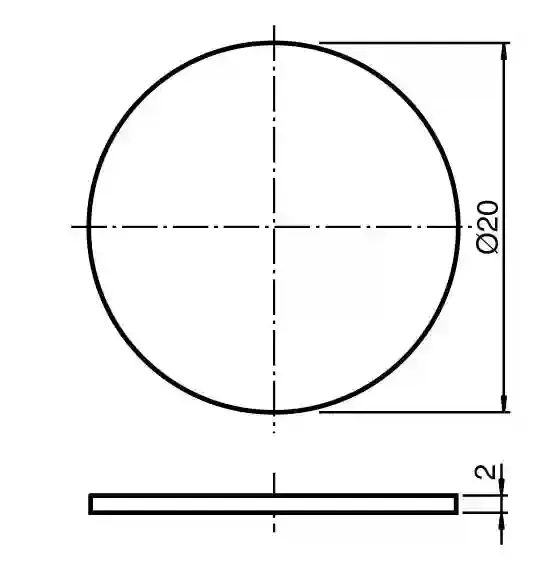

| Dimensions | |
| Height2 mmDiameter20 mm | |
| Height | 2 mm |
| Diameter | 20 mm |
| Construction type | Cylindrical |
