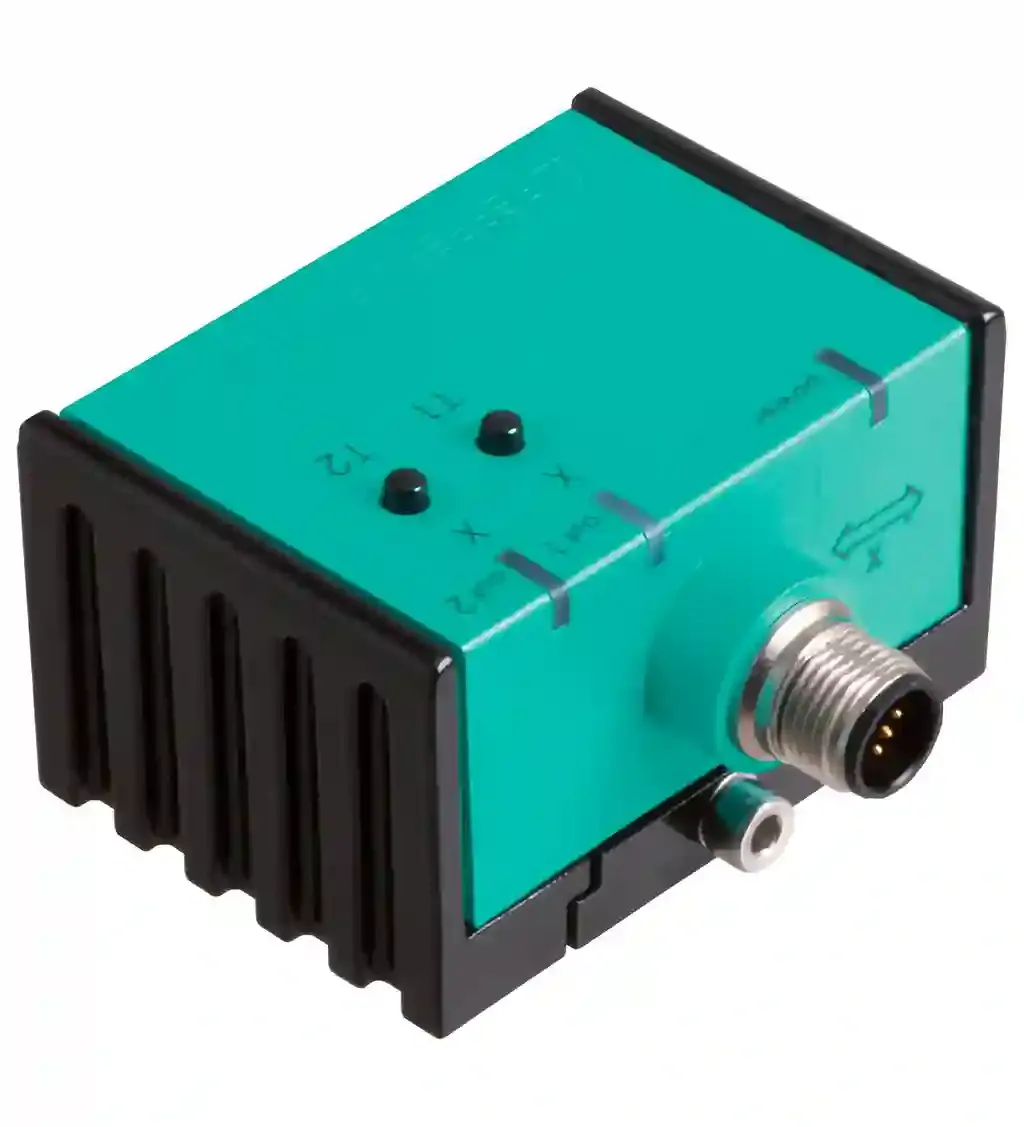

Pepperl Fuchs INX360D-F99-I2E2-V15

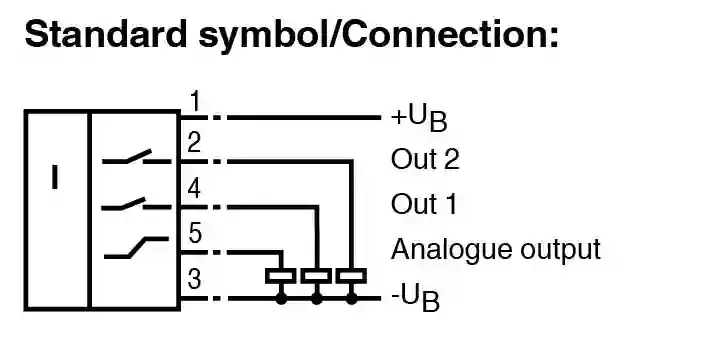

Inclination sensor. E1-Type approval, Measuring range 0 … 360°, Analog output 4 mA … 20 mA, Evaluation limits can be taught-in, 2 programmable switch outputs, High shock resistance, Increased noise immunity 100 V/m. Type: Inclination sensor, 1-axis. Measuring range: 0 … 360 °. Absolute accuracy: ≤ ± 0.5 °. Response delay: ≤ 20 ms. Resolution: ≤ 0.1 °. Repeat accuracy: ≤ ± 0.1 °. Temperature influence: ≤ 0.027 °/K. MTTFd: 300 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED, green. Teach-in indicator: 2 LEDs yellow (switching status), flashing. Button: 2 push-buttons ( Switch points programming , Evaluation range programming ). Switching state: 2 yellow LEDs: Switching status (each output). Operating voltage: 10 … 30 V DC. No-load supply current: ≤ 25 mA. Time delay before availability: ≤ 200 ms. Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected. Operating current: ≤ 100 mA. Voltage drop: ≤ 3 V. Output type: 1 current output 4 … 20 mA. Load resistor: 0 … 200 Ω at UB = 10 … 18 V 0 … 500 Ω at UB = 18 … 30 V. Standard conformity: . Shock and impact resistance100 g according to DIN EN 60068-2-27StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Shock and impact resistance: 100 g according to DIN EN 60068-2-27. Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. E1 Type approval: 10R-04. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: 5-pin, M12 x 1 connector. Housing material: PA. Degree of protection: IP68 / IP69K. Mass: 240 g. Dimensions: . Height37 mmWidth45 mmLength65 mm: . Height: 37 mm. Width: 45 mm. Length: 65 mm. Switching output 1: -30 ° … 30 °. Switching output 2: -30 ° … 30 °. Analog output: -45 ° … 45 °
