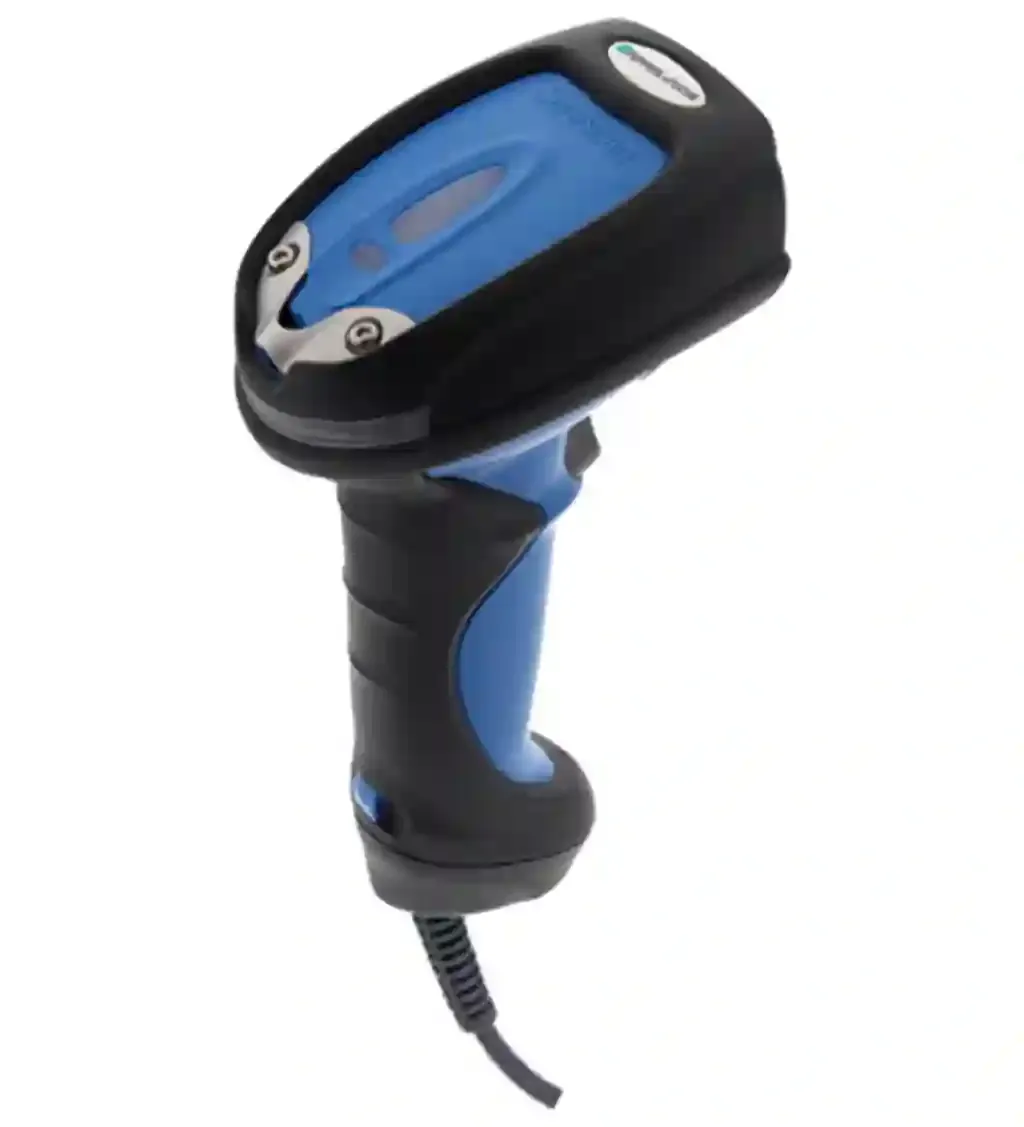

Pepperl Fuchs IDM-Z1-x60-D-*

Corded 1-D and 2-D Handheld Reader for Zone 1/21. Corded 1-D and 2-D Handheld Reader for Zone 1/21, Approved for Zone 1 and 21 (ATEX and IECEx), All 1-D standard barcode families supported, 2-D model supports Data Matrix, QR, and other two-dimensional codes, Fall tested from 2 m to ensure reliability. Type: scan frequency: 500 Hz (1-D models), 60 Hz (2-D model). Light type: LED, visible red light (630 / 1310 nm) ambient light immunity 100 000 lx. Readable codes: barcode types: Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post stacked code types (depending on model selected): PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F 2-D code types (depending on model selected): Data Matrix, QR, MicroQR, Aztec, Maxicode. Read distance: 20 … 850 mm (1-D model) 30 … 400 mm (2-D model). Resolution: ca. ≥ 0.76 mm (1-D models) ca. ≥ 0.13 mm (2-D model). Indicators: 2 x LED (operating state) beeper/buzzer (can be switched off). Interface type: RS-232, RS-422, and USB. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011: . Directive 2014/30/EU: EN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011. Low voltage: EN 60950-1:2006+A1:2010+A2:2013+A11:2009+A12:2011. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012: . Directive 2011/65/EU (RoHS): EN 50581:2012. Operating temperature: -20 … 50 °C (-4 … 122 °F). Storage temperature: -30 … 70 °C (-22 … 158 °F) (1-D model) -40 … 70 °C (-40 … 158 °F) (2-D model). Relative humidity: 95 % non-condensing. Impact resistance: 50 fall tests from 2 m height onto concrete. Degree of protection: IP65. Mass: approx. 200 g without cable. Dimensions: 104 mm x 185 mm x 76 mm. EU-type examination certificate: IBExU 18ATEX1049 IECEx IBE 18.0008. Marking1-D model: II 2G Ex ib IIC T4 Gb [exsign] II 2D Ex ib IIIC T135°C Db2-D model:[exsign] II 2G Ex ib op is IIB T4 Gb [exsign] II 2D Ex ib op is IIIC T135°C Db: . Marking: 1-D model: II 2G Ex ib IIC T4 Gb [exsign] II 2D Ex ib IIIC T135°C Db2-D model:[exsign] II 2G Ex ib op is IIB T4 Gb [exsign] II 2D Ex ib op is IIIC T135°C Db. Directive conformity: . Directive 2014/34/EUEN 60079-0:2018 EN 60079-11:2012 EN 60079-28:2015: . Directive 2014/34/EU: EN 60079-0:2018 EN 60079-11:2012 EN 60079-28:2015. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
