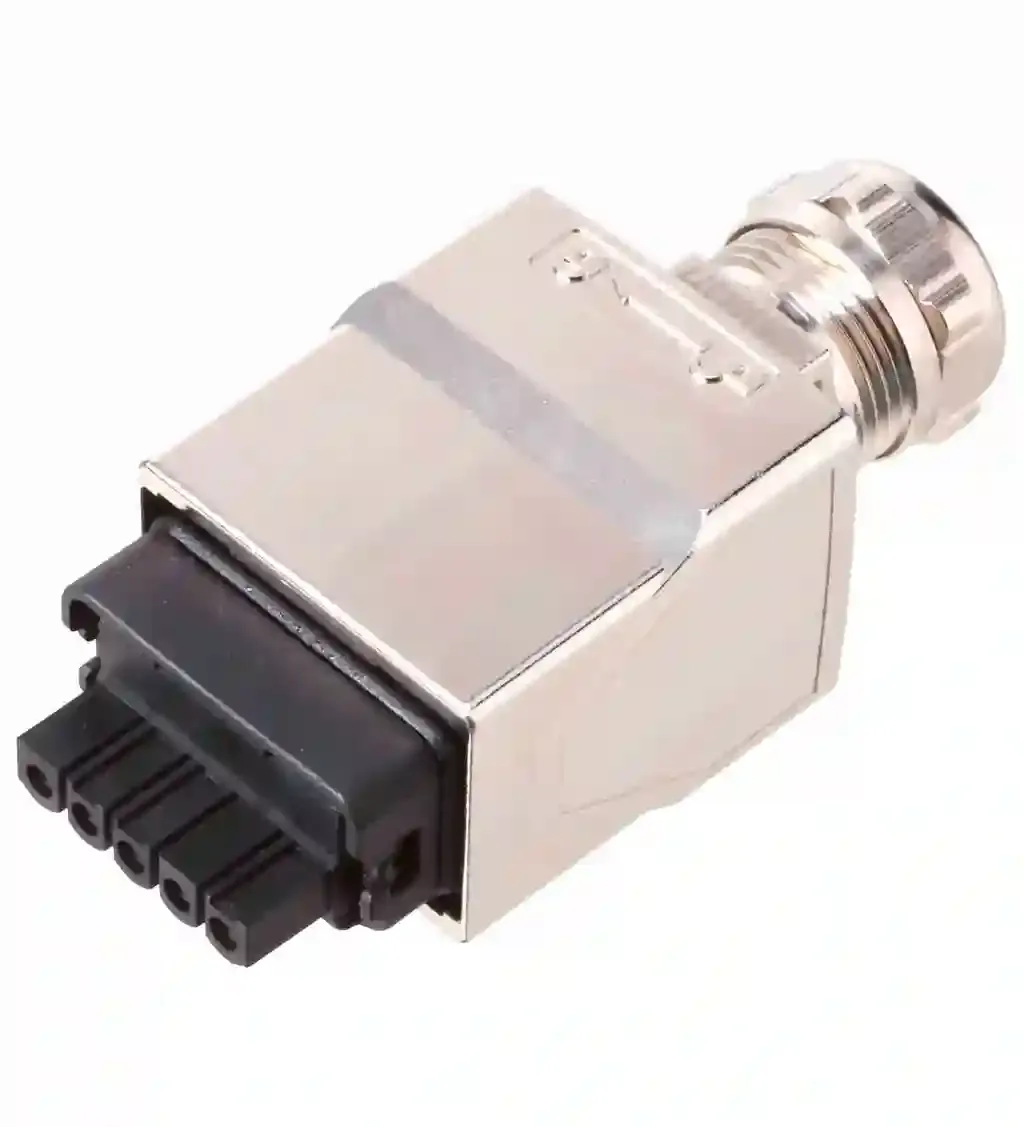

Pepperl Fuchs ICZ-AIDA3-MSTB
Connector. MSTB connector, lockable. Number of pins: 5. Rated current: 16 A. Nominal voltage: 24 V. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connector. MSTB connector, lockable. Number of pins: 5. Rated current: 16 A. Nominal voltage: 24 V. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Degree of protection: IP65. Connection: MSTB. Material: . ContactsCu alloyContact surfaceAuHousingZinc die-casting, nickel-plated: . Contacts: Cu alloy. Contact surface: Au. Housing: Zinc die-casting, nickel-plated. Cable: . Sheath diameter6.5 mm … 9 mmCore diameter0.75 mm² … 2.5 mm²18 … 13 AWG: . Sheath diameter: 6.5 mm … 9 mm. Core diameter: 0.75 mm² … 2.5 mm²18 … 13 AWG. Mass: 108.5 g
Specification
General specifications
| Number of pins | 5 |
|---|
Electrical specifications
| Rated current | 16 A |
|---|---|
| Nominal voltage | 24 V |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
|---|---|
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP65 |
|---|---|
| Connection | MSTB |
| Material | |
| ContactsCu alloyContact surfaceAuHousingZinc die-casting, nickel-plated | |
| Contacts | Cu alloy |
| Contact surface | Au |
| Housing | Zinc die-casting, nickel-plated |
| Cable | |
| Sheath diameter6.5 mm … 9 mmCore diameter0.75 mm² … 2.5 mm²18 … 13 AWG | |
| Sheath diameter | 6.5 mm … 9 mm |
| Core diameter | 0.75 mm² … 2.5 mm²18 … 13 AWG |
| Mass | 108.5 g |
