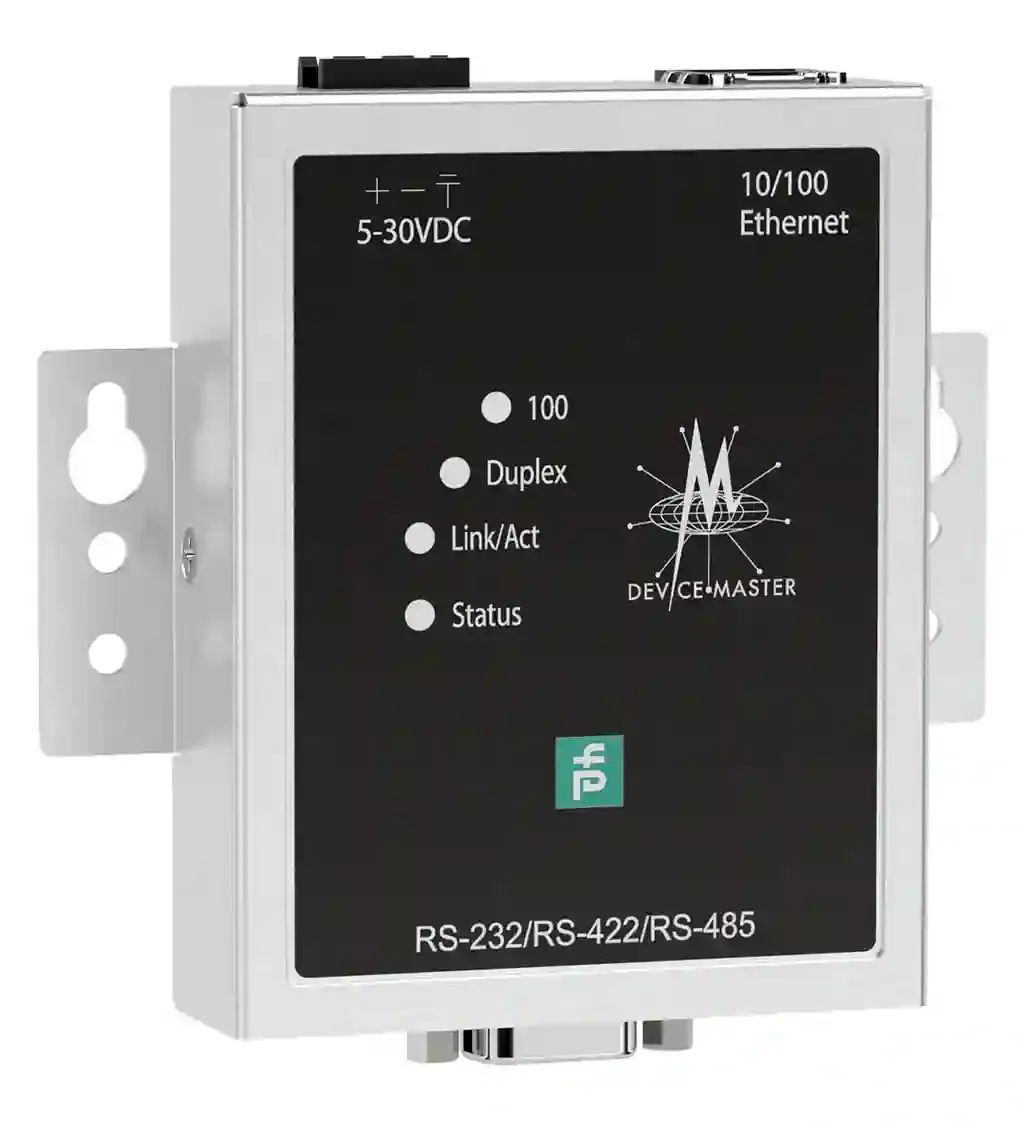

Pepperl Fuchs ICDM-RX/PN1-DB9/RJ45-PM

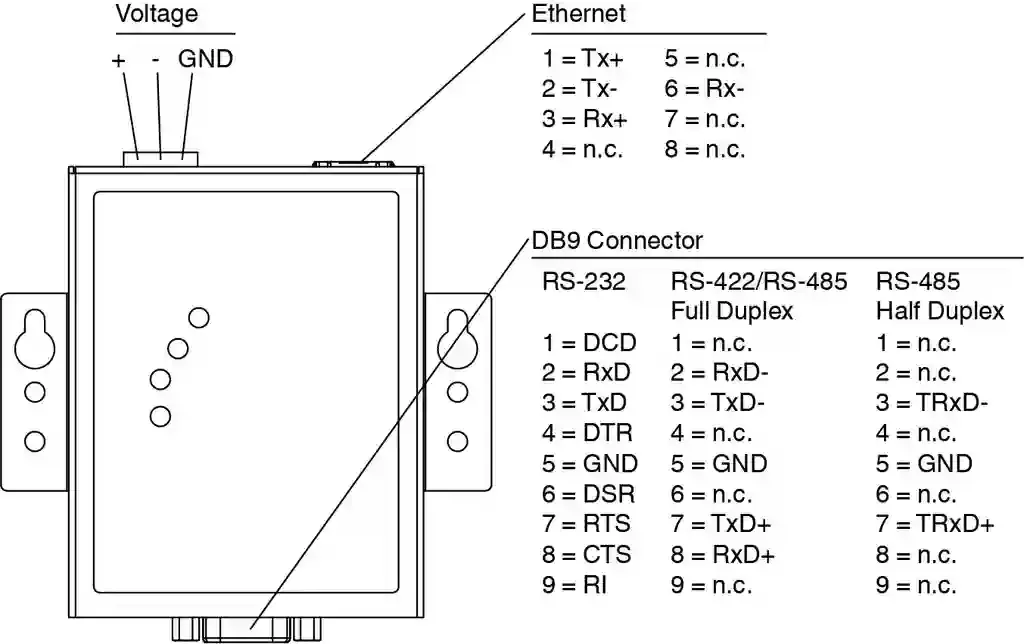

PROFINET IO to Modbus Gateway. PROFINET IO to Modbus Gateway 1-port panel mount DB9. UL File Number: E185802. MTBF: 48.4 a. LED indication: see manual. Rated operating voltage: 5 … 30 V DC. Power consumption: 2.1 W. Nominal voltage: 24 V DC. Current consumption: 50 mA. Interface type: Software selectable interfaces: RS-232 , RS-422 , RS-485 (2 and 4-wire). Physical: 1 x DB9. Protocol: MODBUS RTU. Supported baud rates: 300 bps to 230Kbps. Interface type: Industrial Ethernet. Physical: 1 x RJ45. Protocol: PROFINET IO. Additional protocols: ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission. Transfer rate: 10/100 Mbps. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005 , EN 61000-6-4:2007 + A1:2011: . Directive 2014/30/EU: EN 61000-6-2:2005 , EN 61000-6-4:2007 + A1:2011. RoHS: EN IEC 63000:2018. Electrical safety: CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950. Emitted interference: EN 61000-6-4, EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Noise immunity: EN 61000-6-2. Ambient temperature: -40 … 75 °C (-40 … 167 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: max. 95 %. Altitude: 0 … 3048 m. Degree of protection: IP20. Connection: Power Supply: pluggable screw terminal Fieldbus: 1 x RJ45 Inputs/outputs: 1 x DB9. Material: . Housingstainless steel: . Housing: stainless steel. Mass: 220g. Dimensions: . Height71.1 mmWidth20.3 mmLength91.4 mm: . Height: 71.1 mm. Width: 20.3 mm. Length: 91.4 mm. Construction type: Cabinet module. Mounting: panel mount
