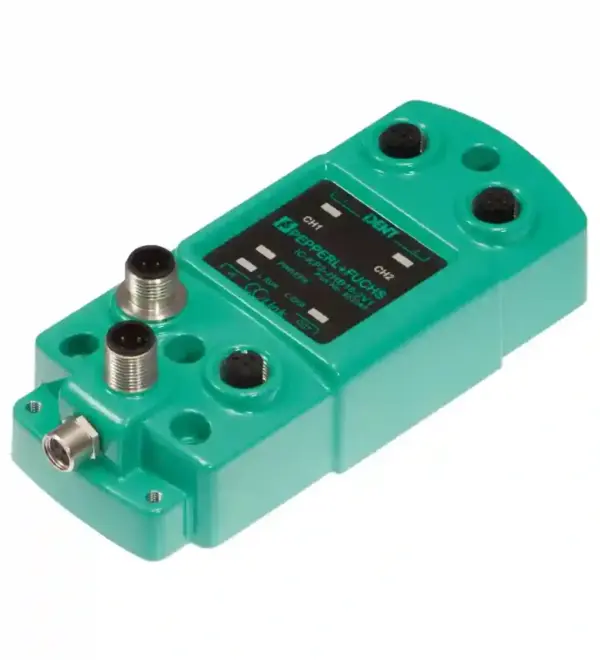

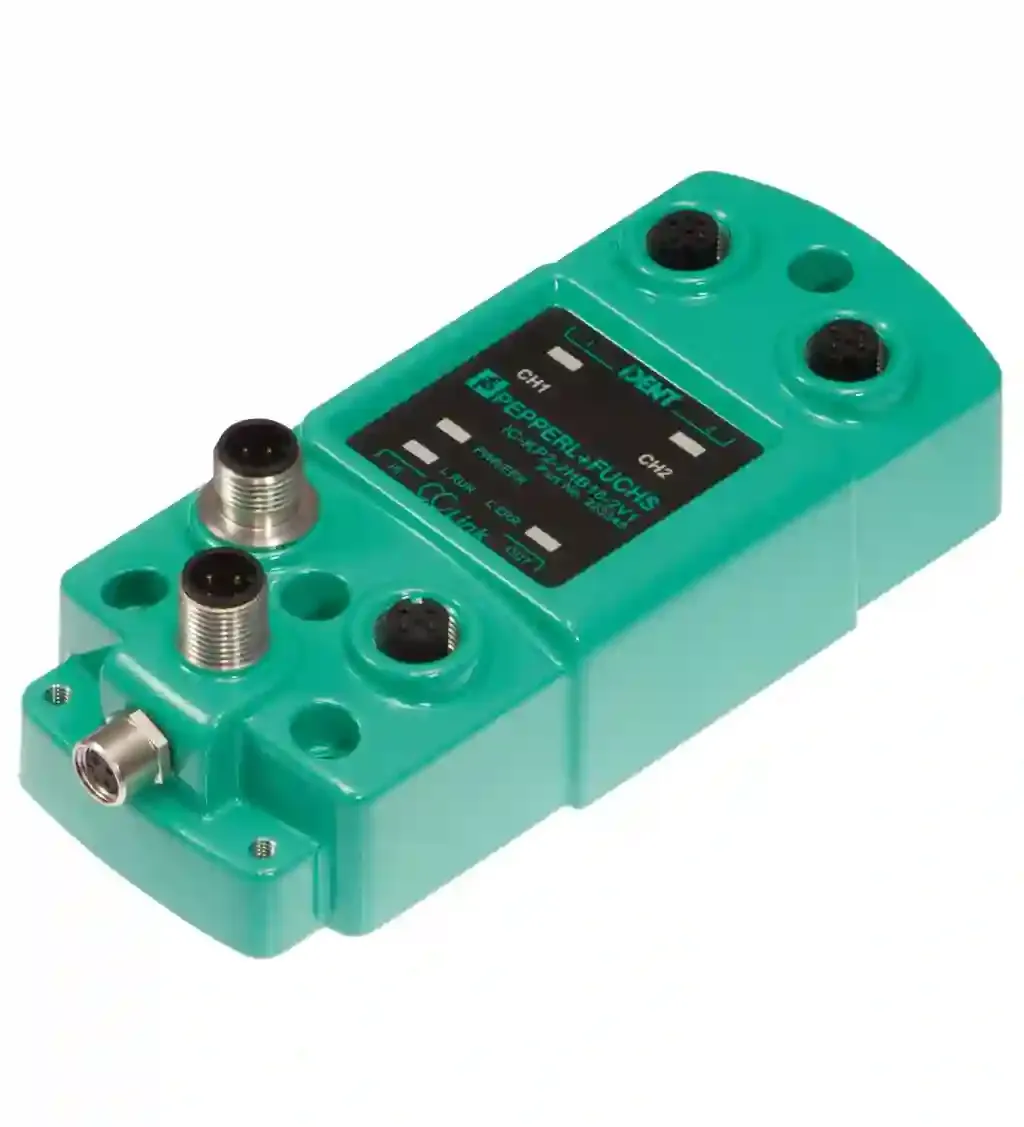

Pepperl Fuchs IC-KP2-2HB18-2V1

RFID evaluation unit. IDENTControl Compact control interface with CC-Link V2 interface. Number of read/write heads: max. 2alternatively 1 read/write head and 1 trigger sensor. UL File Number: E87056. MTBF: 85 a (Operation at +40 °C). LEDs 1, 2: Status indicator for read/write headsgreen: command at read/write head activeyellow: approx. 1 second long, if command was successfully executed. LEDs CH1, CH2: green: read head detectedred: Configuration error. LED PWR/ERR: green: power onred: Hardware fault. LED L RUN: green: on, data communication active. LED L ERR: red: on, invalid rotary switch setting or data transfer failurered: flashing, rotary switch setting changed since last switched on. Rotary switch: Address setting 01 … 64 (decimal)Station no.: 0 … 6 (x10)Station no.: 0 … 9 (x1)Baud rate setting: 0 … 4Extended cyclic setting: 0, 1, 2, 4, 8. Rated operating voltage: 20 … 30 V DC , PELV. Ripple: ≤ 10 % at 30 V DC. Current consumption: ≤ 4 A incl. read/write heads. Power consumption: 3.5 W Without read/write heads. Galvanic isolation: basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff. Interface type: CC-Link. Physical: RS-485. Protocol: CC-Link. Transfer rate: 156; 625 kBit/s 2,5;5;10 Mbit/s. Interface type: Diagnostic Interface. Physical: RS 232. Protocol: ASCII. Transfer rate: 38.4 kBit/s. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2 EN 61000-6-4: . Directive 2014/30/EU: EN 61000-6-2 EN 61000-6-4. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: IEC 60529. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Climatic conditions: air humidity max. 96 % Salt spray resistant to EN 60068-2-52. Shock and impact resistance: Oscillation (Sine): 5 g, 10 – 1000 Hz to EN 60068-2-6Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27. Degree of protection: IP67. Connection: Read/write heads: shielded, 4-pin, M12 connector Power supply: M12 connector Protective earth: M4 earthing screw Diagnostic RS 232: M8 connector CC-Link: M12 connector, A-coded. Material: . Housingpowder coated aluminum: . Housing: powder coated aluminum. Installation: screw fixing. Mass: approx. 300 g. Dimensions: . Height42 mmWidth62 mmLength142 mm: . Height: 42 mm. Width: 62 mm. Length: 142 mm
