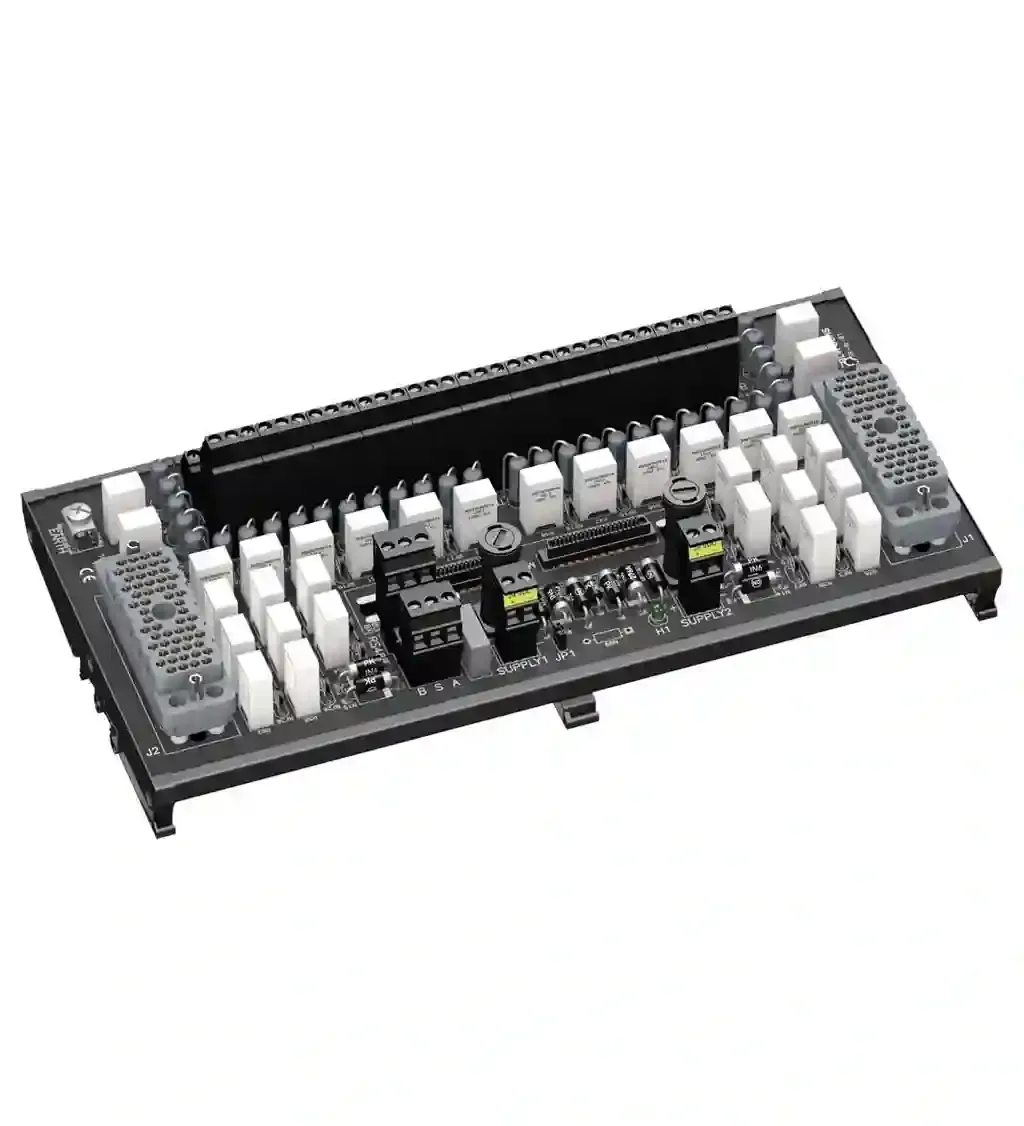

Pepperl Fuchs HiSHPTB/32/TR-AI-01

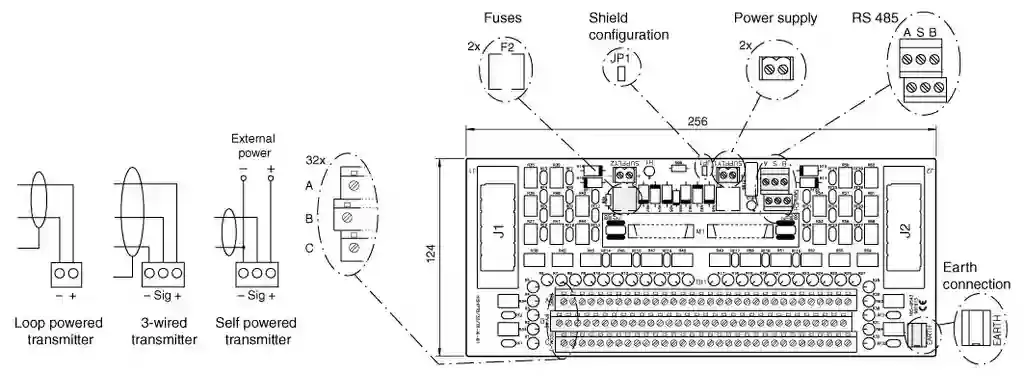

HART Termination Board. Triconex 3700A and 3721 replacement FTA, 2- or 3-wire or self powered transmitters, Outputs: 2 x 16 channels, 0 V … 10 V differential, DC coupled (makes 32 channels), Short-circuit protected, Plug-n-play wiring capabilities, Number of channels: 32 unbalanced signal loops. Rated voltage: 20 … 30 V DC. Fusing: 3.15 A , 5 x 20 mm (0.2 x 0.8 inch). Power dissipation: 0.7 W , with Multiplexer. Reverse polarity protection: yes. HART signal channels: . Number of channels32 unbalanced signal loops: . Number of channels: 32 unbalanced signal loops. Supply: yes. HART signal channels: 30 V DC. Ambient temperature: 0 … 55 °C (32 … 131 °F). Relative humidity: 5 … 90 %, non-condensing. Core cross section: 2.5 mm2 (16 AWG). Connection: field side: screw terminalscontrol side: 56-pin Elco connectorRS 485 interface: removable screw terminalspower: removable screw terminals. Mass: approx. 500 g. Dimensions: 256 x 125 x 208 mm (10 x 4.9 x 8.2 inch) (W x H x D) , depth including module assembly with HiDMux2700. Height125 mmWidth256 mmDepth208 mm: . Height: 125 mm. Width: 256 mm. Depth: 208 mm. Mounting: DIN rail mounting. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
