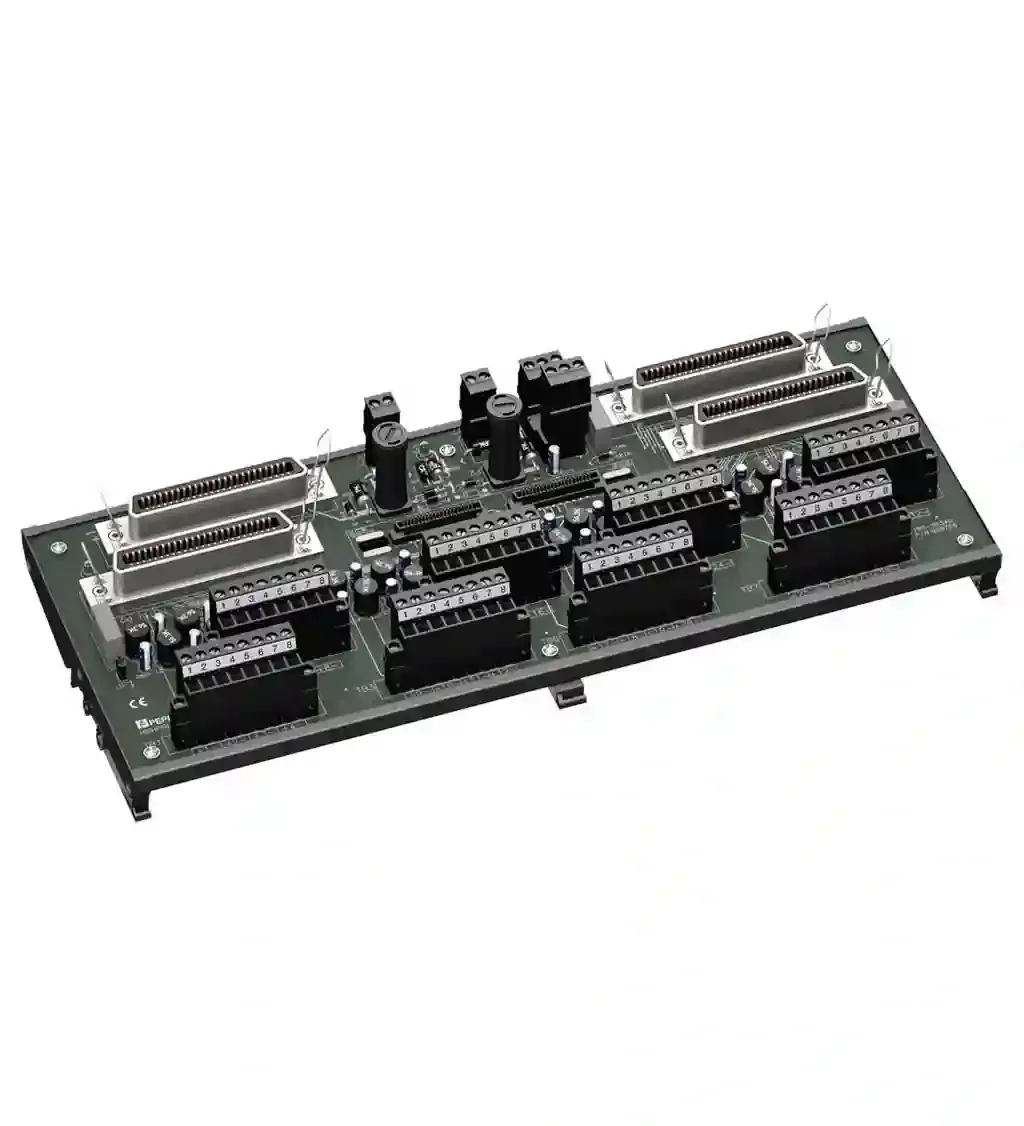

Pepperl Fuchs HiSHPTB/32/HONB-AO-R-01

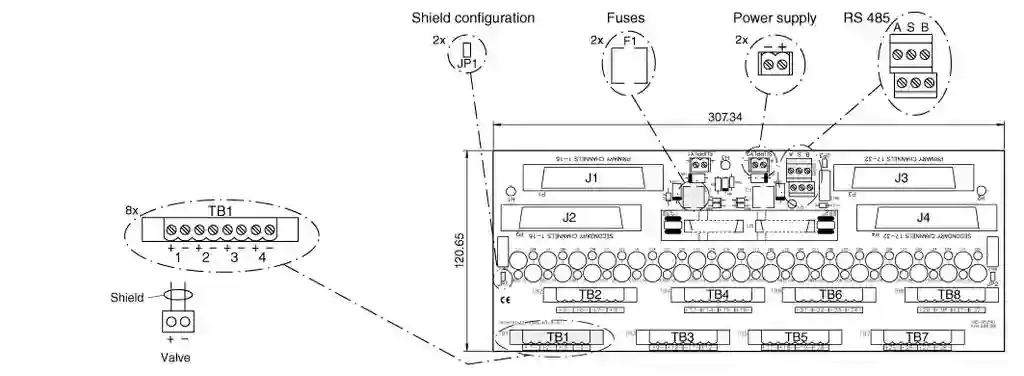

HART Termination Board. TDC 3000 replacement FTA, Short-circuit protected, HART analog output filters, Redundant PCS wirings, Redundant power supply connections, Field terminal blocks that are Honeywell FTA compatible, Honeywell “B” size footprint, Number of channels: 32 unbalanced signal loops. Rated voltage: 24 V DC. Fusing: 315 mA , 5 x 20 mm (0.2 x 0.8 inch). Power dissipation: 0.7 W , with Multiplexer. Reverse polarity protection: yes. HART signal channels: . Number of channels32 unbalanced signal loops: . Number of channels: 32 unbalanced signal loops. Supply: yes. HART signal channels: 30 V DC. Ambient temperature: 0 … 55 °C (32 … 131 °F). Relative humidity: 5 … 90 %, non-condensing. Core cross section: 2.5 mm2 (16 AWG). Connection: field side: 5.08 mm removable screw terminalscontrol side: 50-pin Centronics plugRS-485 interface: 5.08 mm removable screw terminalspower: removable screw terminals. Mass: approx. 500 g. Dimensions: 333 x 127 x 190 mm (13.1 x 5 x 7.5 inch) (W x H x D) , depth including module assembly with HiDMux2700. Height127 mmWidth333 mmDepth190 mm: . Height: 127 mm. Width: 333 mm. Depth: 190 mm. Mounting: DIN rail mounting. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
