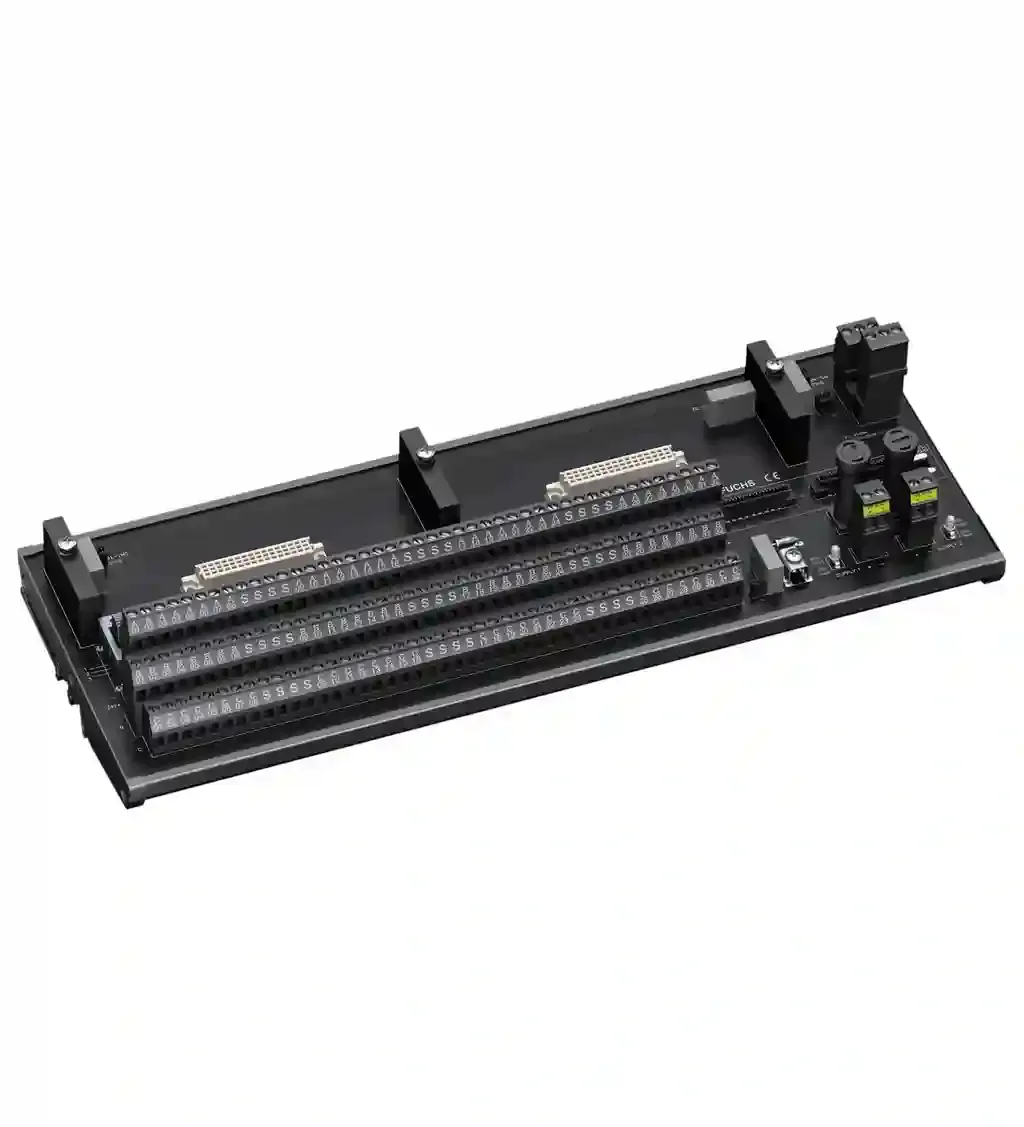

Pepperl Fuchs HiS1132/CON8-H-LTX-02

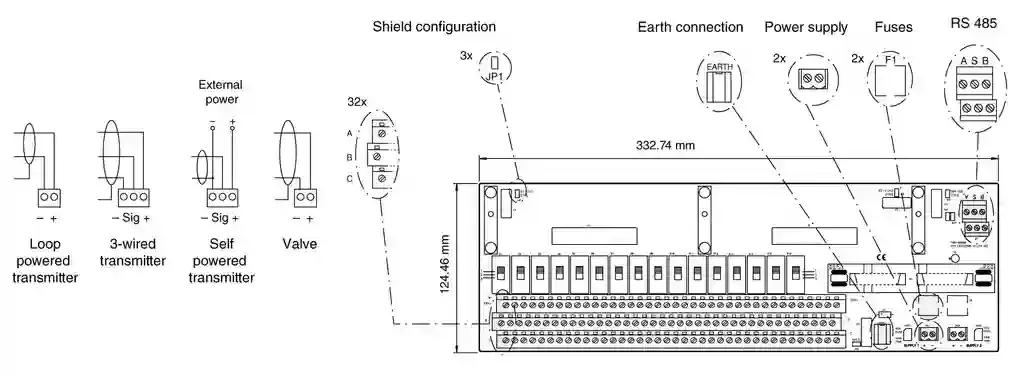

HART Termination Board. APACS/QUADLOG replacement FTA, Bailey Infi 90 replacement FTA, Product connector; PCS wiring, Easy switch selectable configurations for AO and AI, Number of channels: 32 unbalanced signal loops. Rated voltage: 20 … 30 V DC. Fusing: 3.15 A , 5 x 20 mm (0.2 x 0.8 inch). Power dissipation: 0.7 W , with Multiplexer. Reverse polarity protection: yes. HART signal channels: . Number of channels32 unbalanced signal loops: . Number of channels: 32 unbalanced signal loops. Supply: yes. HART signal channels: 30 V DC. Ambient temperature: 0 … 55 °C (32 … 131 °F). Relative humidity: 5 … 90 %, non-condensing. Core cross section: 2.5 mm2 (16 AWG). Connection: field side: fixed screw terminalscontrol side: PCS-specified connectorRS 485 interface: removable screw terminalspower: removable screw terminals. Mass: approx. 700 g. Dimensions: 333 x 125 x 208 mm (13.1 x 4.9 x 8.2 inch) (W x H x D) , depth including module assembly with HiDMux2700. Height125 mmWidth333 mmDepth208 mm: . Height: 125 mm. Width: 333 mm. Depth: 208 mm. Mounting: DIN rail mounting. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
