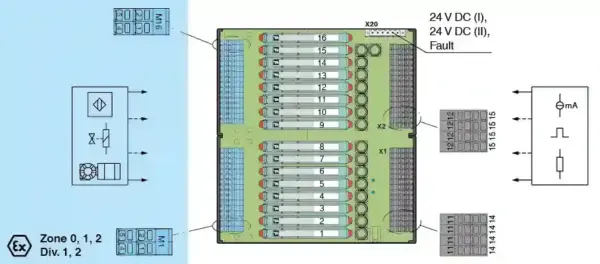

Pepperl Fuchs HiCTB16-UNI-D16SFR-SP-SP

Termination Board. For 16 modules, 24 V DC supply, Supported signal types: DI/DO/AI/TI/AO, Module supply fused separately, Hazardous area: spring terminals, blue, Non-hazardous area: spring terminals, black, Number of modules: 16, Signal type: Universal, Manufacturer: Generic, Control system type: Universal. Connection: X20: terminals 3, 5(+); 4, 6(-). Nominal voltage: 24 V DC , in consideration of rated voltage of used isolators. Voltage drop: 0.9 V , voltage drop across the series diode on the termination board must be considered. Ripple: ≤ 10 %. Fusing: 250 mA per module. Power dissipation: ≤ 500 mW , without modules. Reverse polarity protection: yes. Supply: Redundancy available. The supply for the isolators is decoupled, monitored and fused.. Connection: fault bus (Fault) : X20: terminals 1, 2. Output type: volt-free contact. Switch behaviour: fault bus (Fault)- no fault: relay contact of the fault indication board closed- power supply fault: relay contact of the fault indication board open- module fault: relay contact of the fault indication board open. Contact loading: fault bus (Fault) : 30 V DC , 1 A , see fault indication board. Display elements: LED Supply1 (power supply termination board), green LEDLED Supply2 (power supply termination board), green LED. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2017For further information see system description.. Degree of protection: IEC 60529:2001. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP20. Connection: . Field sideexplosion hazardous area: spring terminals , blueControl sidenon-explosion hazardous area: spring terminals , blackSupplypluggable screw terminals , blackFault outputpluggable screw terminals , black: . Field side: explosion hazardous area: spring terminals , blue. Control side: non-explosion hazardous area: spring terminals , black. Supply: pluggable screw terminals , black. Fault output: pluggable screw terminals , black. Core cross section: screw terminals: 0.25 … 1.5 mm2 (24 … 16 AWG). Material: housing: polycarbonate, 10 % glass fiber reinforced. Mass: approx. 810 g. Dimensions: 216 x 200 x 163 mm (8.5 x 7.9 x 6.42 inch) (W x H x D) , depth including module assembly. Height200 mmWidth216 mmDepth163 mm: . Height: 200 mm. Width: 216 mm. Depth: 163 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: CESI 06 ATEX 022. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Non-hazardous area: . Maximum safe voltage250 V (Attention! Um is no rated voltage.): . Maximum safe voltage: 250 V (Attention! Um is no rated voltage.). Galvanic isolation: . Field circuit/control circuitsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Field circuit/control circuit: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 50303:2000: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 50303:2000. UL approval: E106378. Control drawing116-0327: . Control drawing: 116-0327. IECEx approval: . IECEx certificateIECEx CES 06.0003IECEx marking[Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I: . IECEx certificate: IECEx CES 06.0003. IECEx marking: [Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
