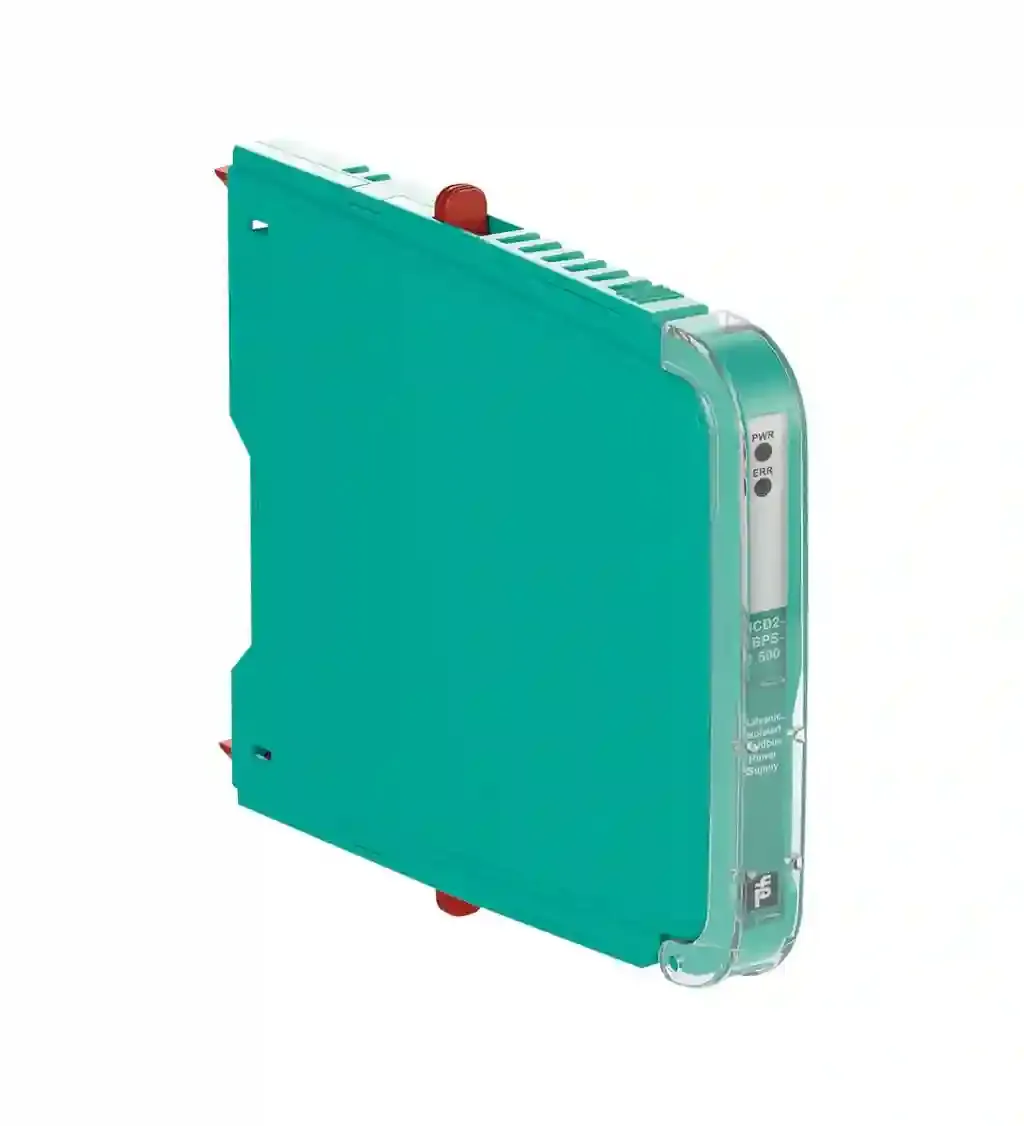

Pepperl Fuchs HCD2-FBPS-1.500

Fieldbus Power Supply. Fieldbus power supply, module for fieldbus power hub, Output: 28 … 30 V/500 mA, High-power trunk for high device count and long cable lengths, With galvanic isolation, Installation in Zone 2/Class I, Div. 2, For FOUNDATION Fieldbus H1 and PROFIBUS PA, IECEx approval, International, Europe, USA, Canada, Device coupler location: non-explosion hazardous areaZone 2 – high-power trunkZone 1 – high-power trunkDivision 2 – high-power trunkDivision 1 – high-power trunk. Design / Mounting: Motherboard based. Installation in hazardous area: Zone 2 / Div. 2. Rated voltage: 19.2 … 35 V DC. Power dissipation: typ. 1.6 W. Rated voltage: 28 … 29.5 V. Rated current: 500 … 10 mA. Short-circuit current: 550 mA. Terminating resistor: motherboard specific. LED ERR: red flashing: short-circuit or undervoltage at output. LED PWR: green if Uout > 28 V. Fieldbus segment/Supply: functional insulation acc. to IEC 62103, rated insulation voltage 250 V AC. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21:2011. Degree of protection: IEC 60529. Fieldbus standard: IEC 61158-2. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: -40 … 70 °C (-40 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: < 95 % non-condensing. Shock resistance: 15 g 11 ms. Vibration resistance: 1 g , 10 … 150 Hz. Pollution degree: max. 2, according to IEC 60664. Corrosion resistance: acc. to ISA-S71.04-1985, severity level G3. Core cross section: motherboard specific. Housing material: Polycarbonate. Degree of protection: IP20. Mass: approx. 150 g. Dimensions: . Height106 mmWidth12.5 mmDepth128 mm: . Height: 106 mm. Width: 12.5 mm. Depth: 128 mm. Mounting: motherboard mounting. Outputs: . VoltageUo30 V: Uo. Voltage: 30 V. Certificate: TÜV 10 ATEX 555761X. Marking II 3G Ex ec IIC T4 Gc: . Marking: II 3G Ex ec IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012. FM approval: . FM certificateFM 19 US 0015 X and FM 19 CA 0011 XApproved forClass I, Division 2, Groups A, B, C, D, T4 / Class I, Zone 2, AEx/Ex ec IIC T4: . FM certificate: FM 19 US 0015 X and FM 19 CA 0011 X. Approved for: Class I, Division 2, Groups A, B, C, D, T4 / Class I, Zone 2, AEx/Ex ec IIC T4. IECEx approval: . IECEx certificateIECEx TUN 13.0037XIECEx markingEx ec IIC T4 Gc: . IECEx certificate: IECEx TUN 13.0037X. IECEx marking: Ex ec IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
