Pepperl Fuchs GL5-T/28a/115

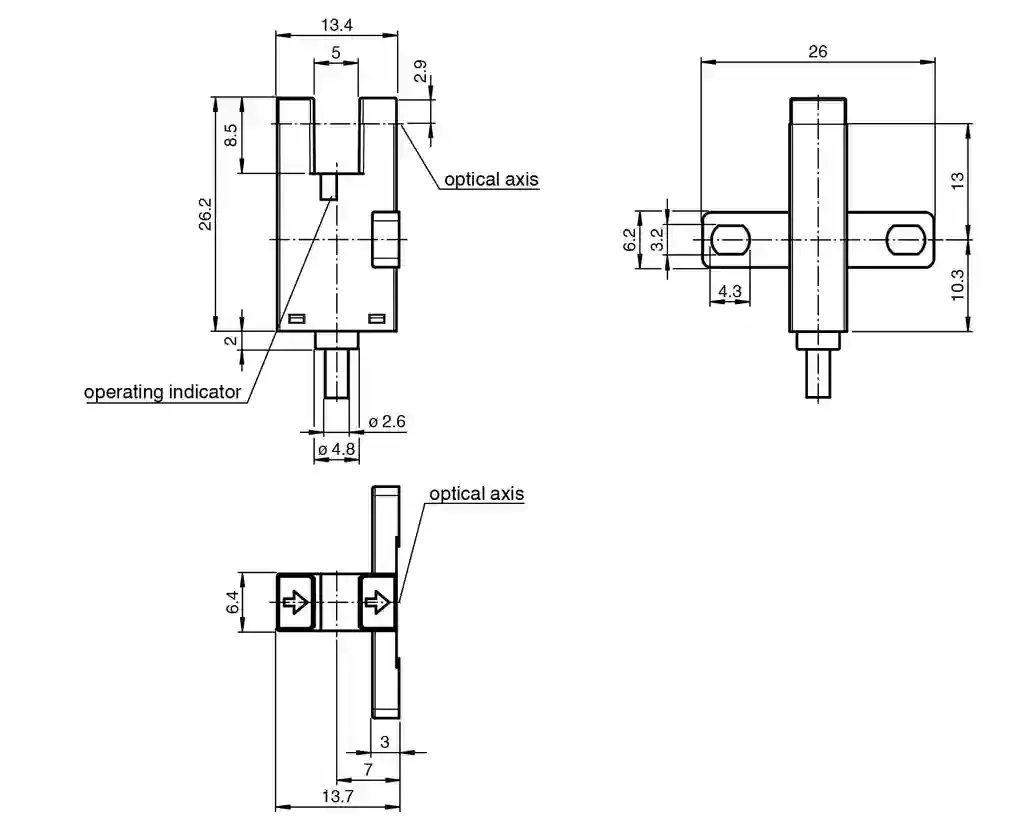

Photoelectric slot sensor. Miniature photoelectric slot sensor for the detection of small parts, T design, fork width 5 mm, infrared light, NPN outputs, fixed cable, Miniature design, Optimized for the detection of small parts, High switching frequency, Simple and fast mounting, Clearly visible LED functional display. Light source: IRED. Light type: Infrared, continuous light , 940 nm. Target size: 0.8 x 1.8 mm. Slot width: 5 mm. Slot depth: 8.5 mm. Ambient light limit: 1000 Lux. MTTFd: 3760 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: red LED lights up when receiving the light beam. Operating voltage: 5 … 24 V DC , class 2. No-load supply current: max. 20 mA. Time delay before availability: < 2 ms. Switching type: light/dark on. Signal output: 2 NPN complementary , overvoltage protected. Switching voltage: max. 30 V DC. Switching current: max. 50 mA , resistive load. Voltage drop: max. 0.2 V at 10 mA max. 0.6 V at 50 mA. Switching frequency: max. 5 kHz. Response time: 40 µs Light beam is not interrupted 80 µs Light beam is interrupted. Repeat accuracy: 0.03 mm. Directive conformity: . EMC Directive 2004/108/ECEN 60947-5-2:2007+A1:2012: . EMC Directive 2004/108/EC: EN 60947-5-2:2007+A1:2012. Standard conformity: . StandardsUL 60947-5-2: . Standards: UL 60947-5-2. UL approval: cULus Recognized, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 55 °C (-13 … 131 °F). Storage temperature: -30 … 80 °C (-22 … 176 °F). Pollution degree: 2. Degree of protection: IP50. Connection: 2 m cable , 4 x 0.08 mm2 , PVC. Material: . HousingPBT: . Housing: PBT. Mass: 25 g. Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height13.4 mmWidth26 mmLength26.2 mm: . Height: 13.4 mm. Width: 26 mm. Length: 26.2 mm. Cable length: 2 m
