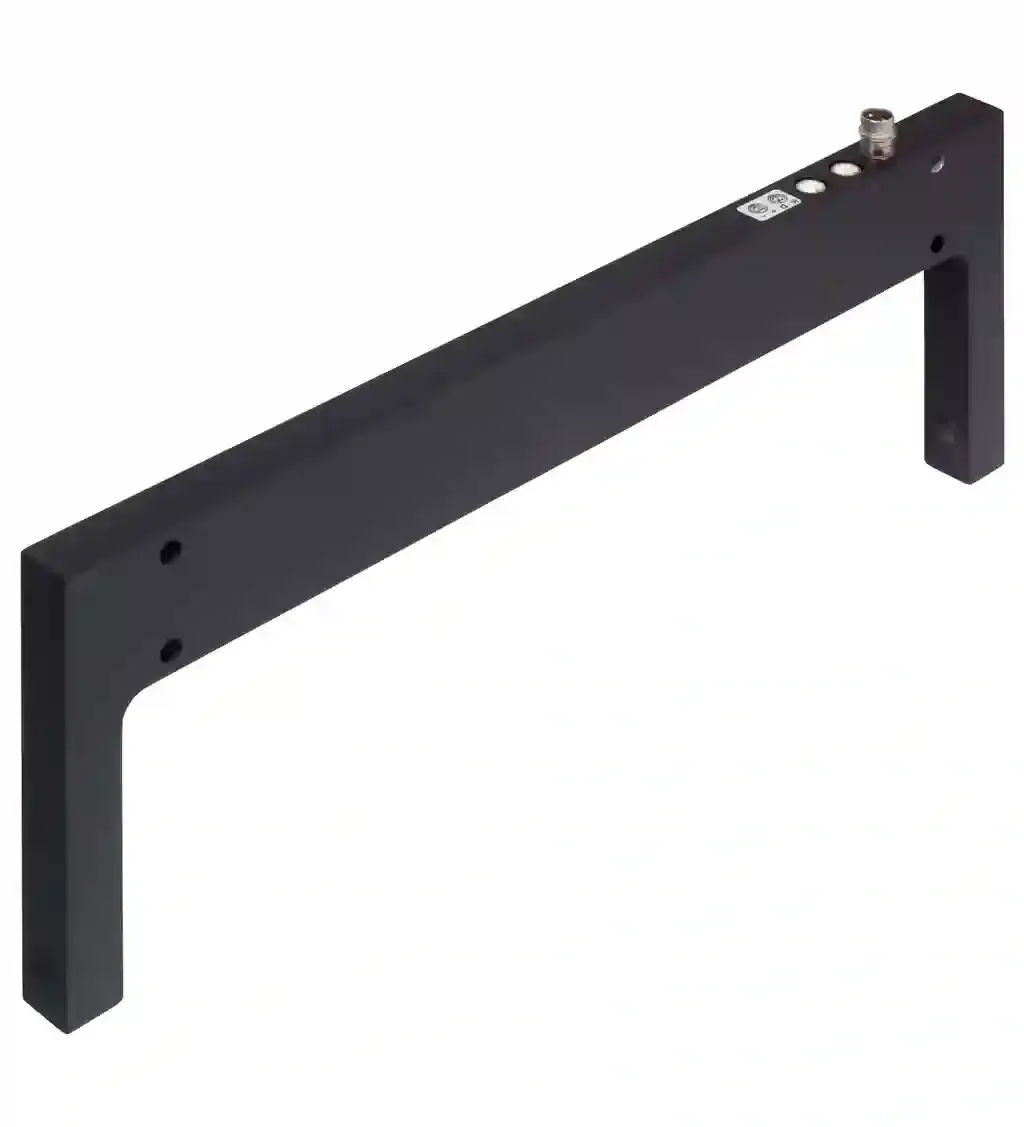

Pepperl Fuchs GL220-RT/30/40a/98a

Photoelectric slot sensor. Photoelectric slot sensor, aluminum housing, 220 mm slot width, red light, light/dark on, sensitivity adjuster, DC version, NPN output, 3-pin M8 plug, Optimized for the detection of small parts, High switching frequency, Multiple device installation possible, no mutual interference (no cross-talk), Sensitivity adjuster and light-on/dark-on changeover switch as standard features of this series, Visible red light. Light source: LED. Light type: modulated visible red light. Target size: 0.5 mm. Slot width: 220 mm. Slot depth: 60 mm. Ambient light limit: 100000 Lux. MTTFd: 1290 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED red in connector. Control elements: Sensitivity adjuster, light/dark switch. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: ≤ 15 mA. Switching type: light/dark on. Signal output: 1 NPN, short-circuit protected open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Repeat accuracy: 0.05 mm. Switching frequency: 3 kHz. Response time: ≤ 160 µs. Product standard: EN 60947-5-2. CE conformity: CE. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Storage temperature: -20 … 75 °C (-4 … 167 °F). Degree of protection: IP67. Connection: M8 connector, 3-pin. Material: . Housingblack anodized aluminumOptical faceglass: . Housing: black anodized aluminum. Optical face: glass. Mass: 240 g. Dimensions: . Height244 mmWidth12 mmLength90 mm: . Height: 244 mm. Width: 12 mm. Length: 90 mm
