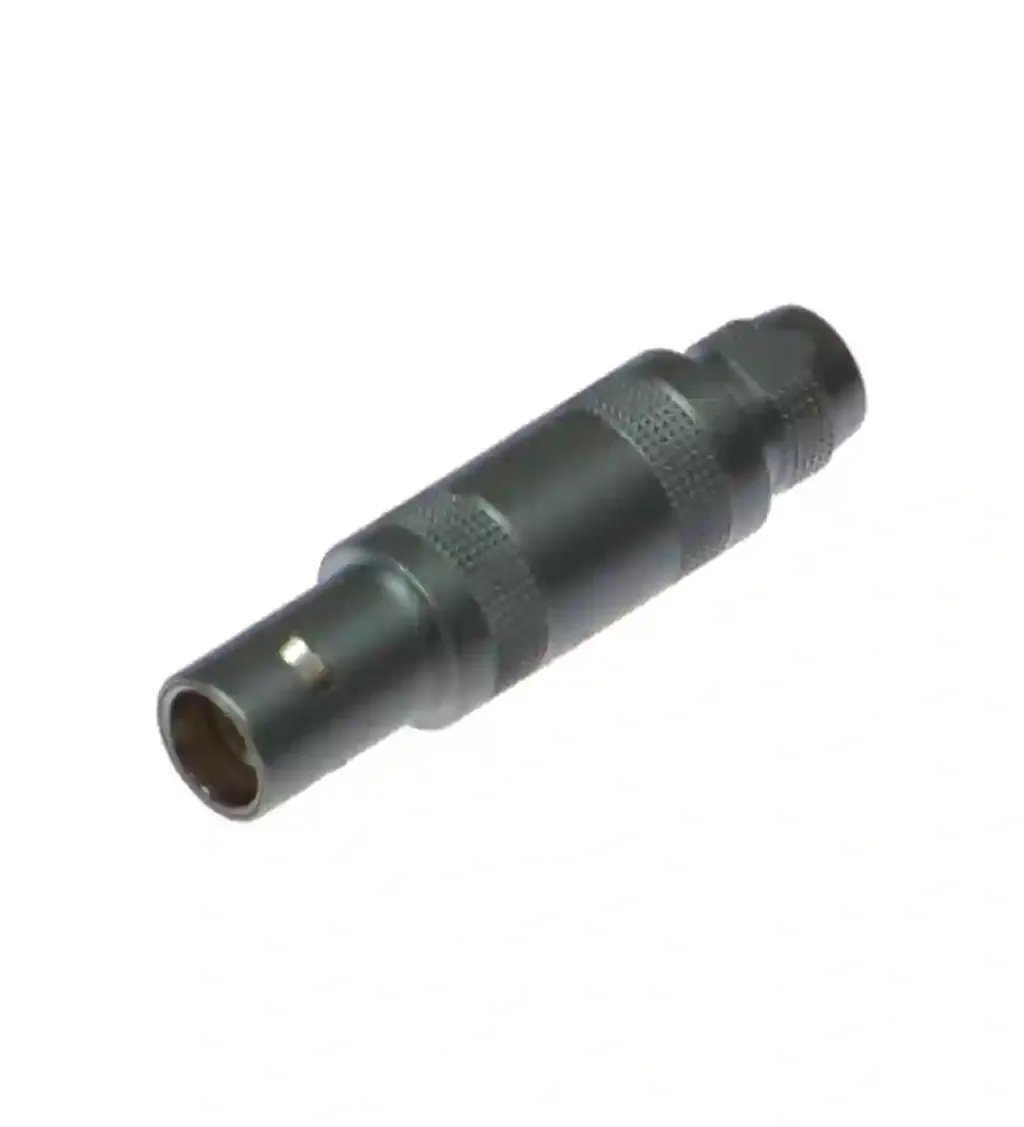

Pepperl Fuchs FFA 0S 302 CLAL 42
Female cordset, field attachable. Female cordset, field attachable. Number of pins: 2. Construction type: Socket, straight. Test voltage: 1500 V eff. Operating current: max. 10 A. Ambient temperature:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female cordset, field attachable. Female cordset, field attachable. Number of pins: 2. Construction type: Socket, straight. Test voltage: 1500 V eff. Operating current: max. 10 A. Ambient temperature: -55 … 250 °C (-67 … 482 °F). Degree of protection: IP50. Material: . Contact surfacebrass, nickel-platedBodychromium plated brass: . Contact surface: brass, nickel-plated. Body: chromium plated brass. Cable: . Sheath diameter3.3 … 4.1 mmCore diametermax. 0.34 mm / 22 AWG: . Sheath diameter: 3.3 … 4.1 mm. Core diameter: max. 0.34 mm / 22 AWG
Specification
General specifications
| Number of pins | 2 |
|---|---|
| Construction type | Socket, straight |
Electrical specifications
| Test voltage | 1500 V eff |
|---|---|
| Operating current | max. 10 A |
Ambient conditions
| Ambient temperature | -55 ... 250 °C (-67 ... 482 °F) |
|---|
Mechanical specifications
| Degree of protection | IP50 |
|---|---|
| Material | |
| Contact surfacebrass, nickel-platedBodychromium plated brass | |
| Contact surface | brass, nickel-plated |
| Body | chromium plated brass |
| Cable | |
| Sheath diameter3.3 ... 4.1 mmCore diametermax. 0.34 mm / 22 AWG | |
| Sheath diameter | 3.3 ... 4.1 mm |
| Core diameter | max. 0.34 mm / 22 AWG |
