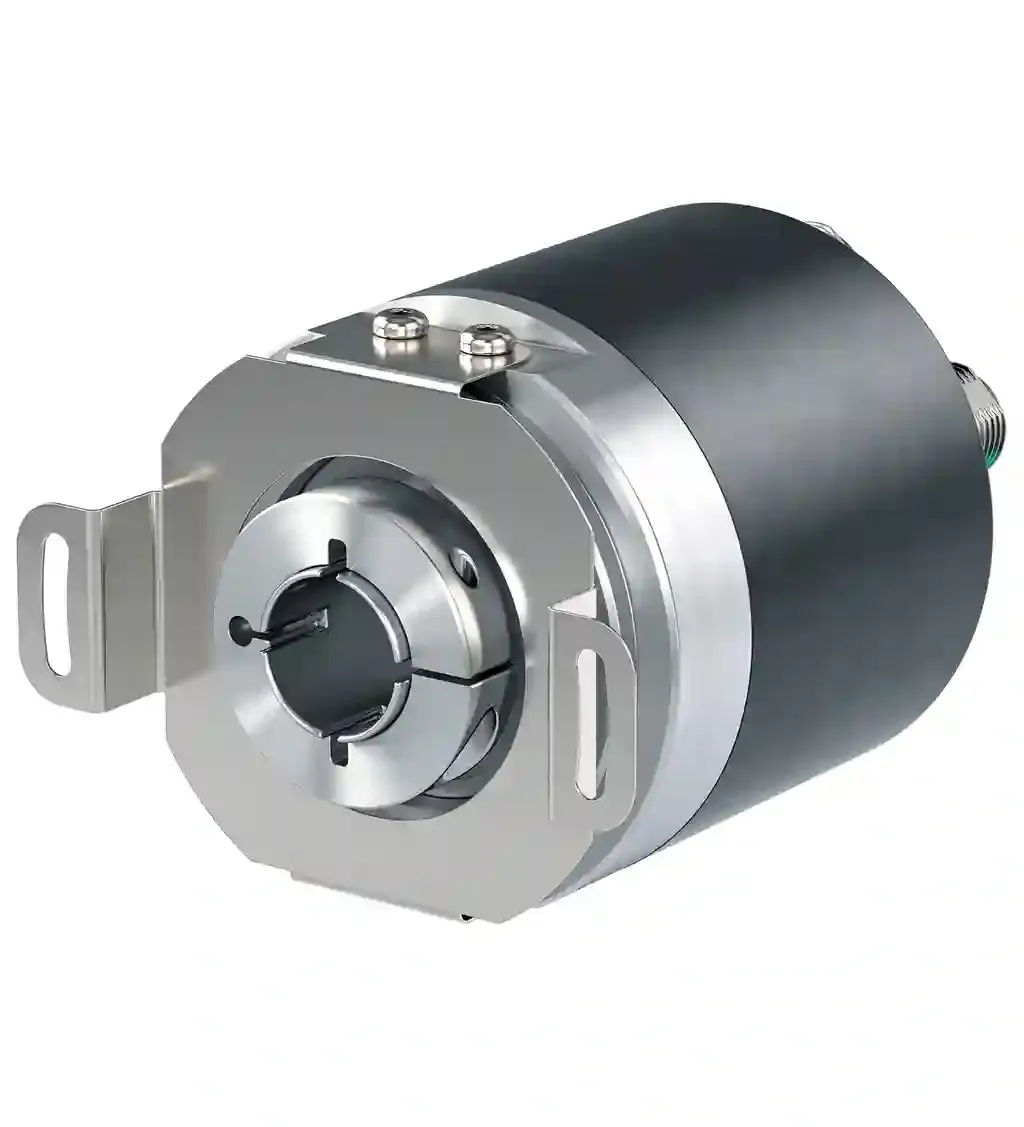

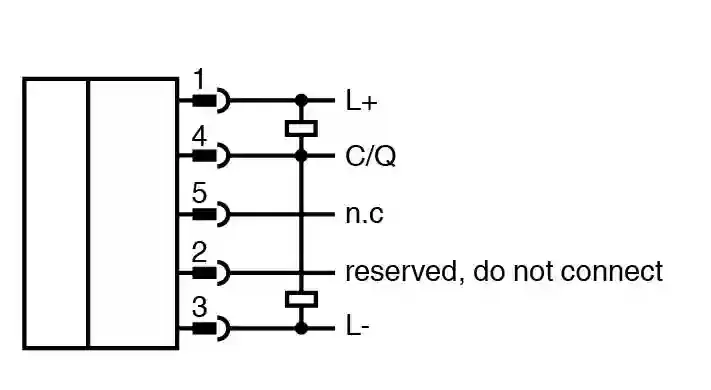

Pepperl Fuchs ENA58TL-R***-IO-Link

Absolute rotary encoder. Absolute rotary encoder of the innovative Pure Line, Recessed hollow shaft, IO-Link Interface for process data, parameterization and diagnosis, Suitable for condition monitoring, Measuring range, direction of rotation and switching signals programmable, Enclosure type: 58 mm, Type of shaft: Recessed hollow shaft, Interface: IO-Link, Detection type: magnetic sampling, Interface type: IO-Link. Detection type: magnetic sampling. Device type: Absolute rotary encoder as Pure Line. Measured variable: position Temperature. Linearity error: ≤ ± 0.1 °. UL File Number: E223176 “For use in NFPA 79 Applications only” , if UL marking is marked on the product.. MTTFd: 566 a at 40 °C. Mission Time (TM): 20 a. L10: 5 E+8 revolutions at 24/198 N axial/radial shaft load. Diagnostic Coverage (DC): 0 %. LED STATUS: LED green flashing with short break (1 Hz) – IO-Link mode. Operating voltage: 18 … 30 V DC. No-load supply current: max. 50 mA. Power consumption: approx. 1.5 W. Time delay before availability: < 1 s. Interface type: IO-Link. IO-Link revision: 1.1. Device profile: Identification and Diagnosis – I&D. Resolution: . Single turnup to 16 Bit programmableMultiturnup to 15 Bit programmableOverall resolutionup to 31 Bit programmable: . Single turn: up to 16 Bit programmable. Multiturn: up to 15 Bit programmable. Overall resolution: up to 31 Bit programmable. Process data: Input 12 Byte – measurement value 4 Byte – resolution 16 Bit – auxiliary mesurement value 4 Byte – switching signals 2 Bit – diagnosis signals 2 Bit – status data. Vendor ID: 1 (0x0001). Device ID: 5243905 (0x500401), 5243906 (0x500402), 5243909 (0x500405), 5243910 (0x500406). Transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 1.5 ms. SIO mode support: no. Compatible master port type: Class A Class B (use 3-pole adapter or 3-wire cable). Connector: M12 connector, 5 pin , A-coded. Degree of protection: DIN EN 60529, IP65, IP67. Communication interface: IEC 61131-9 / IO-Link V1.1.2. Climatic testing: DIN EN 60068-2-78, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 … 1000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product.. Operating temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: 98 % , no moisture condensation. Material: . HousingZinc plated steel, paintedFlangeAluminumShaftStainless steel: . Housing: Zinc plated steel, painted. Flange: Aluminum. Shaft: Stainless steel. Mass: approx. 370 g. Rotational speed: max. 12000 min -1. Moment of inertia: < 30 gcm2. Starting torque: < 3 Ncm. Shaft load: . Axial24 NRadial198 NAngle offset± 0.9 °Axial offset± 0.3 mm static; ± 0,1 mm dynamicRadial offset± 0.5 mm static; &plusmn 0,2 mm dynamic: . Axial: 24 N. Radial: 198 N. Angle offset: ± 0.9 °. Axial offset: ± 0.3 mm static; ± 0,1 mm dynamic. Radial offset: ± 0.5 mm static; &plusmn 0,2 mm dynamic
